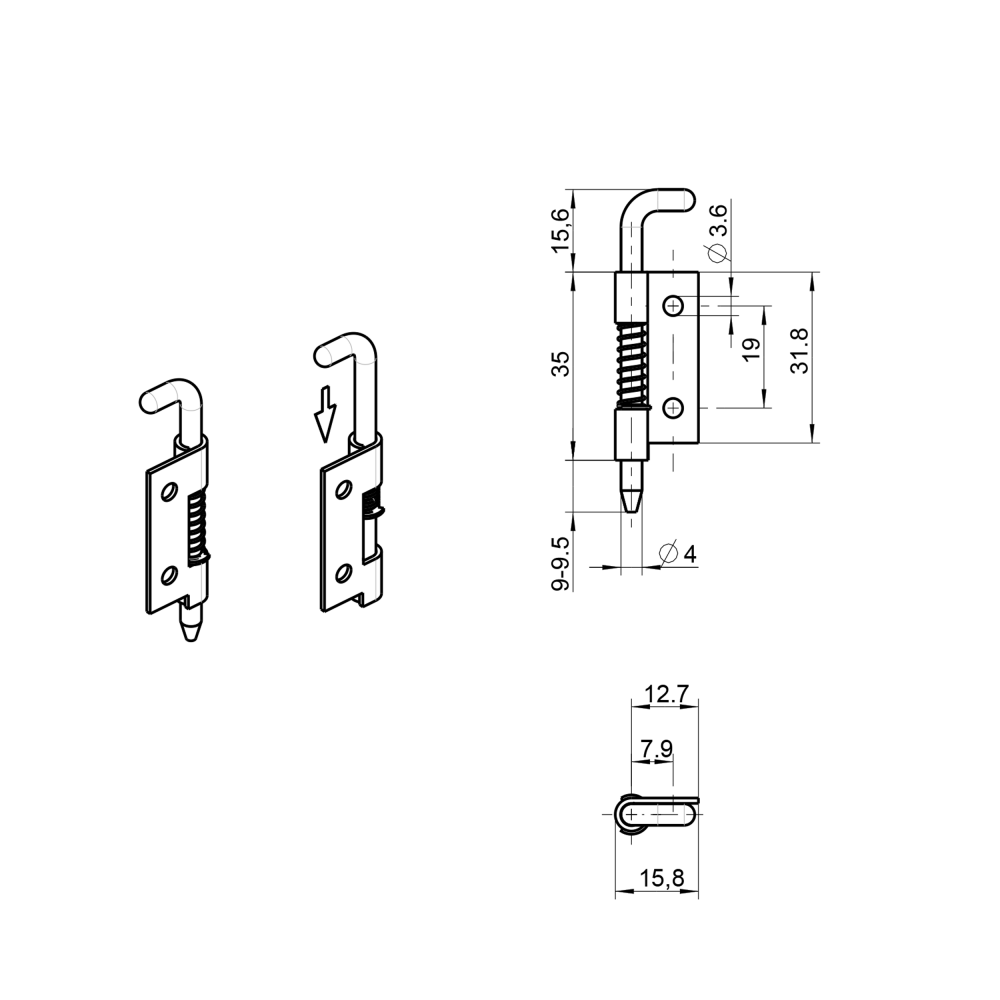

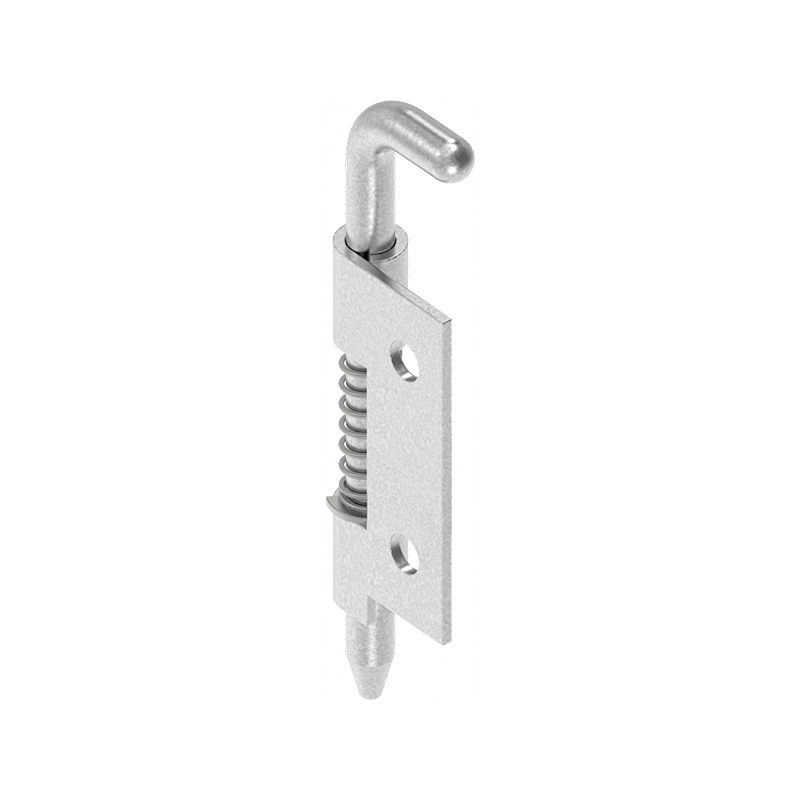

Cabinet hinge, steel, prominent door - concealed, loose pin, L=35, B=15,8, H=6,2
MT103230
Cabinet Hinge in steel for mounting as prominent door - concealed. The hinge has a loose pin. Special products can be delivered on request, if the standard range does not cover the requirements.
Pin type
Loose
Hinge side
Left
Material type
Steel
Surface finish
Electro zinc plated
Type
Prominent door - concealed
Height in mm
6.2
Length in mm
35
Long description
Cabinet Hinge in steel for mounting as prominent door - concealed. The hinge has a loose pin. Special products can be delivered on request, if the standard range does not cover the requirements.
