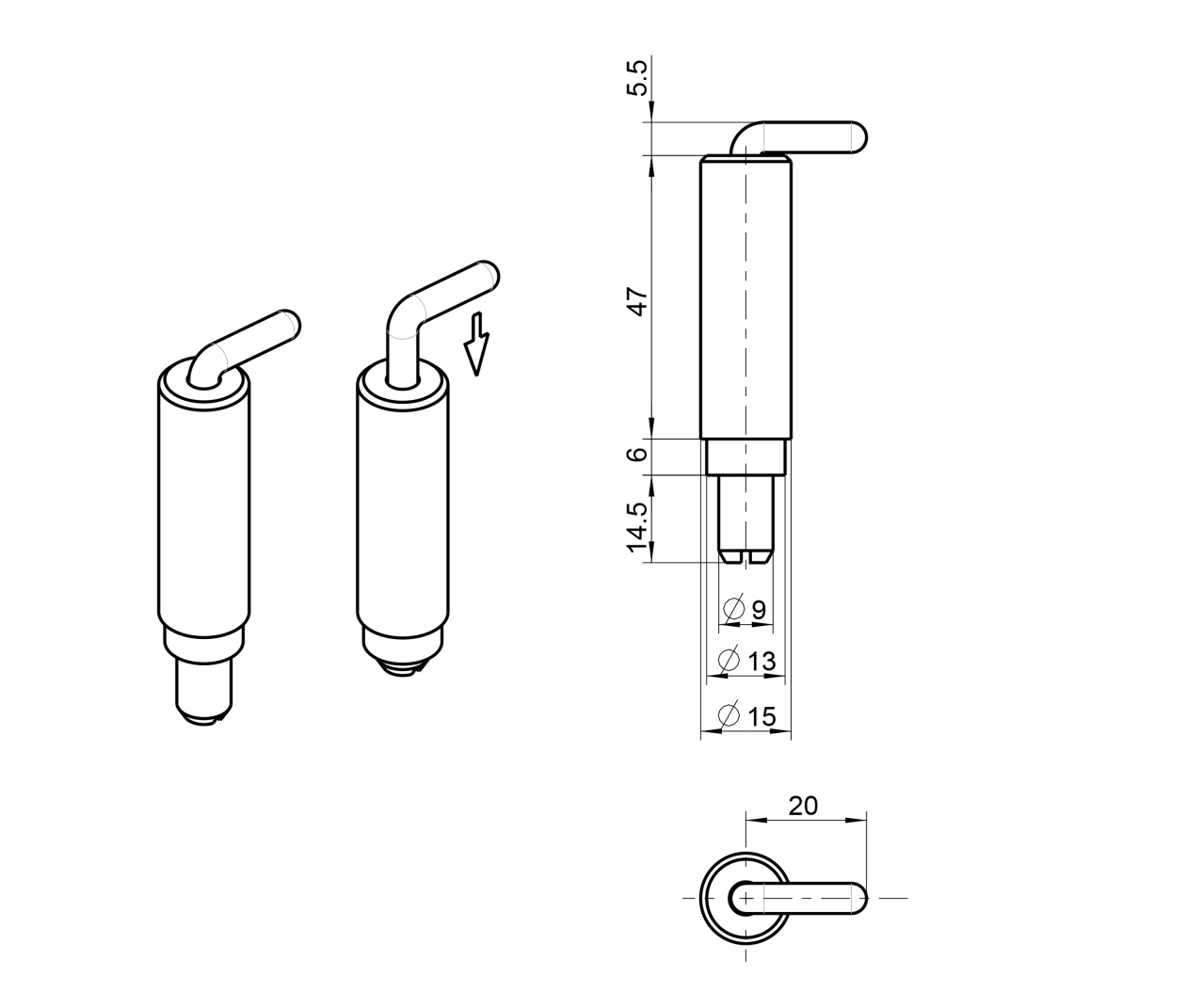

Cabinet hinge, steel, prominent door - concealed, loose pin, L=47, B=15, H=15
MT103228
Cabinet Hinge in steel for mounting as prominent door - concealed. The hinge has a loose pin. Surface treatment of the pin is electro zinc plated. Special products can be delivered on request, if the standard range does not cover the requirements.
Pin type
Loose
Material type
Steel
Surface finish
Electro zinc plated and untreated
Type
Prominent door - concealed
Height in mm
15
Length in mm
47
Plate thickness max.
6
Thickness in mm
0
Long description
Cabinet Hinge in steel for mounting as prominent door - concealed. The hinge has a loose pin. Surface treatment of the pin is electro zinc plated. Special products can be delivered on request, if the standard range does not cover the requirements.
