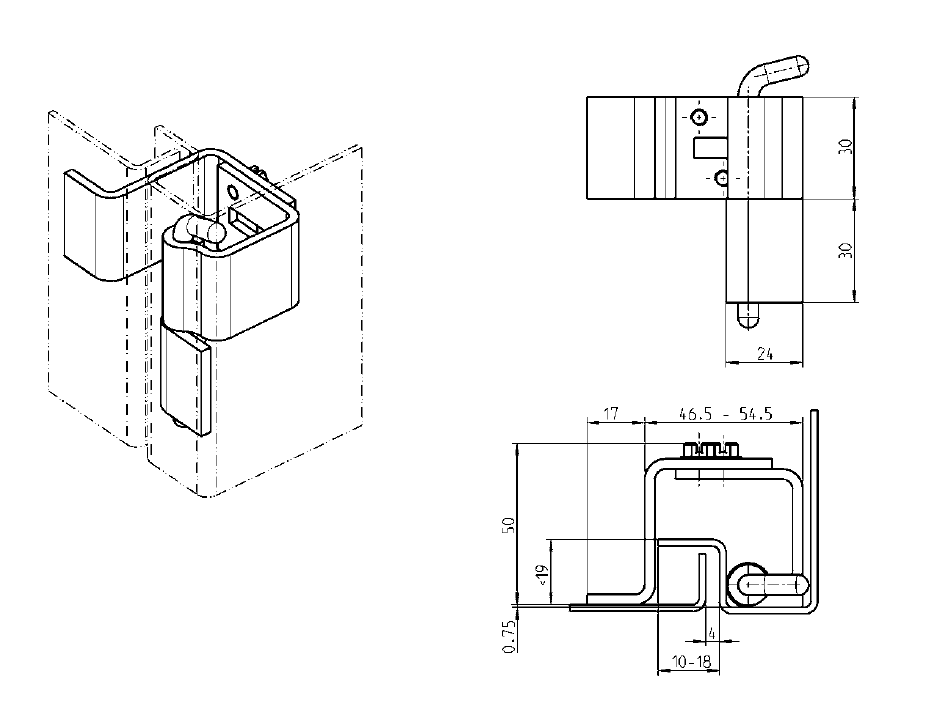

Cabinet Hinge, steel, prominent door - concealed, loose pin, L=60, B=71,5, H=50
MT101592
Cabinet Hinge in steel for mounting as prominent door - concealed. The hinge has a loose pin. Special products can be delivered on request, if the standard range does not cover the requirements.
Pin type
Loose
Material type
Steel
Surface finish
Electro zinc plated and untreated
Type
Prominent door - concealed
Height in mm
50
Length in mm
60
Offset height in mm
0
Thickness in mm
0
Opening angle
90
Long description
Cabinet Hinge in steel for mounting as prominent door - concealed. The hinge has a loose pin. Special products can be delivered on request, if the standard range does not cover the requirements.
