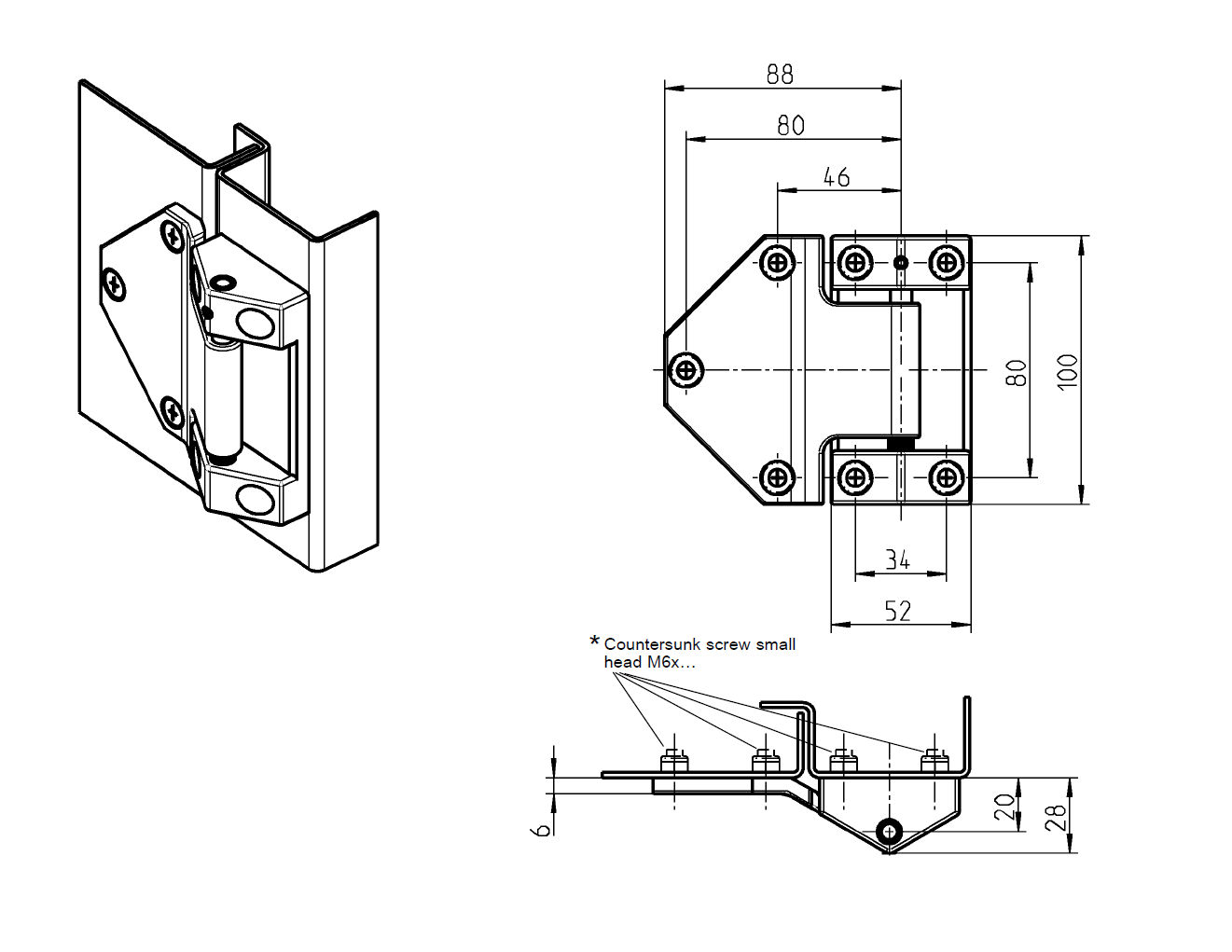

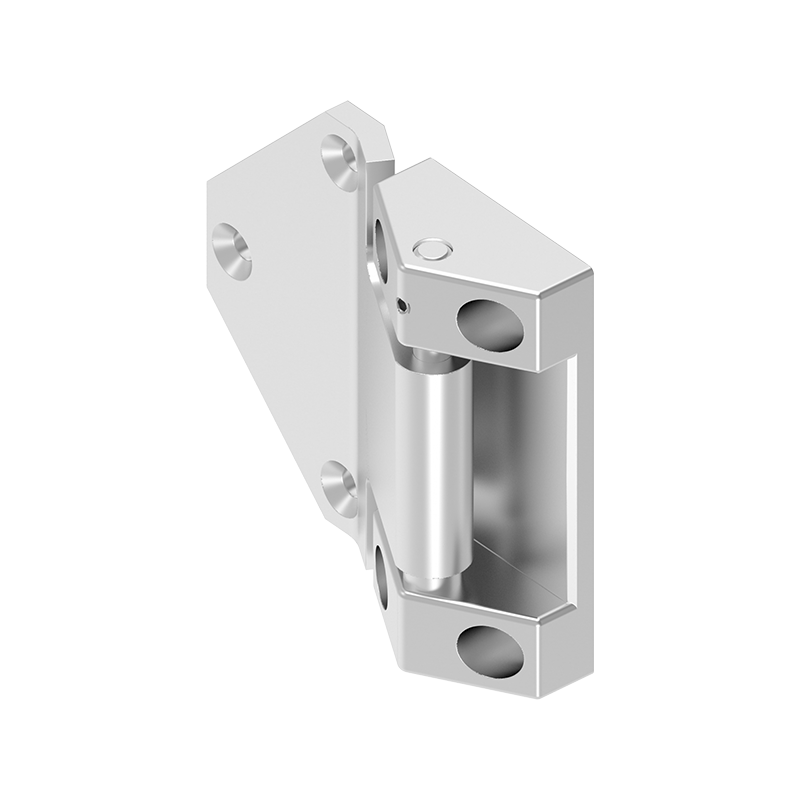

Cabinet Hinge, acid proof stainless steel, prominent door - visible, fixed pin, L=100, B=114, H=28
MT102314
Cabinet Hinge in acid proof stainless steel for mounting as prominent door - visible. The hinge has a fixed pin. 2D+: Adjustable in two directions by puchasing 2D-Nut: (Item no. 1056-U51).
Hinge is +/-4mm adjustable in height.
*Fastening items are not included. Special products can be delivered on request, if the standard range does not cover the requirements.
Pin material
Stainless steel
Pin type
Fixed
Adjustable
2D+
Material type
Acid proof Stainless Steel
Type
Prominent door – visible
Height in mm
28
Length in mm
100
Offset height in mm
0
Thickness in mm
0
Opening angle
180
Long description
Cabinet Hinge in acid proof stainless steel for mounting as prominent door - visible. The hinge has a fixed pin. 2D+: Adjustable in two directions by puchasing 2D-Nut: (Item no. 1056-U51).
Hinge is +/-4mm adjustable in height.
*Fastening items are not included. Special products can be delivered on request, if the standard range does not cover the requirements.
