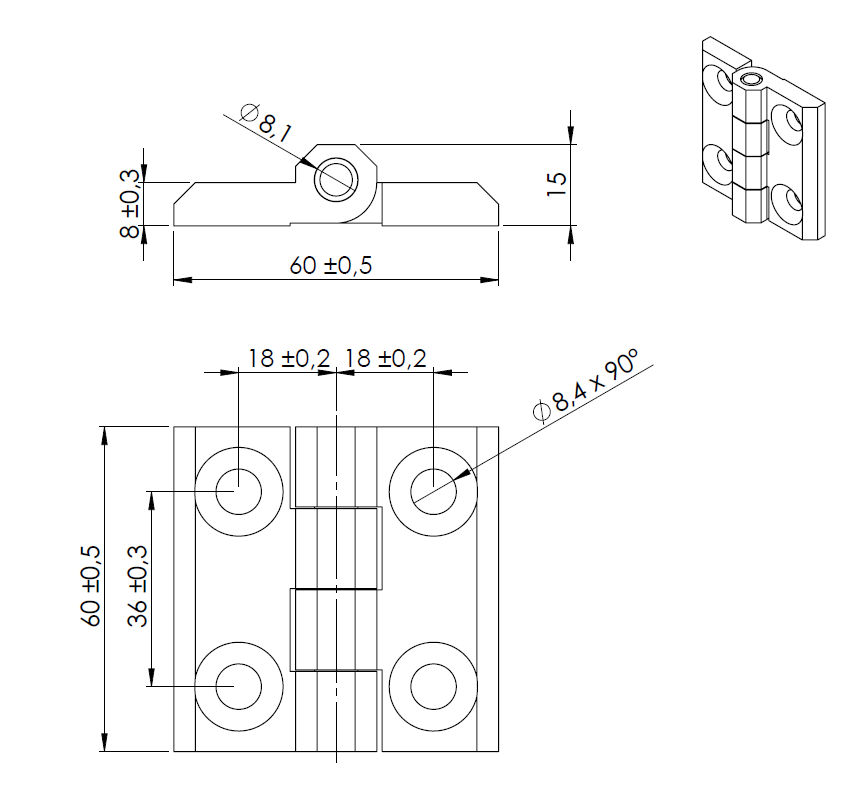

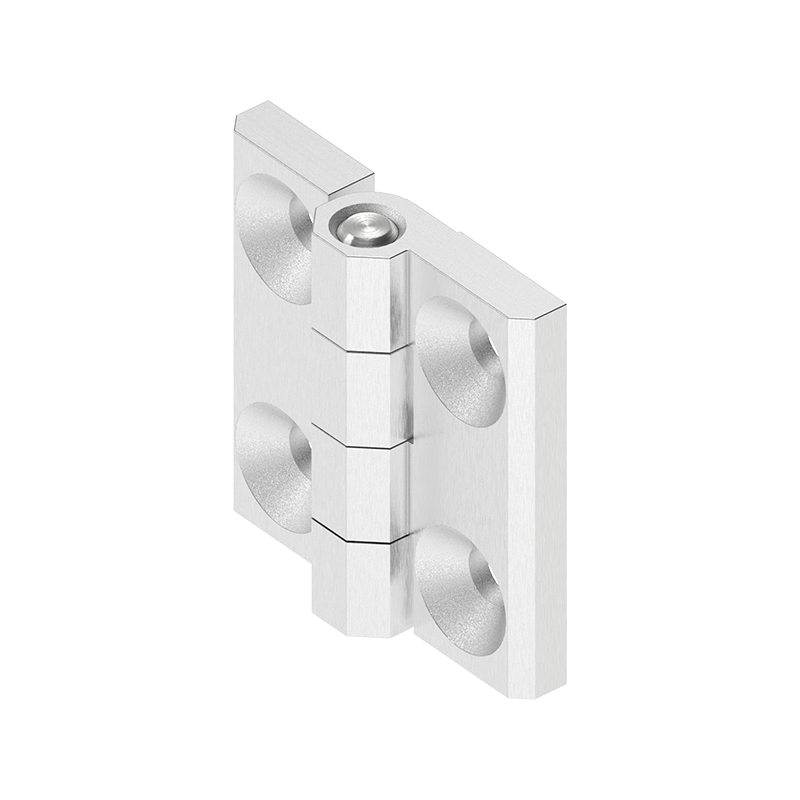

Cabinet Hinge, acid proof stainless steel, prominent door - visible, fixed pin, L=60, B=60, H=15
MT102345
Cabinet Hinge in acid proof stainless steel for mounting as prominent door - visible. The hinge has a fixed pin. Special products can be delivered on request, if the standard range does not cover the requirements.
Pin type
Fixed
Material type
Acid proof Stainless Steel
Type
Prominent door – visible
Height in mm
15
Length in mm
60
Offset height in mm
0
Thickness in mm
0
Opening angle
180
Long description
Cabinet Hinge in acid proof stainless steel for mounting as prominent door - visible. The hinge has a fixed pin. Special products can be delivered on request, if the standard range does not cover the requirements.
