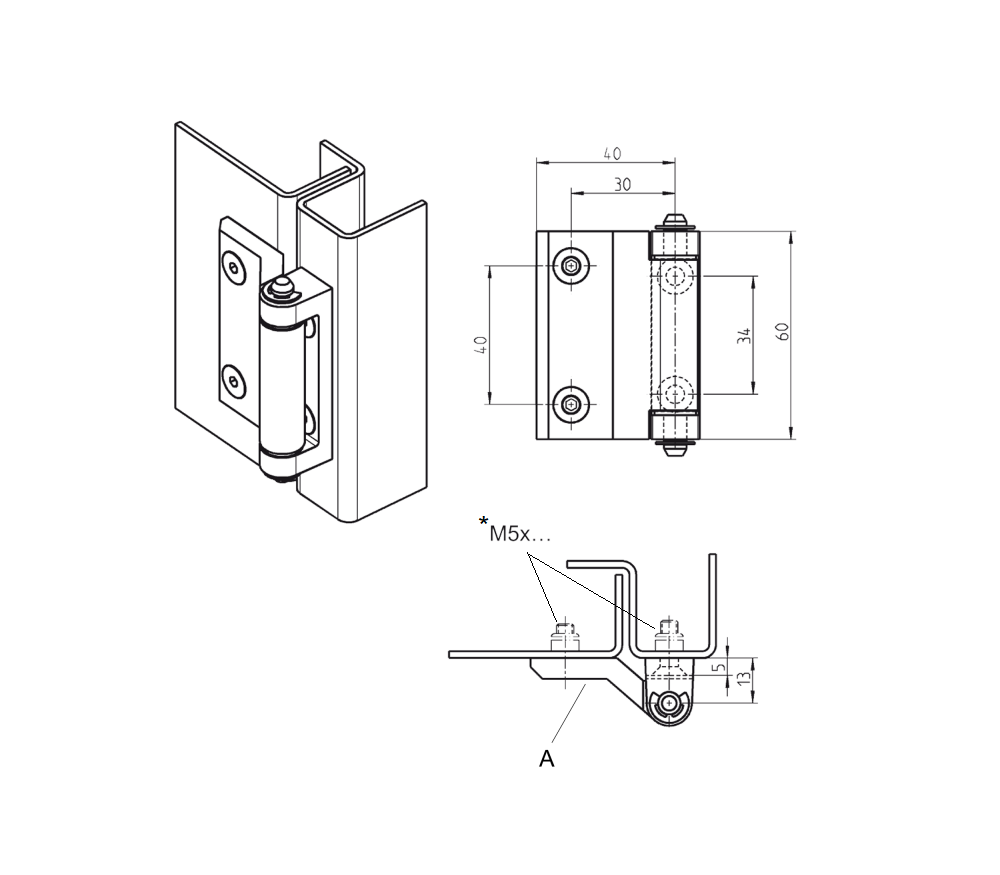

Cabinet hinge, acid proof steel, prominent door - visible, loose pin, L=60, B=46,5, H=19,5
MT102317
Cabinet Hinge in acid proof steel for mounting as prominent door - visible. The hinge has a loose pin. *Fastening items are not included. Special products can be delivered on request, if the standard range does not cover the requirements.
Pin type
Loose
Material type
Acid proof Stainless Steel
Type
Prominent door – visible
Height in mm
19.5
Length in mm
60
Thickness in mm
0
Opening angle
180
Long description
Cabinet Hinge in acid proof steel for mounting as prominent door - visible. The hinge has a loose pin. *Fastening items are not included. Special products can be delivered on request, if the standard range does not cover the requirements.
