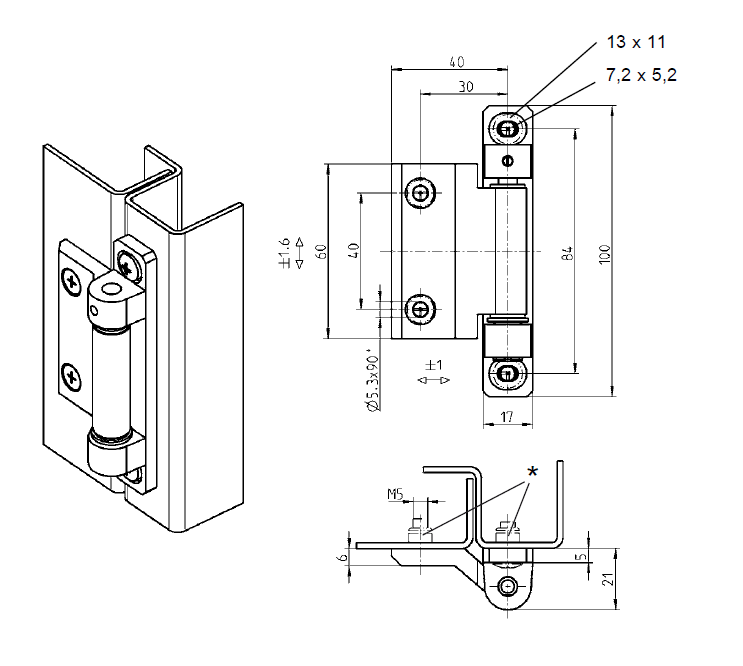

Cabinet Hinge, die-cast zinc, prominent door - visible, fixed pin, L=100, B=48,5, H=21
MT102306
Cabinet Hinge in die-cast zinc for mounting as prominent door - visible. The hinge has a fixed pin. Adjustable in two directions.
Surface treatment of the pin is nickel-plated.
*Fastening items are not included. Special products can be delivered on request, if the standard range does not cover the requirements.
Pin material
Brass
Pin type
Fixed
Adjustable
2D
Material type
Die-cast zinc
Surface finish
Black powder coated
Type
Prominent door – visible
Height in mm
21
Length in mm
100
Offset height in mm
0
Thickness in mm
0
Opening angle
180
Long description
Cabinet Hinge in die-cast zinc for mounting as prominent door - visible. The hinge has a fixed pin. Adjustable in two directions.
Surface treatment of the pin is nickel-plated.
*Fastening items are not included. Special products can be delivered on request, if the standard range does not cover the requirements.
