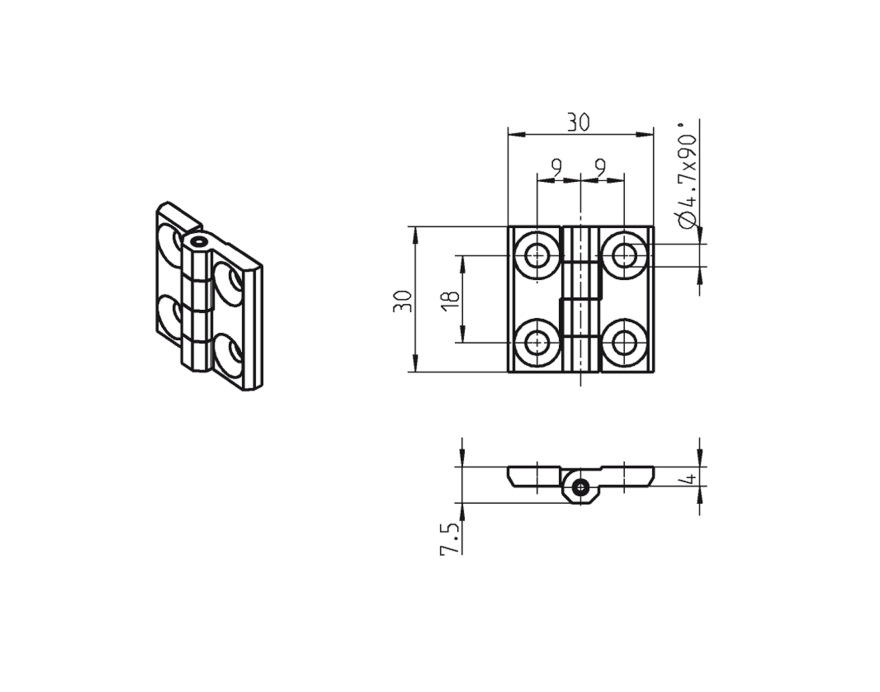

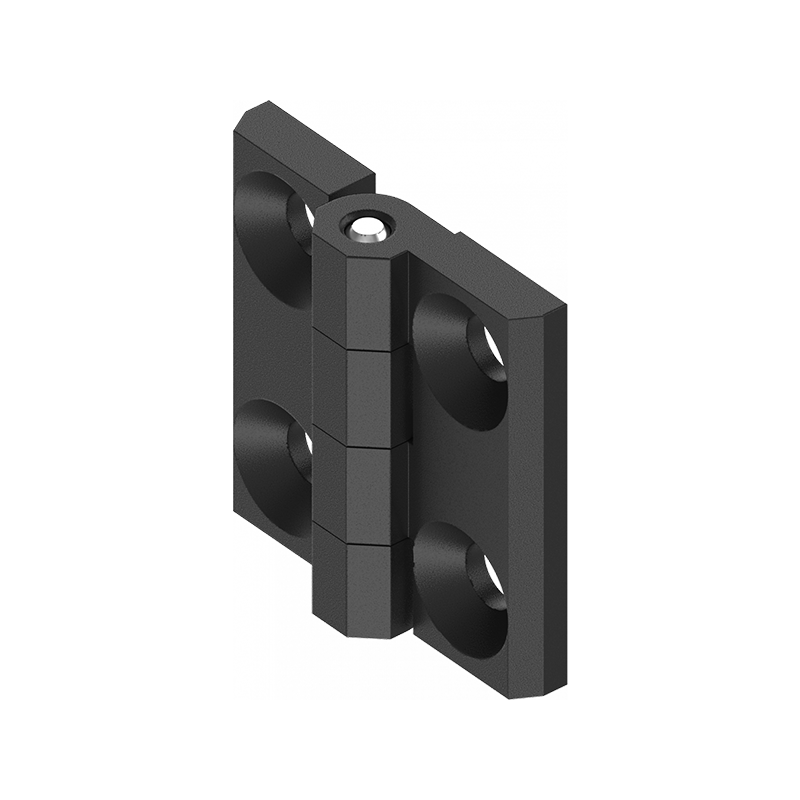

Cabinet hinge, die-cast zinc, prominent door - visible, fixed pin, L=30, B=30, H=7,5
MT102401
Cabinet Hinge in die-cast zinc for mounting as prominent door - visible. The hinge has a fixed pin. Countersunk holes Ø4,7mm. Special products can be delivered on request, if the standard range does not cover the requirements.
Pin material
Stainless steel
Pin type
Fixed
Material type
Die-cast zinc
Surface finish
Black powder coated
Type
Prominent door – visible
Height in mm
7.5
Length in mm
30
Thickness in mm
0
Opening angle
180
Long description
Cabinet Hinge in die-cast zinc for mounting as prominent door - visible. The hinge has a fixed pin. Countersunk holes Ø4,7mm. Special products can be delivered on request, if the standard range does not cover the requirements.
