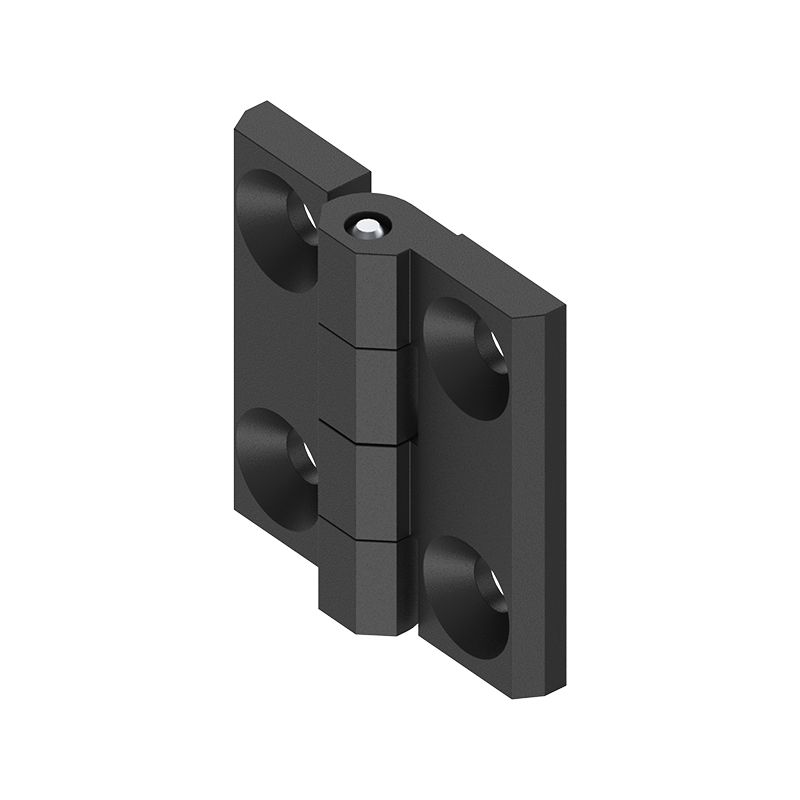

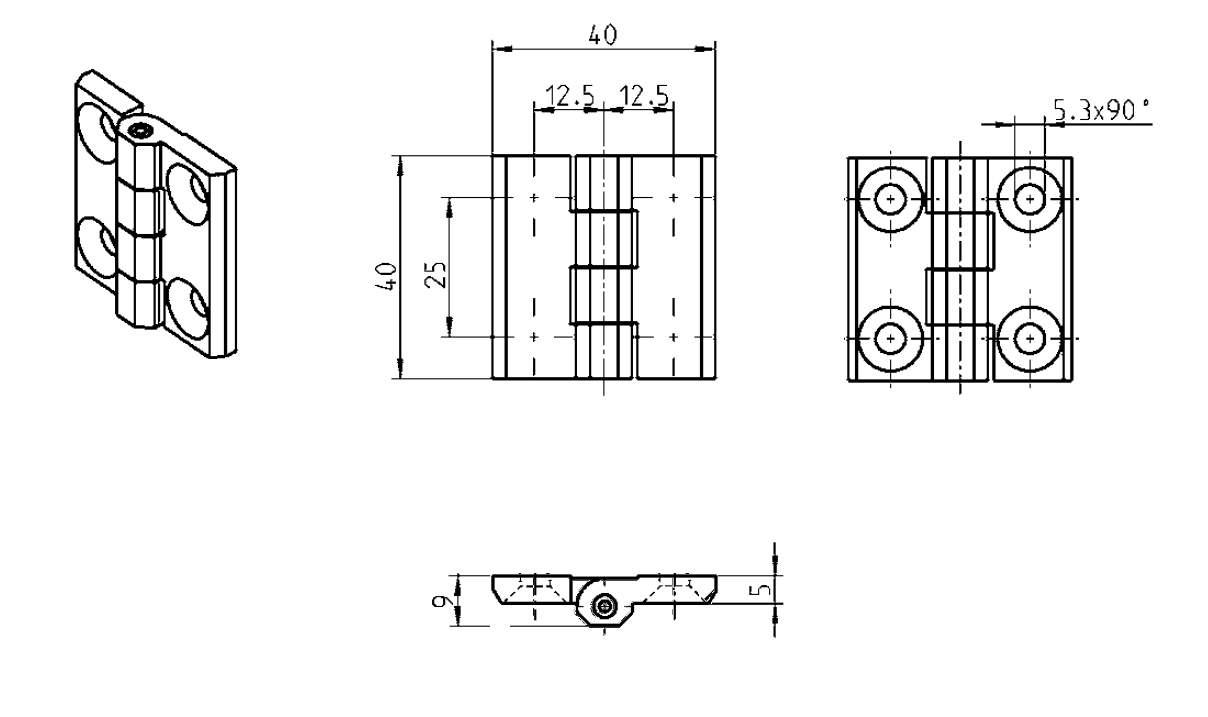

Cabinet Hinge, die-cast zinc, prominent door - visible, fixed pin, L=40, B=40, H=9
MT102400
Cabinet Hinge in die-cast zinc for mounting as prominent door - visible. The hinge has a fixed pin. Special products can be delivered on request, if the standard range does not cover the requirements.
Pin material
Stainless steel
Pin type
Fixed
Material type
Die-cast zinc
Surface finish
Black powder coated
Type
Prominent door – visible
Height in mm
9
Length i mm
40
Offset height in mm
0
Thickness in mm
0
Opening angle
180
Long description
Cabinet Hinge in die-cast zinc for mounting as prominent door - visible. The hinge has a fixed pin. Special products can be delivered on request, if the standard range does not cover the requirements.
