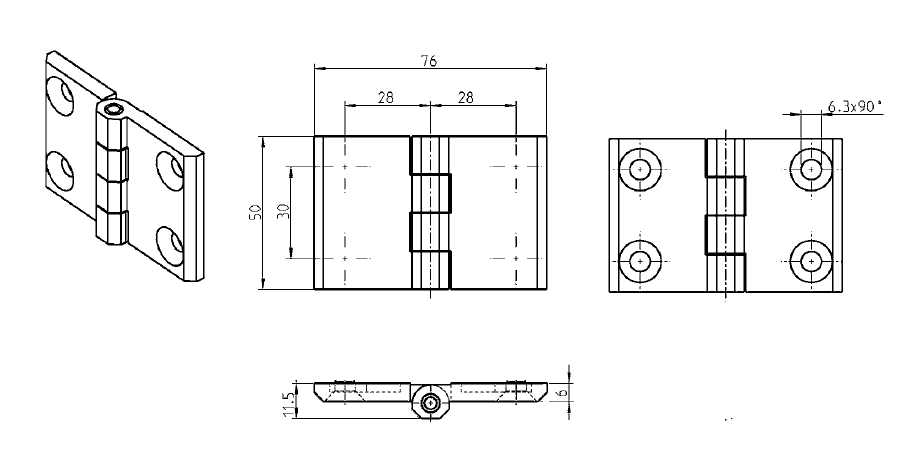

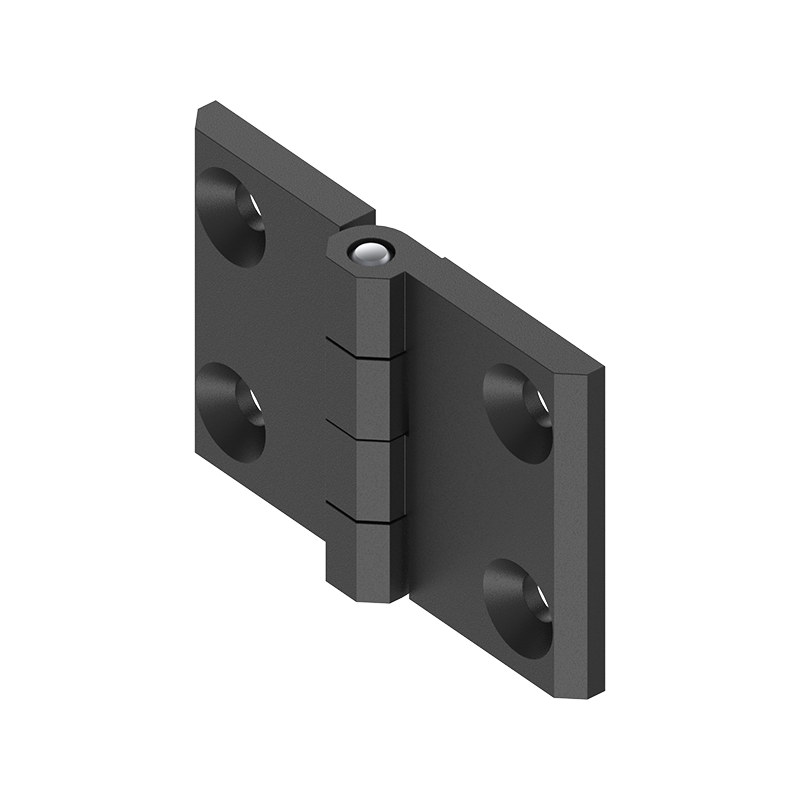

Cabinet Hinge, die-cast zinc, prominent door - visible, fixed pin, L=50, B=76, H=11,5

MT102358
Cabinet Hinge in die-cast zinc for mounting as prominent door - visible. The hinge has a fixed pin. 2D+: Adjustable in two directions by puchasing 2D-Nut: (Item no. 1056-U51). Special products can be delivered on request, if the standard range does not cover the requirements.
Pin material
Stainless steel
Pin type
Fixed
Adjustable
2D+
Material type
Die-cast zinc
Surface finish
Black powder coated
Type
Prominent door – visible
Height in mm
11.5
Length in mm
50
Offset height in mm
0
Thickness in mm
0
Opening angle
270
Long description
Cabinet Hinge in die-cast zinc for mounting as prominent door - visible. The hinge has a fixed pin. 2D+: Adjustable in two directions by puchasing 2D-Nut: (Item no. 1056-U51). Special products can be delivered on request, if the standard range does not cover the requirements.

Product data
