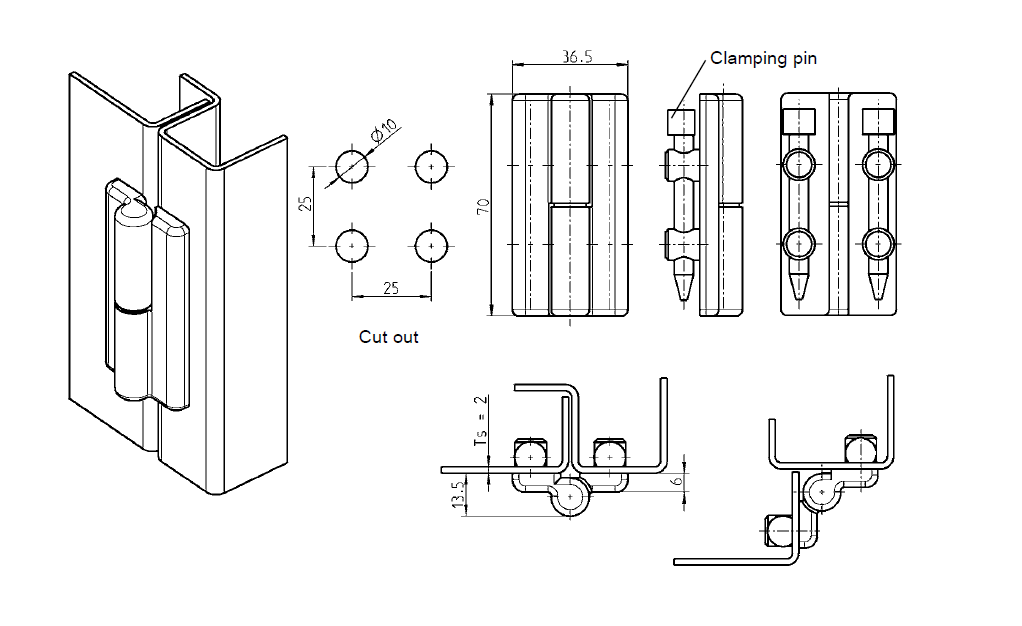

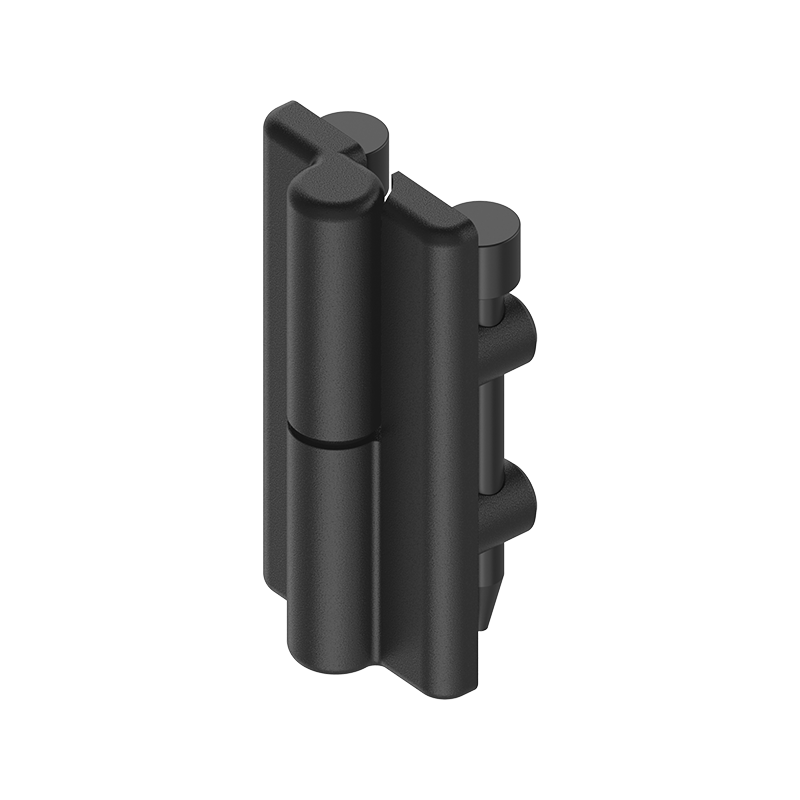

Cabinet Hinge, die-cast zinc, prominent door - visible, lift off pin, L=70, B=36,5, H=13,5
MT102376
Cabinet Hinge in die-cast zinc for mounting as prominent door - visible. The hinge has a lift off pin. Special products can be delivered on request, if the standard range does not cover the requirements.
Pin material
Stainless steel
Pin type
Lift off
Hængsling
Right
Material type
Die-cast zinc
Surface finish
Black powder coated
Type
Prominent door – visible
Height in mm
13.5
Length i mm
70
Plate thickness, min.
2
Plate thickness, max.
2
Thickness in mm
0
Opening angle
180
Long description
Cabinet Hinge in die-cast zinc for mounting as prominent door - visible. The hinge has a lift off pin. Special products can be delivered on request, if the standard range does not cover the requirements.
