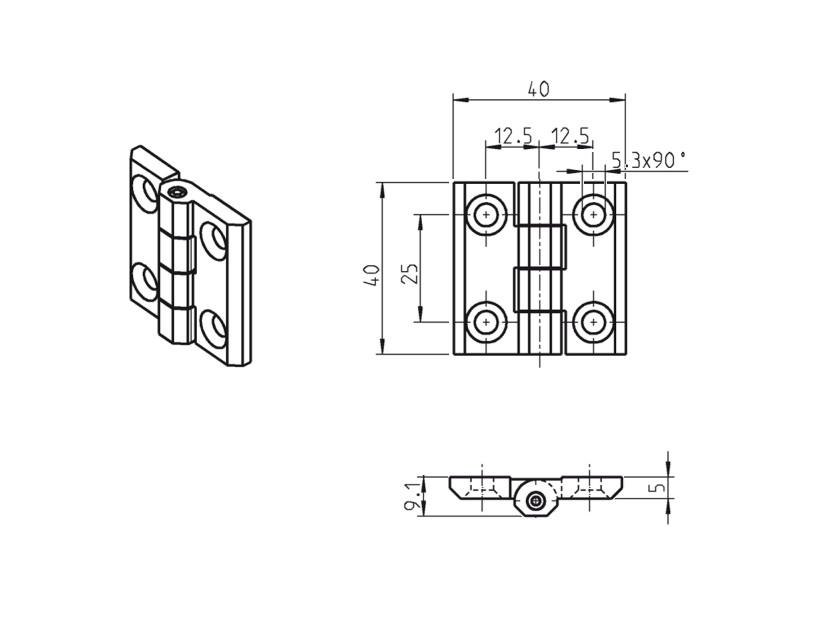

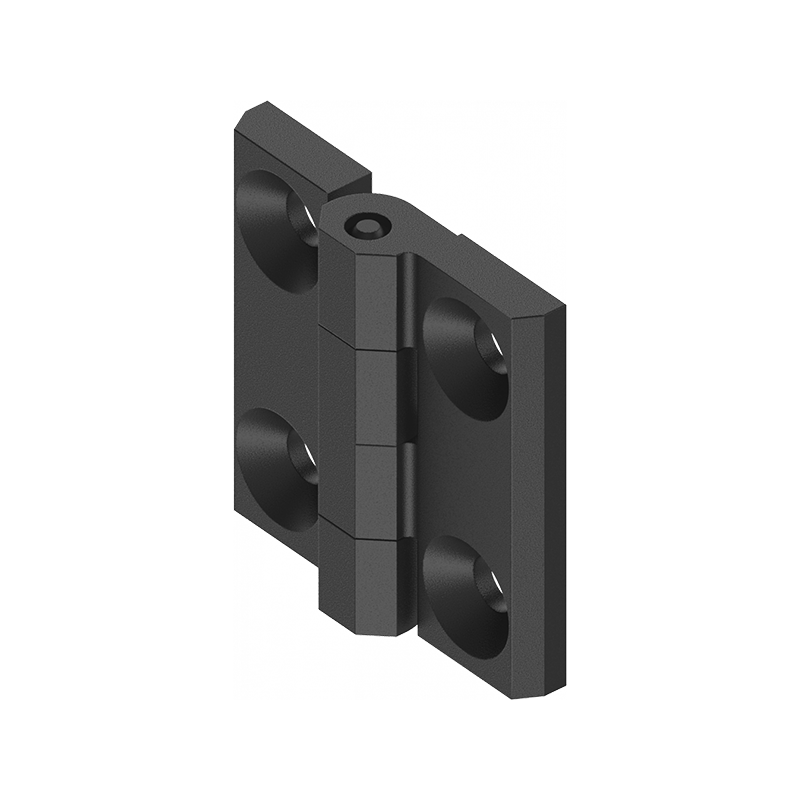

Cabinet hinge, glass fiber reinforced polyamide, prominent door - visible, fixed pin, L=40, B=40, H=9,1
MT102383
Cabinet Hinge in glass fiber reinforced polyamide for mounting as prominent door - visible. The hinge has a fixed pin. Special products can be delivered on request, if the standard range does not cover the requirements.
Pin type
Fixed
Material type
Glass fiber reinforced polyamide
Type
Prominent door – visible
Height in mm
9.1
Length in mm
40
Thickness in mm
0
Opening angle
180
Long description
Cabinet Hinge in glass fiber reinforced polyamide for mounting as prominent door - visible. The hinge has a fixed pin. Special products can be delivered on request, if the standard range does not cover the requirements.
