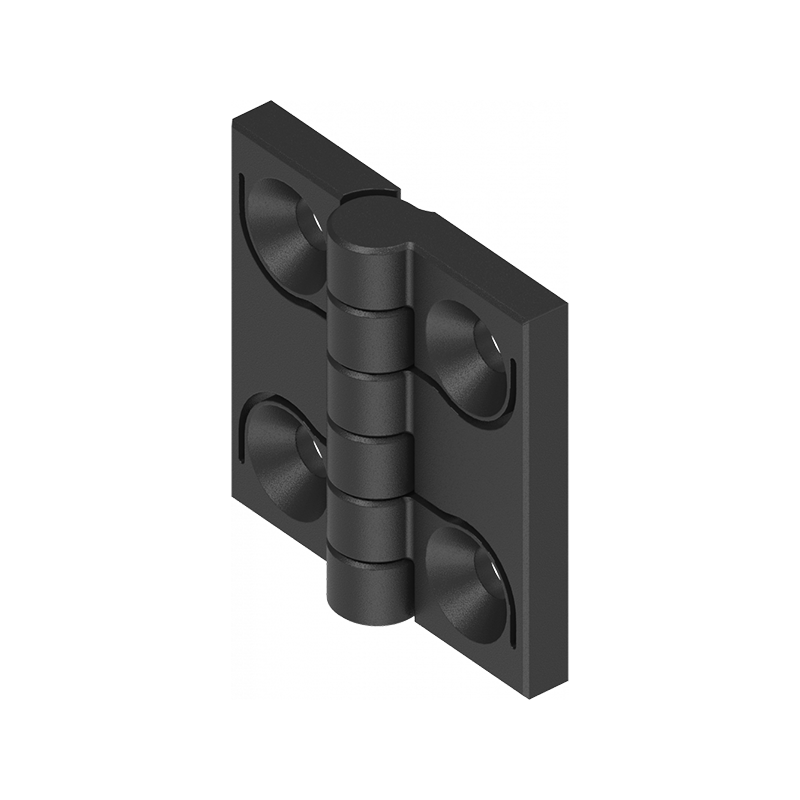

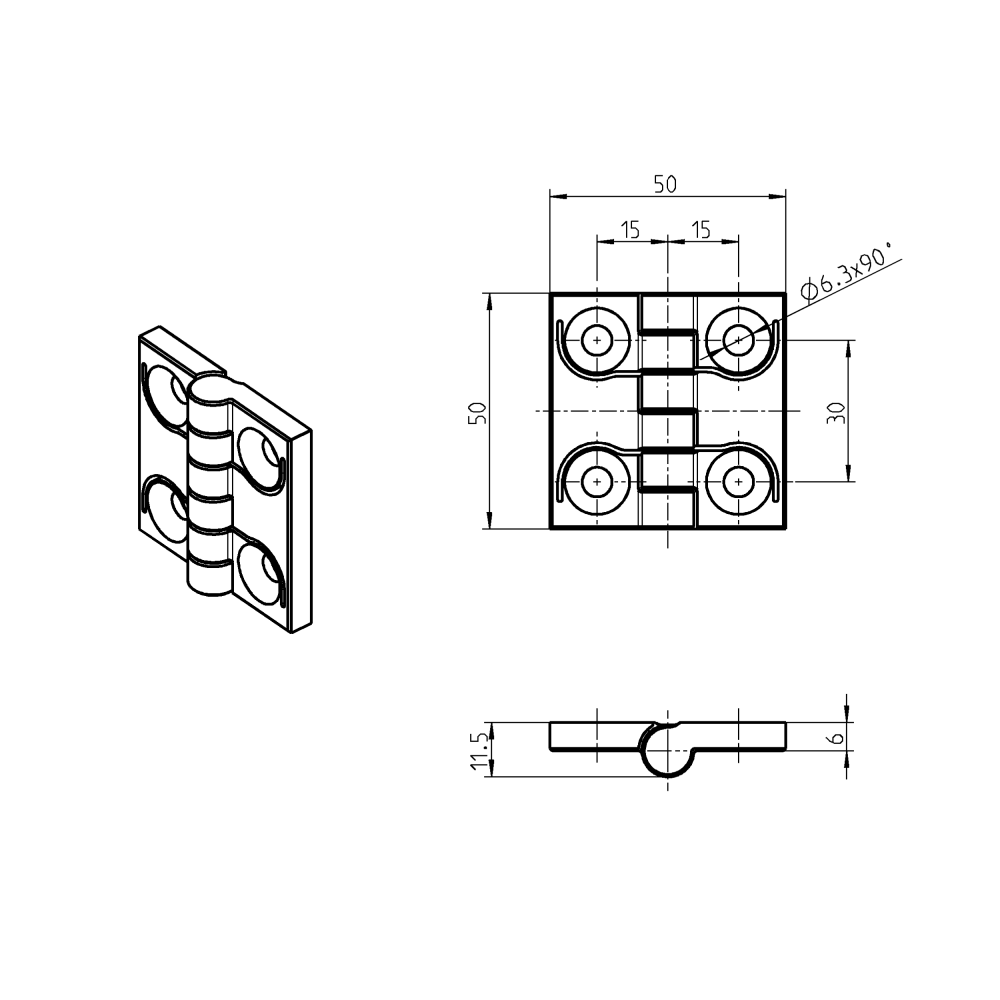

    Cabinet hinge, glass fiber reinforced polyamide, prominent door - visible, fixed pin, L=50, B=50, H=11,5

    MT102404

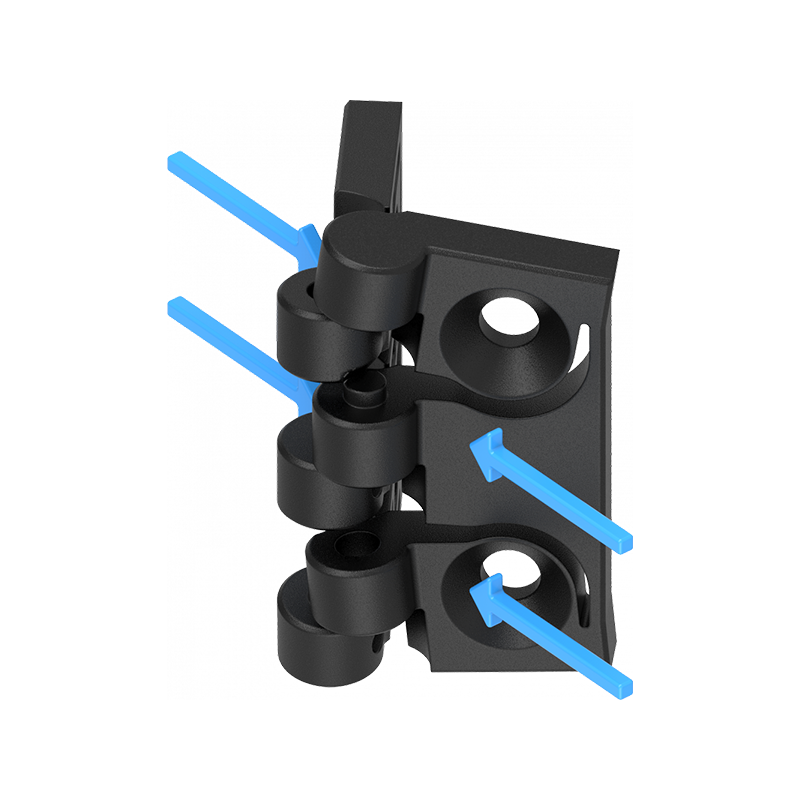

    Cabinet Hinge in glass fiber reinforced polyamide for mounting as prominent door - visible. The hinge has a fixed pin. Countersunk holes Ø6,3mm. Snap-in mounting. 2D+: Adjustable in two directions by puchasing 2D-Nut: (Item no. 1056-U51). Special products can be delivered on request, if the standard range does not cover the requirements.

    Pin type
    Fixed
    Adjustable
    2D+
    Material type
    Glass fiber reinforced polyamide
    Type
    Prominent door – visible
    Height in mm
    11.5
    Length in mm
    50
    Thickness in mm
    0
    Opening angle
    180
    Long description

    Cabinet Hinge in glass fiber reinforced polyamide for mounting as prominent door - visible. The hinge has a fixed pin. Countersunk holes Ø6,3mm. Snap-in mounting. 2D+: Adjustable in two directions by puchasing 2D-Nut: (Item no. 1056-U51). Special products can be delivered on request, if the standard range does not cover the requirements.
