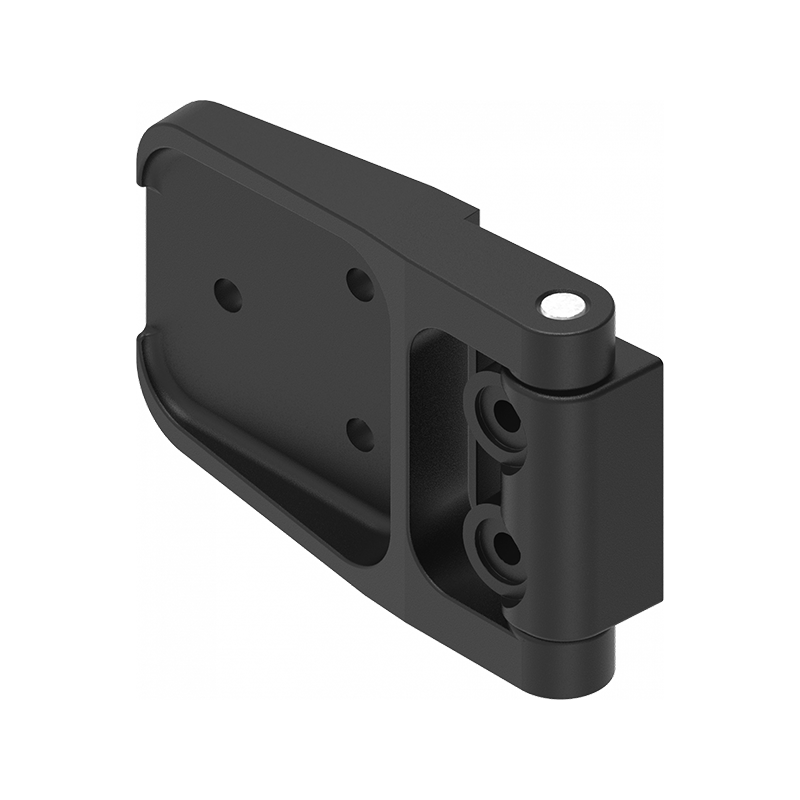

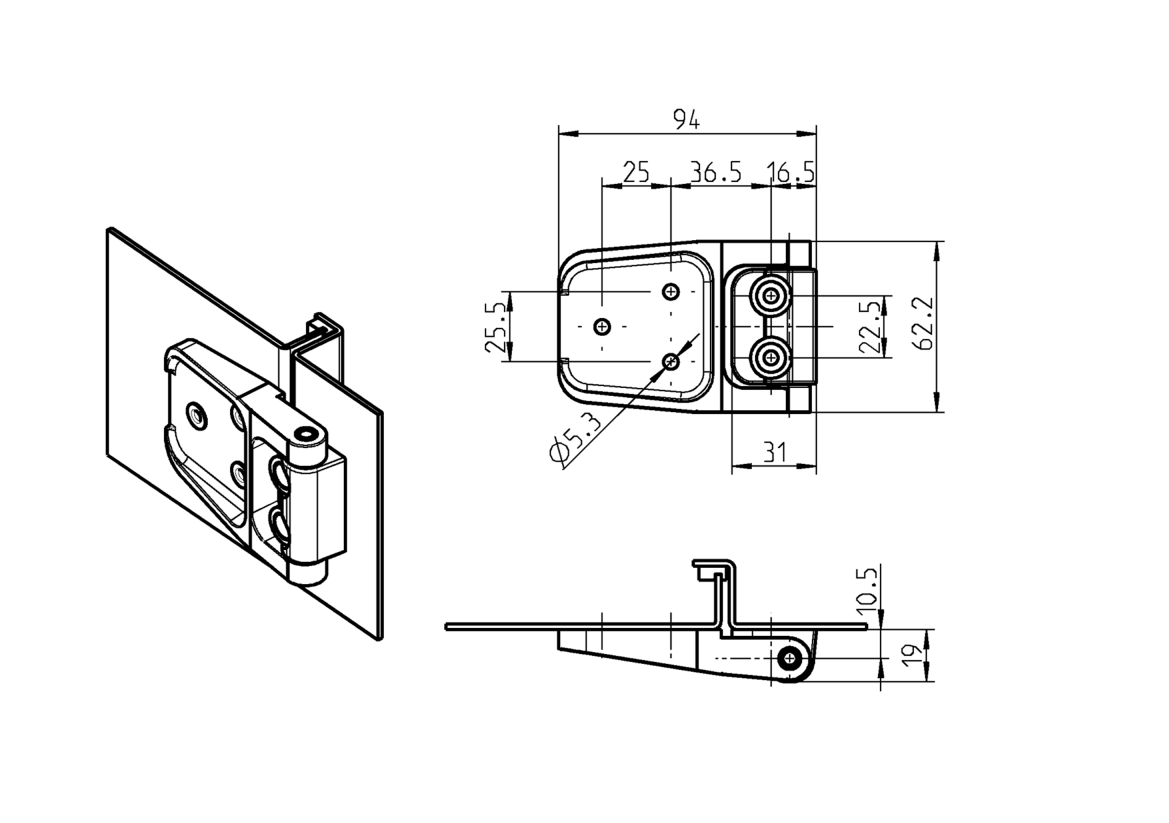

Cabinet hinge, glass fiber reinforced polyamide, prominent door - visible, fixed pin, L=62,2, B=94, H=19
MT102578
Cabinet Hinge in glass fiber reinforced polyamide for mounting as prominent door - visible. The hinge has a fixed pin. Surface treatment of the pin is electro zinc plated. Special products can be delivered on request, if the standard range does not cover the requirements.
Pin material
Steel
Pin type
Fixed
Material type
Glass fiber reinforced polyamide
Type
Prominent door – visible
Height in mm
19
Length in mm
62.2
Thickness in mm
0
Opening angle
180
Long description
Cabinet Hinge in glass fiber reinforced polyamide for mounting as prominent door - visible. The hinge has a fixed pin. Surface treatment of the pin is electro zinc plated. Special products can be delivered on request, if the standard range does not cover the requirements.
