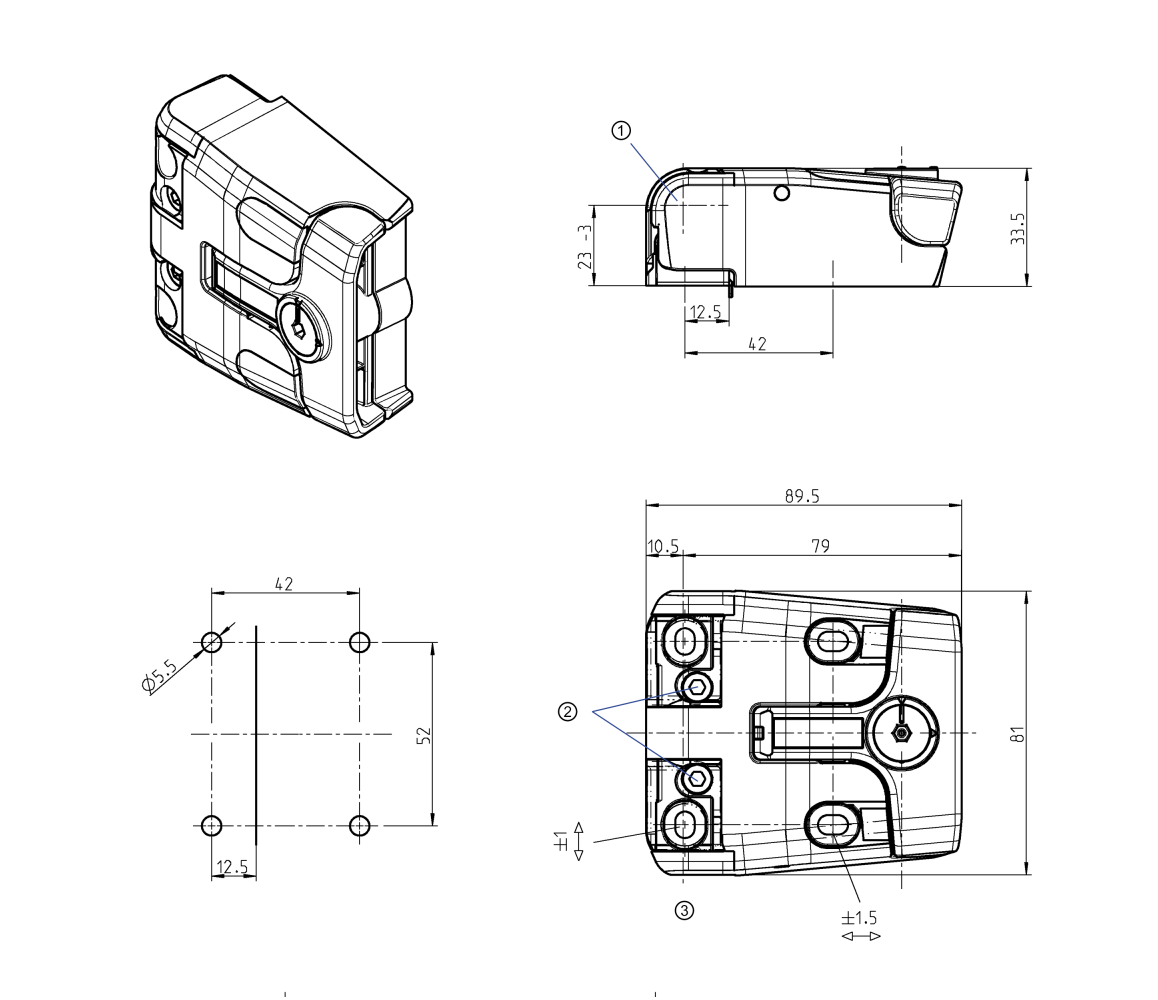

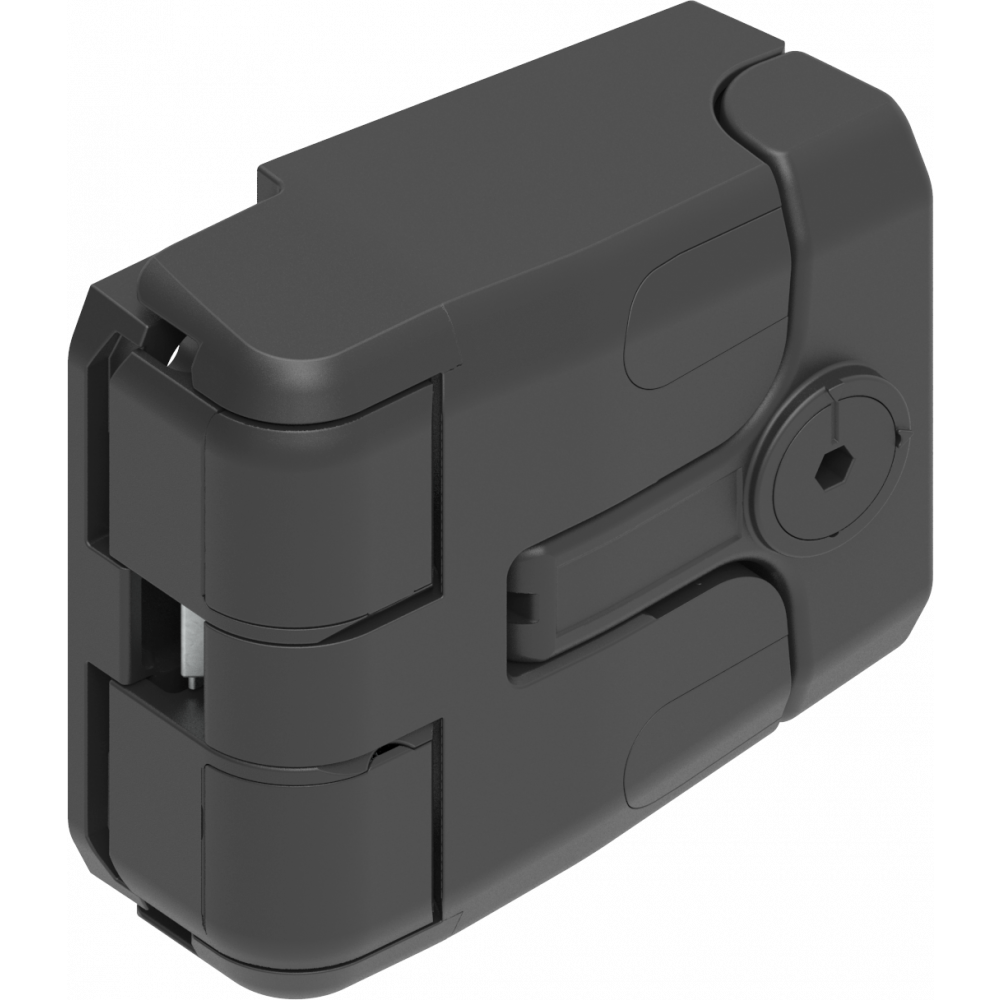

Cabinet hinge, glass fiber reinforced polyamide, prominent door - visible, lift off pin, L=81, B=89,5, H=33,5
MT102585

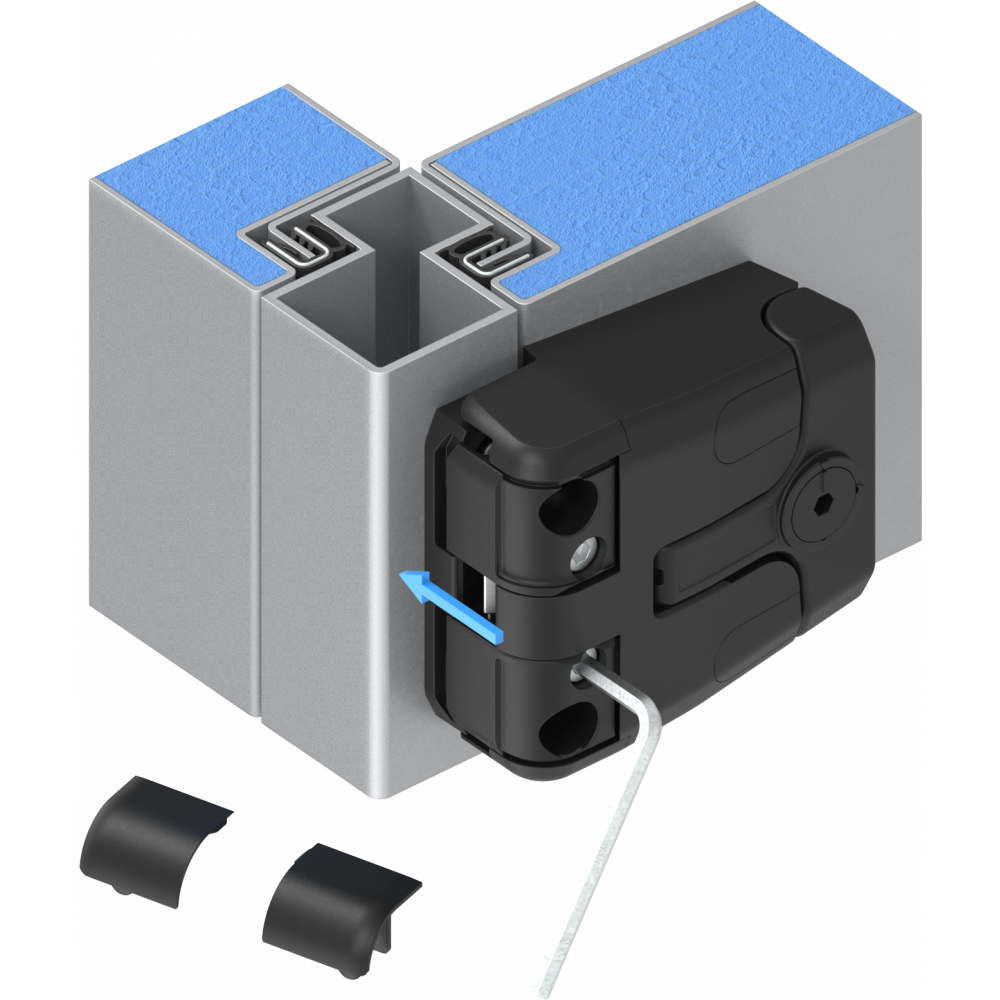

Cabinet Hinge in glass fiber reinforced polyamide for mounting as prominent door - visible. The hinge has a Lift off pin. Insert type is Hexagon female SW 4. Adjustable in three directions. Without pressure relief. Special products can be delivered on request, if the standard range does not cover the requirements.
Pin type
Lift off
Adjustable
3D
Material type
Glass fiber reinforced polyamide
Type
Prominent door – visible
Height in mm
33.5
Length in mm
81
Opening angle
180
Long description
Cabinet Hinge in glass fiber reinforced polyamide for mounting as prominent door - visible. The hinge has a Lift off pin. Insert type is Hexagon female SW 4. Adjustable in three directions. Without pressure relief. Special products can be delivered on request, if the standard range does not cover the requirements.
