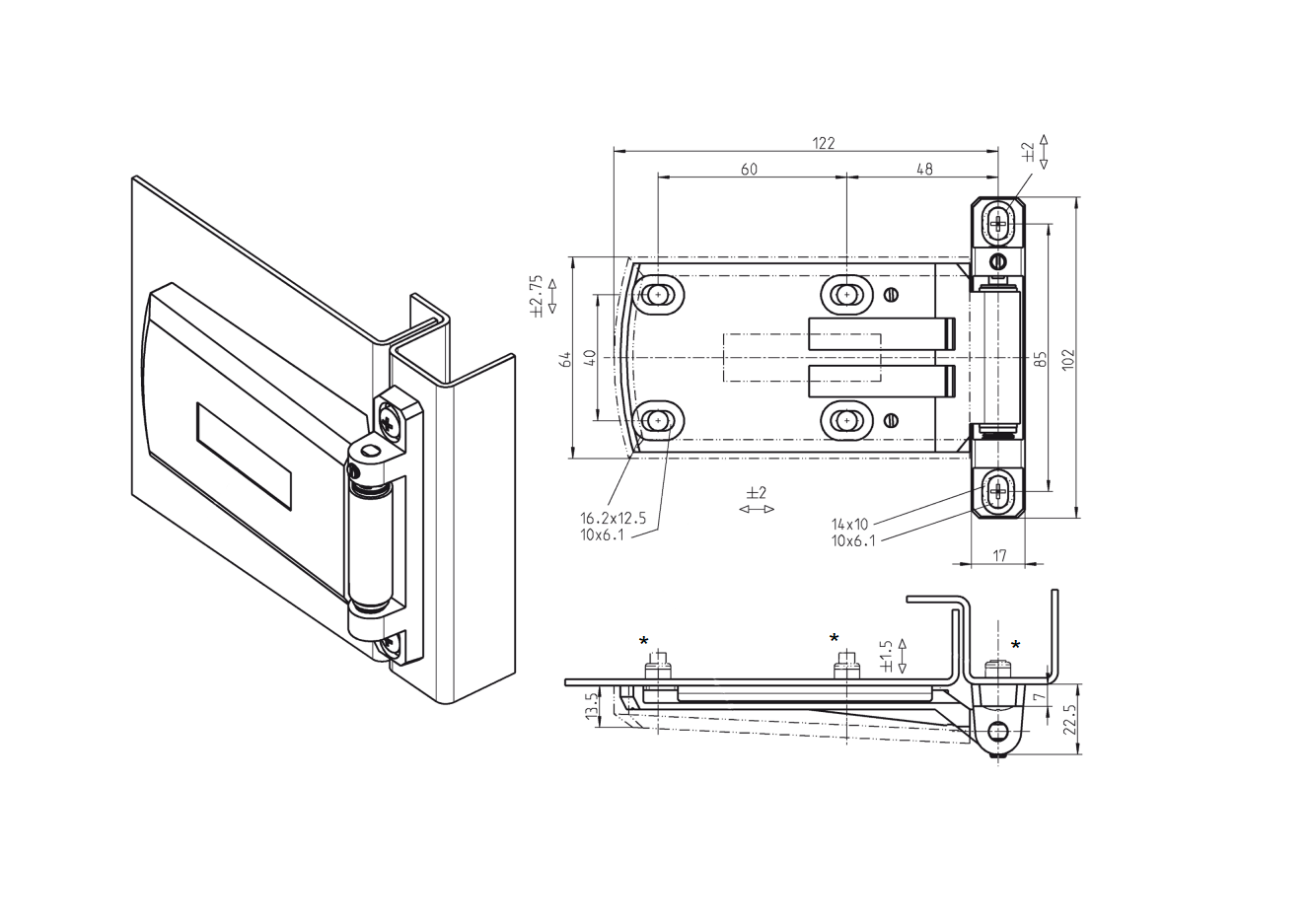

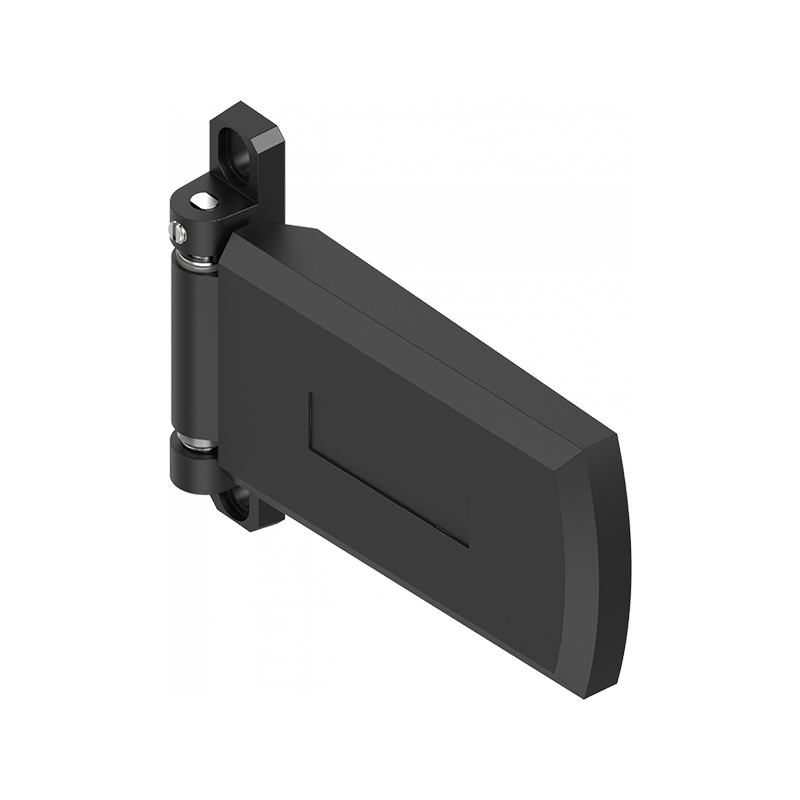

Cabinet hinge, left, die-cast zinc, prominent door - visible, fixed pin, L=102, B=130,5, H=22,5
MT102312
Cabinet Hinge in die-cast zinc for mounting as prominent door - visible. The hinge has a fixed pin. Material of the cover is glass fiber reinforced polyamide. Surface treatment of the pin is electro zinc plated.
Adjustable in three directions.
*Fastening items are not included. Special products can be delivered on request, if the standard range does not cover the requirements.
Pin material
Steel
Pin type
Fixed
Hinge side
Left
Adjustable
3D
Material type
Die-cast zinc
Surface finish
Black powder coated
Type
Prominent door – visible
Height in mm
22.5
Length in mm
102
Thickness in mm
0
Opening angle
180
Long description
Cabinet Hinge in die-cast zinc for mounting as prominent door - visible. The hinge has a fixed pin. Material of the cover is glass fiber reinforced polyamide. Surface treatment of the pin is electro zinc plated.
Adjustable in three directions.
*Fastening items are not included. Special products can be delivered on request, if the standard range does not cover the requirements.
