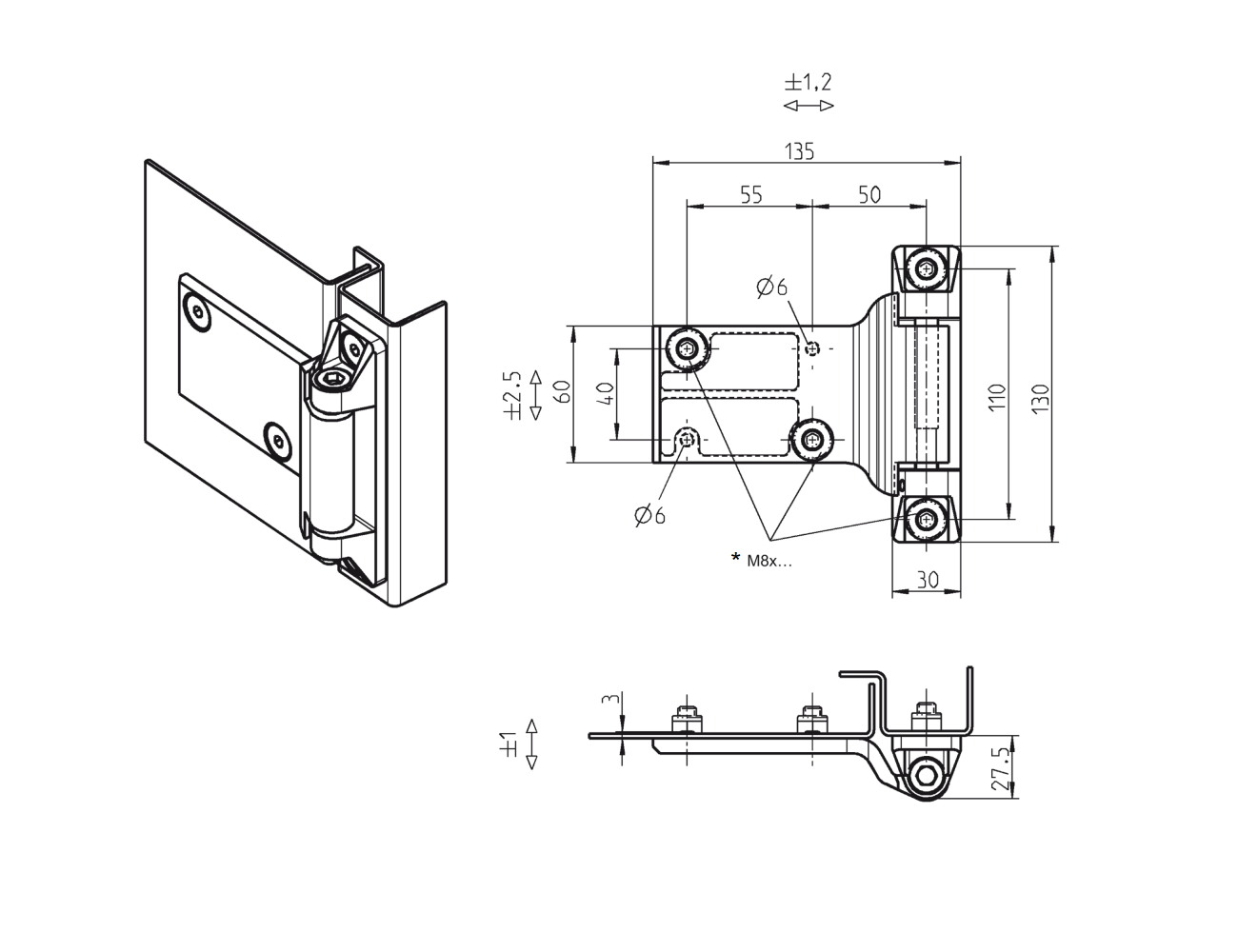

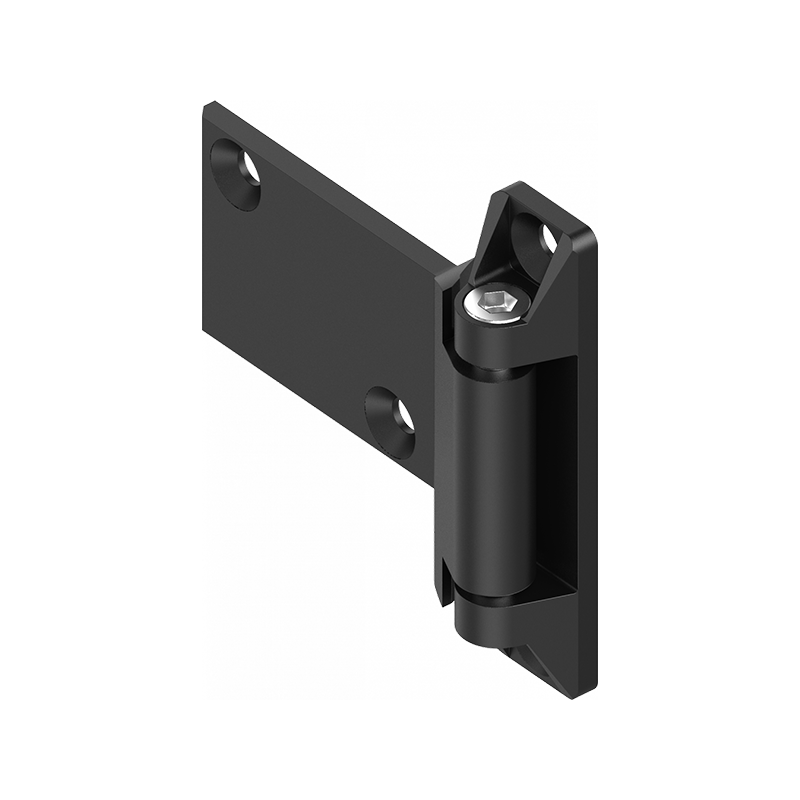

Cabinet hinge, right, die-cast zinc, prominent door - visible, loose pin, L=130, B=135, H=27,5
MT102304
Cabinet Hinge in die-cast zinc for mounting as prominent door - visible. The hinge has a loose pin. Adjustable in three directions.
*Fastening items are not included. Special products can be delivered on request, if the standard range does not cover the requirements.
Pin material
Stainless steel
Pin type
Loose
Hinge side
Right
Adjustable
3D
Material type
Die-cast zinc
Surface finish
Black powder coated
Type
Prominent door – visible
Height in mm
27.5
Length in mm
130
Plate thickness max.
3
Thickness in mm
0
Opening angle
180
Long description
Cabinet Hinge in die-cast zinc for mounting as prominent door - visible. The hinge has a loose pin. Adjustable in three directions.
*Fastening items are not included. Special products can be delivered on request, if the standard range does not cover the requirements.
