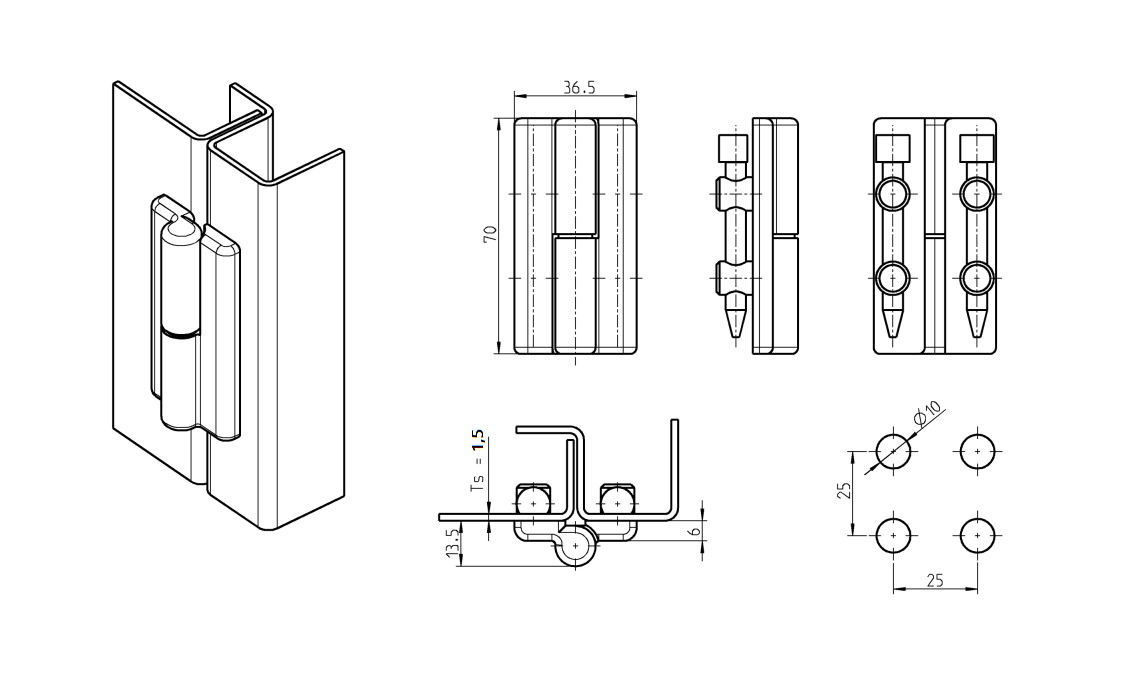

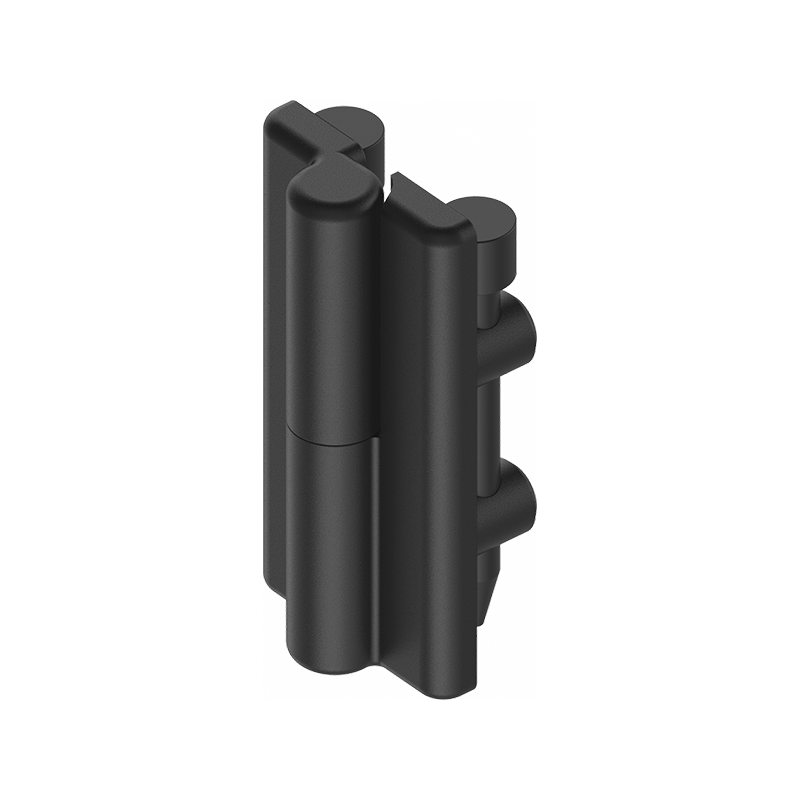

Cabinet hinge, right, glass fiber reinforced polyamide, prominent door - visible, lift off pin, L=70, B=36,5, H=13,5
MT102387
Cabinet Hinge in glass fiber reinforced polyamide for mounting as prominent door - visible. The hinge has a Lift off pin. Special products can be delivered on request, if the standard range does not cover the requirements.
Pin type
Lift off
Hængsling
Right
Material type
Glass fiber reinforced polyamide
Type
Prominent door – visible
Height in mm
13.5
Length i mm
70
Plate thickness, min.
1.5
Plate thickness, max.
1.5
Thickness in mm
0
Opening angle
180
Long description
Cabinet Hinge in glass fiber reinforced polyamide for mounting as prominent door - visible. The hinge has a Lift off pin. Special products can be delivered on request, if the standard range does not cover the requirements.
