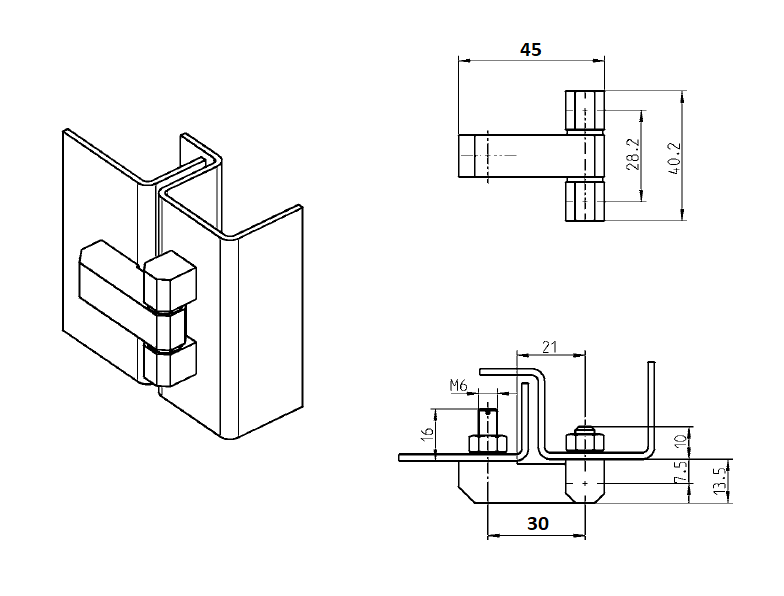

Cabinet Hinge, stainless steel, prominent door - visible, fixed pin, L=40,2, B=45, H=13,5
MT102329
Cabinet Hinge in stainless steel for mounting as prominent door - visible. The hinge has a fixed pin. Special products can be delivered on request, if the standard range does not cover the requirements.
Pin type
Fixed
Material type
Stainless steel
Type
Prominent door – visible
Height in mm
13.5
Length in mm
40.2
Offset height in mm
0
Thickness in mm
0
Opening angle
180
Net Weight (Kg)
0.095
HS Code
8302100090
Country of Origin
DE
Long description
Cabinet Hinge in stainless steel for mounting as prominent door - visible. The hinge has a fixed pin. Special products can be delivered on request, if the standard range does not cover the requirements.
