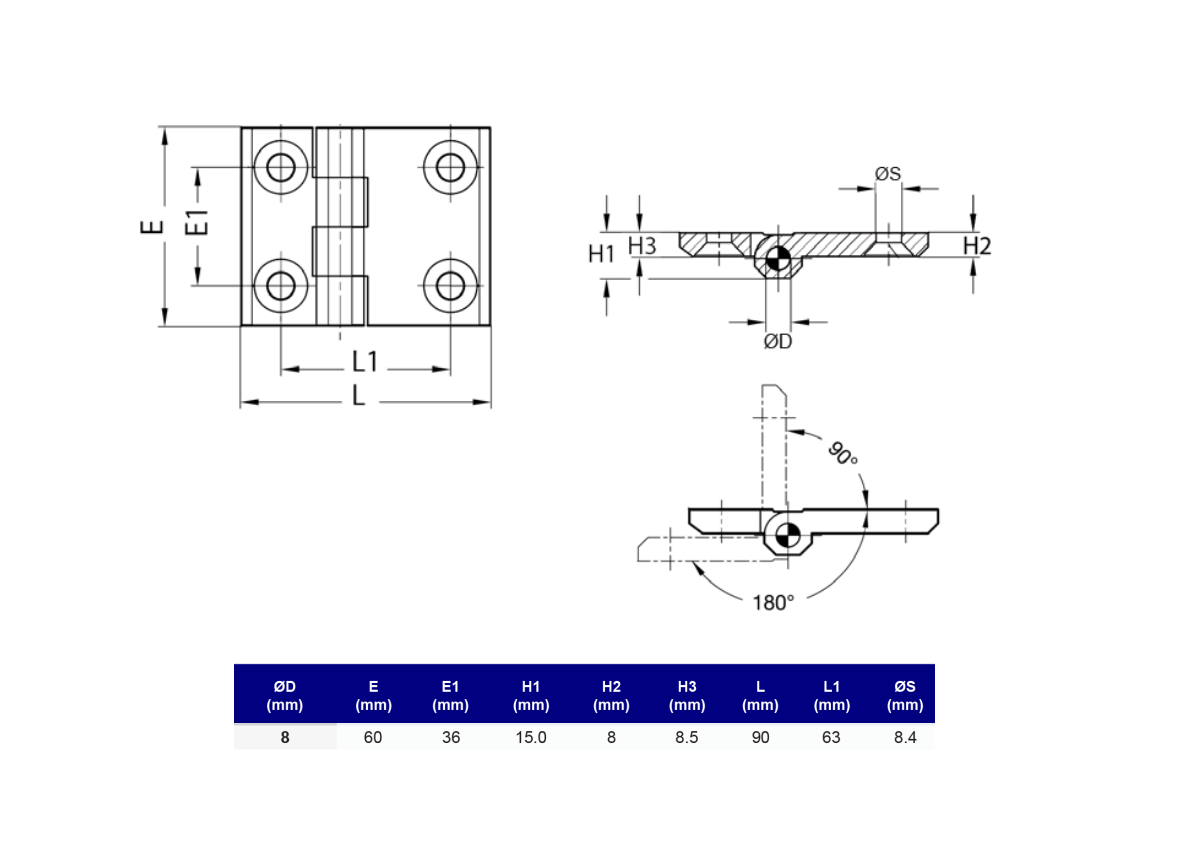

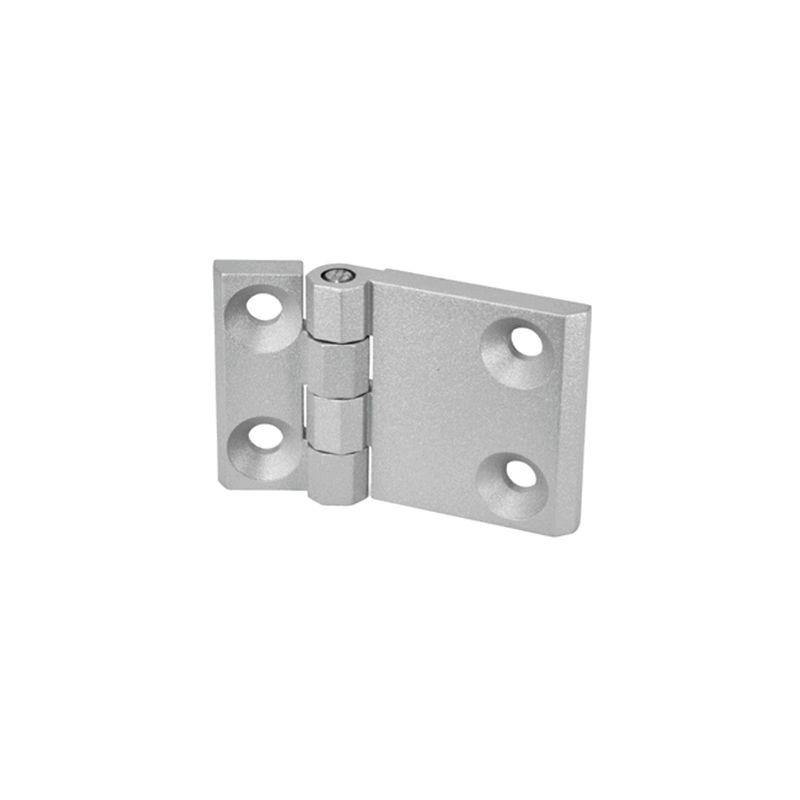

Cabinet Hinge, stainless steel, prominent door - visible, fixed pin, L=60, B=90, H=15
MT111562
Cabinet Hinge in stainless steel for mounting as prominent door - visible. The hinge has a fixed pin. Special products can be delivered on request, if the standard range does not cover the requirements.
Pin type
Fixed
Material type
Stainless steel
Surface finish
Sandblasted
Type
Prominent door – visible
Height in mm
15
Internal height in mm
0
Length in mm
60
Opening angle
270
Long description
Cabinet Hinge in stainless steel for mounting as prominent door - visible. The hinge has a fixed pin. Special products can be delivered on request, if the standard range does not cover the requirements.
