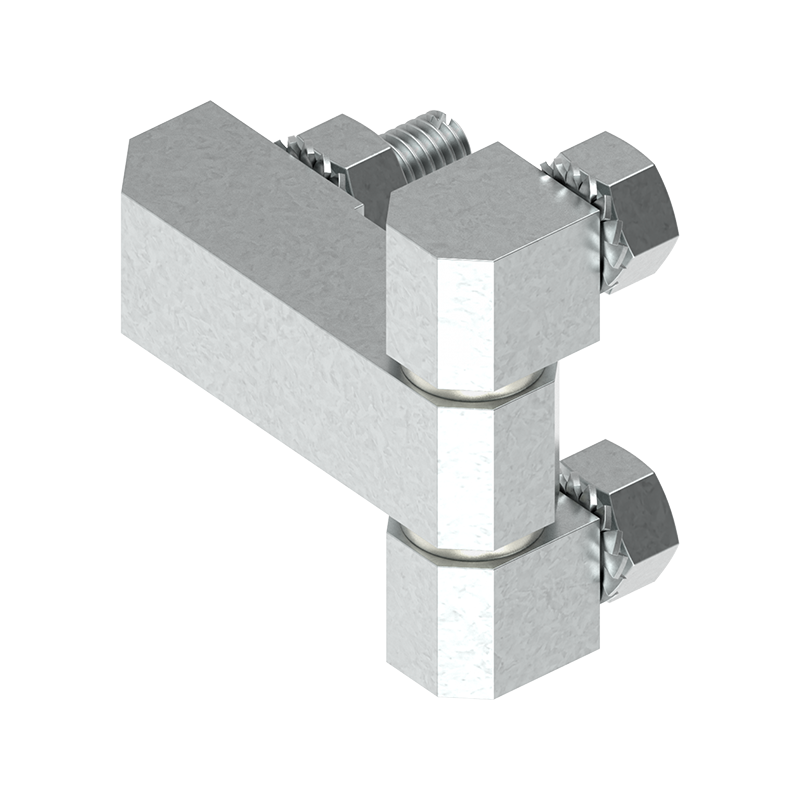

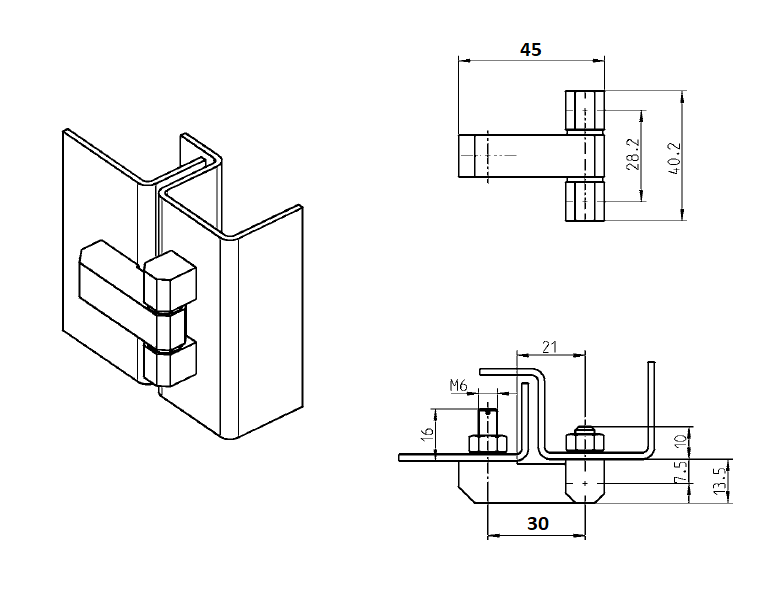

Cabinet Hinge, steel, prominent door - visible, fixed pin, L=40,2, B=45, H=13,5
MT102325
Cabinet Hinge in steel for mounting as prominent door - visible. The hinge has a fixed pin. Surface treatment of the pin is nickel-plated. Special products can be delivered on request, if the standard range does not cover the requirements.
Pin material
Brass
Pin type
Fixed
Material type
Steel
Surface finish
Electro zinc plated
Type
Prominent door – visible
Height in mm
13.5
Length in mm
40.2
Offset height in mm
0
Thickness in mm
0
Opening angle
180
Long description
Cabinet Hinge in steel for mounting as prominent door - visible. The hinge has a fixed pin. Surface treatment of the pin is nickel-plated. Special products can be delivered on request, if the standard range does not cover the requirements.
