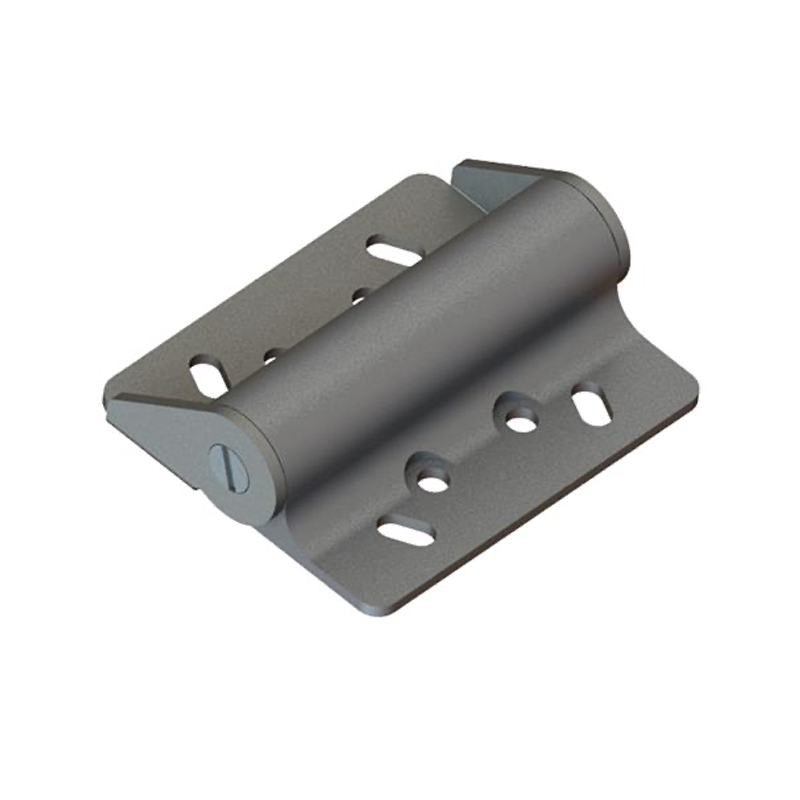

Hinge with damping, acid proof stainless steel, inside mounting, torque=15, L=100, B=80
MT110446

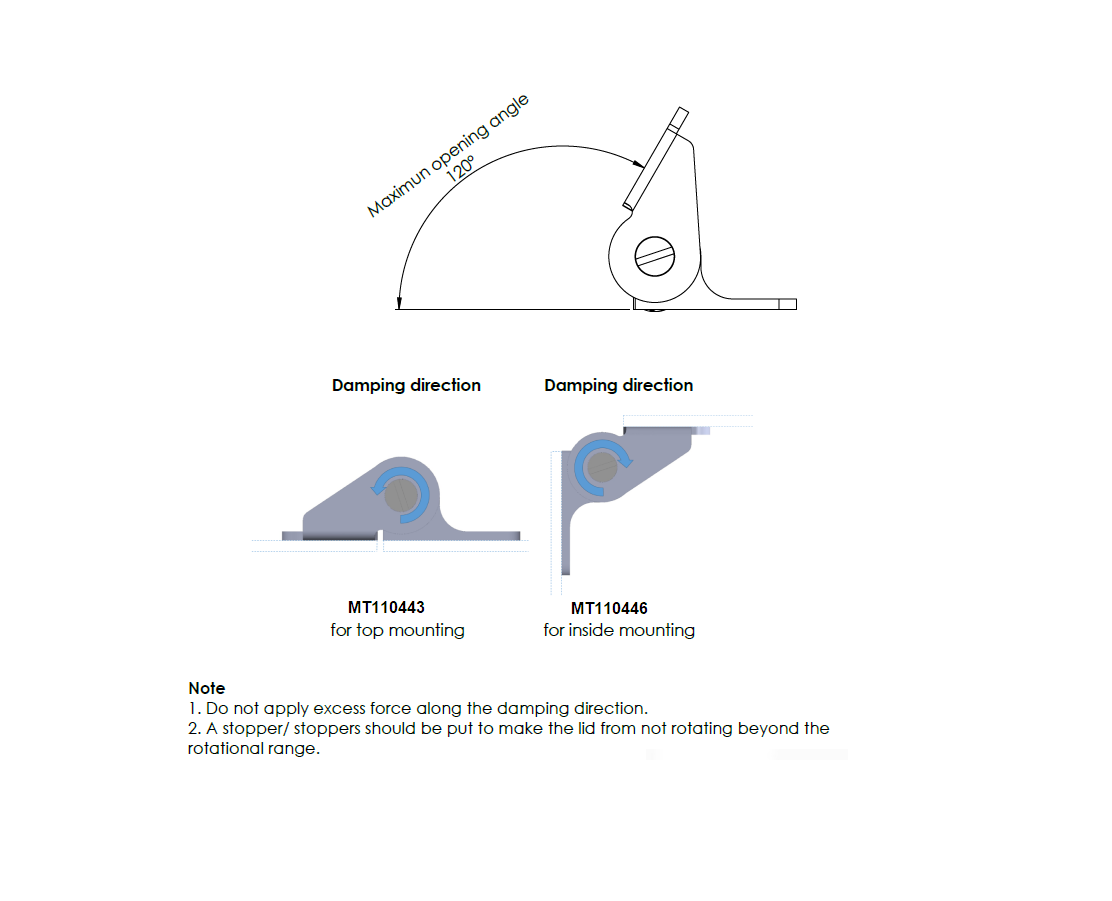

Hinge with damping manufactured in acid proof stainless steel with a pin in acid proof stainless steel. The torque is 15 Nm/pc and the opening angel is 120 degrees. Special products can be delivered on request, if the standard range does not fit the requirem
Pin material
Acid proof Stainless Steel
Material type
Acid proof Stainless Steel
Mounting type
Inside mounting
Torque in N.m
15
Height in mm
28

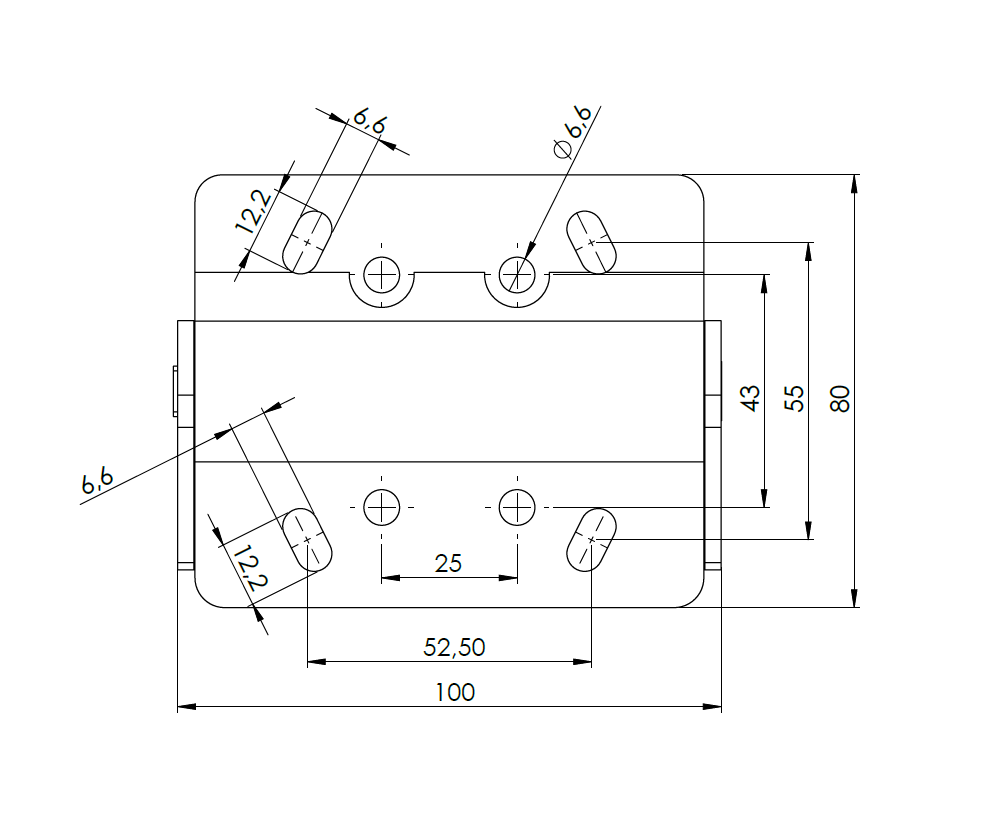

Length in mm
100
Opening angle
120
Long description
Hinge with damping manufactured in acid proof stainless steel with a pin in acid proof stainless steel. The torque is 15 Nm/pc and the opening angel is 120 degrees. Special products can be delivered on request, if the standard range does not fit the requirem
Product data
or create an account to view prices, download datasheets and CAD files *
Create account*not available on all products
