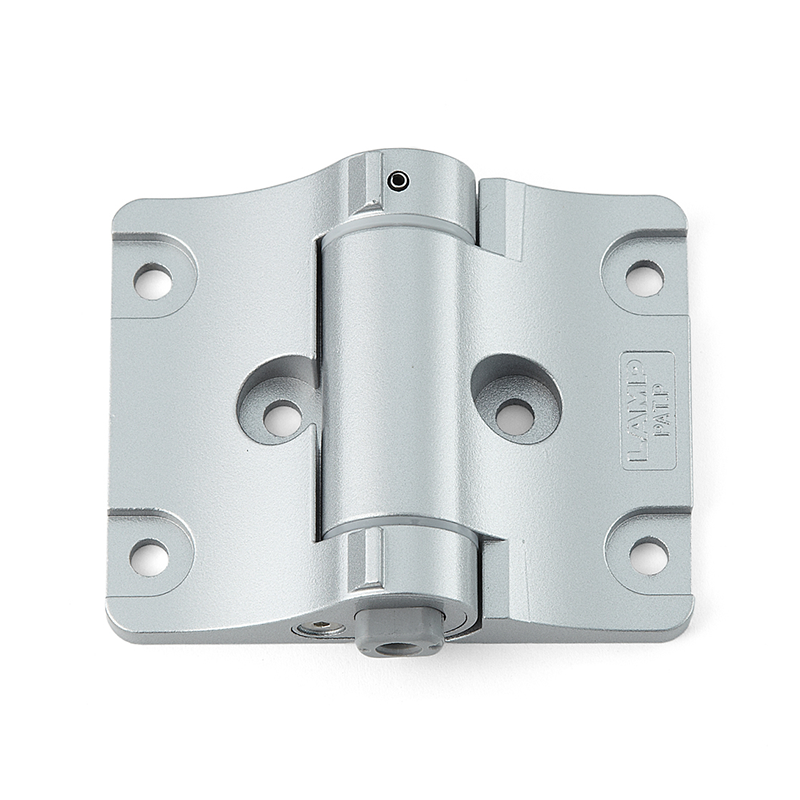

Hinge with damping, aluminium, inside mounting, torque=2,5, L=63, B=80
MT110068
Hinge with damping manufactured in aluminium with a pin in stainless steel. The torque is 1,7 - 2,5 Nm/pc and the opening angle is 100 degrees. RoHS 2 approved. Special products can be delivered on request, if the standard range does not fit the requirements.
Pin material
Stainless steel
Material type
Aluminium
Mounting type
Inside mounting
Drejningsmoment i N.m
2.5
Height in mm
21.5
Length i mm
63
Opening angle
100
Long description
Hinge with damping manufactured in aluminium with a pin in stainless steel. The torque is 1,7 - 2,5 Nm/pc and the opening angle is 100 degrees. RoHS 2 approved. Special products can be delivered on request, if the standard range does not fit the requirements.
Product data
