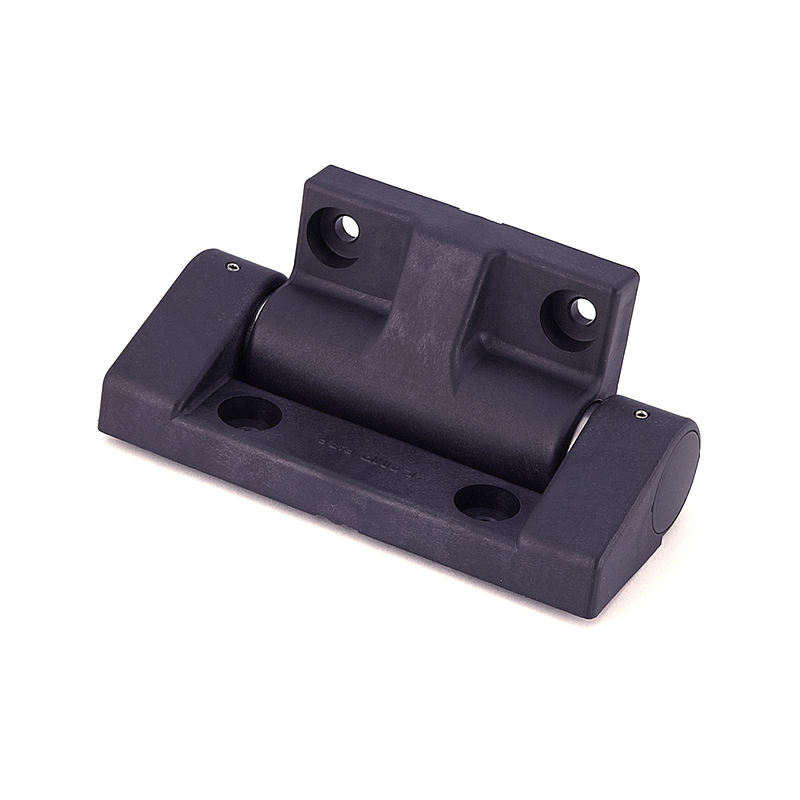

Hinge with damping, pbt plastic, inside mounting, torque=7, L=115, B=72
MT110077
Hinge with damping manufactured in pbt plastic with a pin in stainless steel. The torque is 5 - 7 Nm/pair and the opening angel is 115 degrees. Special products can be delivered on request, if the standard range does not fit the requirements.
Pin material
Stainless steel
Material type
PBT plastic
Mounting type
Inside mounting
Torque in N.m
7

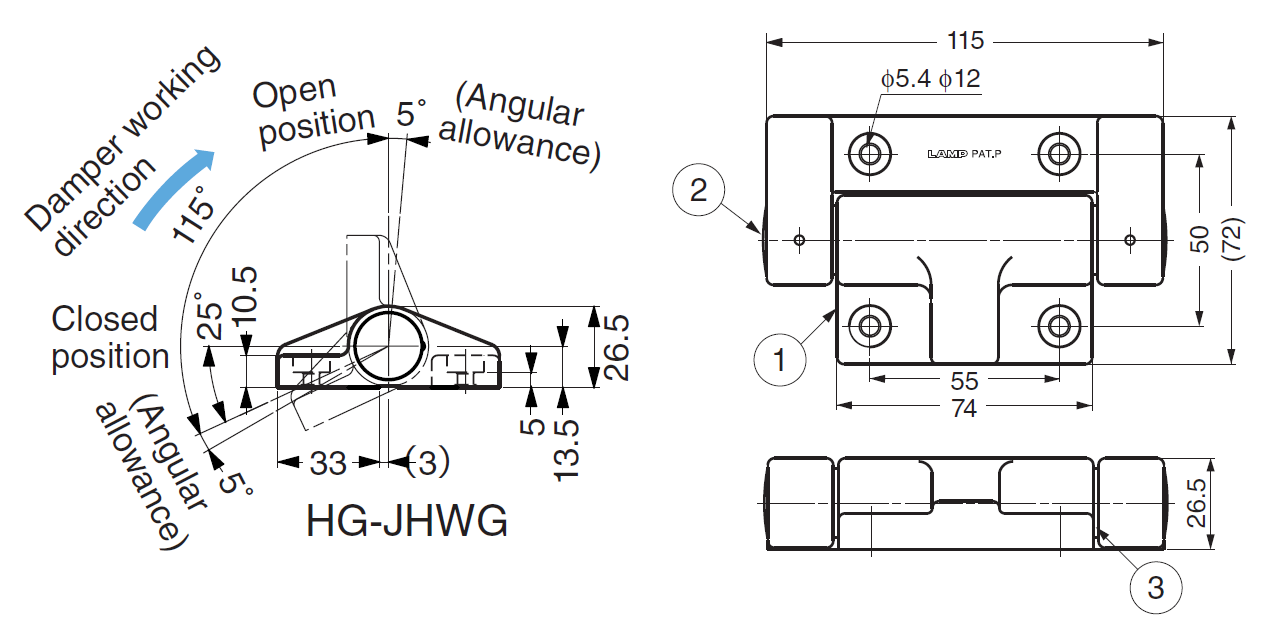

Height in mm
26.5
Length in mm
115
Opening angle
115
Long description
Hinge with damping manufactured in pbt plastic with a pin in stainless steel. The torque is 5 - 7 Nm/pair and the opening angel is 115 degrees. Special products can be delivered on request, if the standard range does not fit the requirements.
