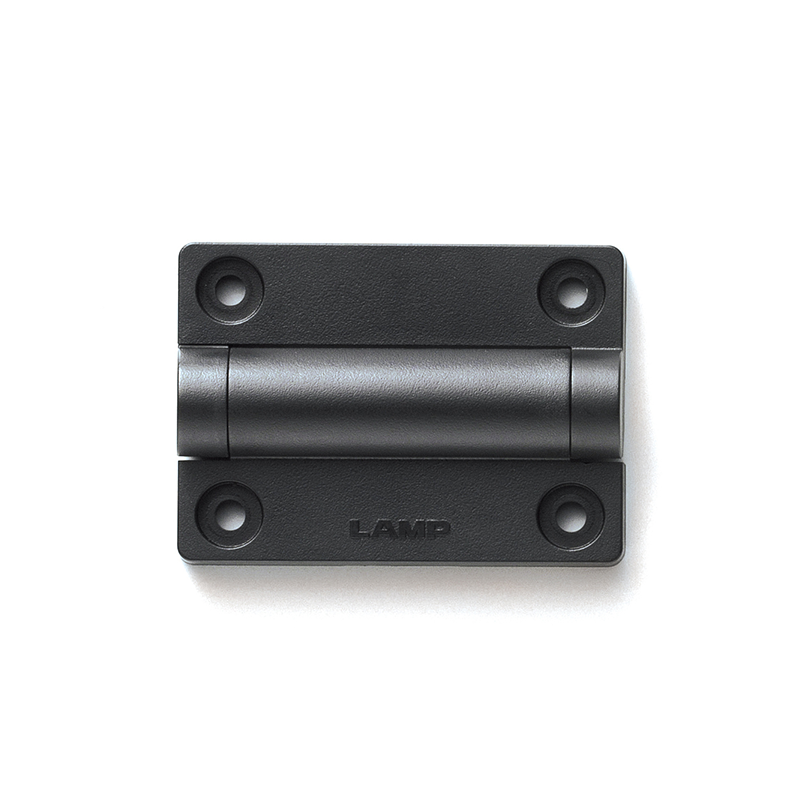

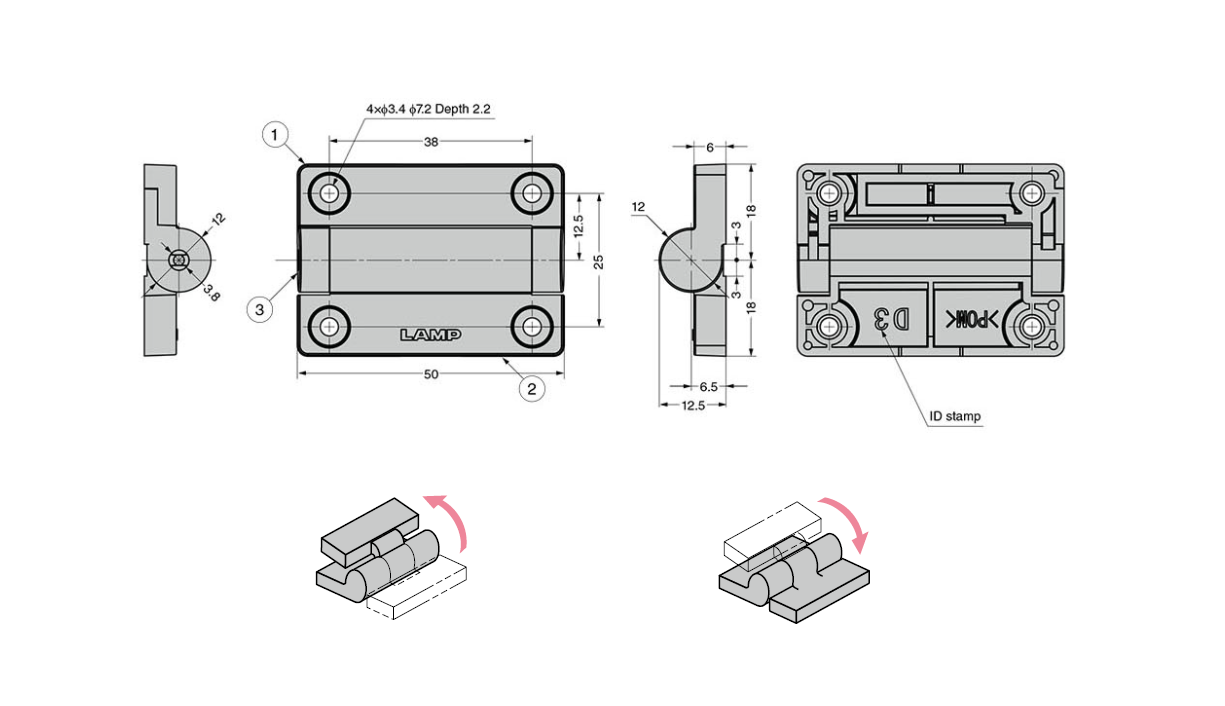

Hinge with damping, pom plastic, universal mounting, torque=0,038, L=50, B=36
MT111548
Hinge with damping in two directionn manufactured in pom plastic. The torque is 0,022 - 0,038Nm/pc. and the opening angle is 270 degrees. RoHS 2 approved. Special products can be delivered on request, if the standard range does not fit the requirements.
Material type
POM plastic
Mounting type
Universal
Torque in N.m
0.038
Height in mm
12.5
Length in mm
50
Opening angle
270
Long description
Hinge with damping in two directions manufactured in pom plastic. The torque is 0,022 - 0,038Nm/pc. and the opening angle is 270 degrees. RoHS 2 approved. Special products can be delivered on request, if the standard range does not fit the requirements.
Product data
or create an account to view prices, download datasheets and CAD files *
Create account*not available on all products
