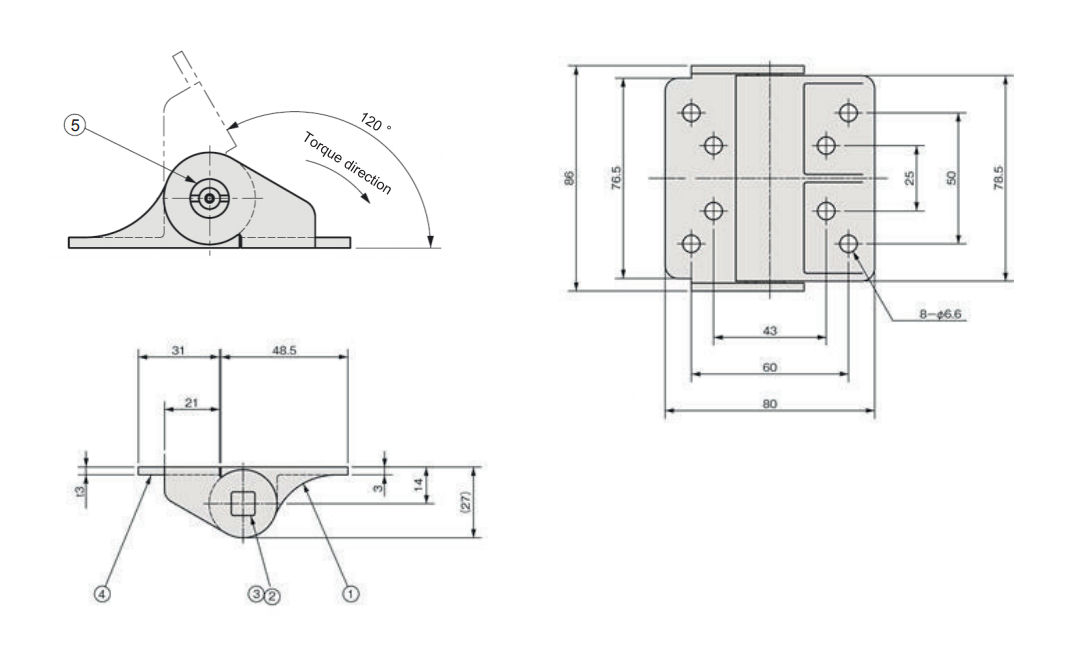

Hinge with damping, die-cast zinc, top mounting, torque=10, L=86, B=80
MT111026
Hinge with damping manufactured in die-cast zinc with a pin in steel. The torque is 10 Nm/pc and the opening angel is 120 degrees. Special products can be delivered on request, if the standard range does not fit the requirements.
Leaf material
Stainless steel
Pin material
Steel
Material type
Die-cast zinc
Mounting type
Top mounting
Torque in N.m
10
Height in mm
27
Length in mm
86
Opening angle
120
Long description
Hinge with damping manufactured in die-cast zinc with a pin in steel. The torque is 10 Nm/pc and the opening angel is 120 degrees. Special products can be delivered on request, if the standard range does not fit the requirements.
