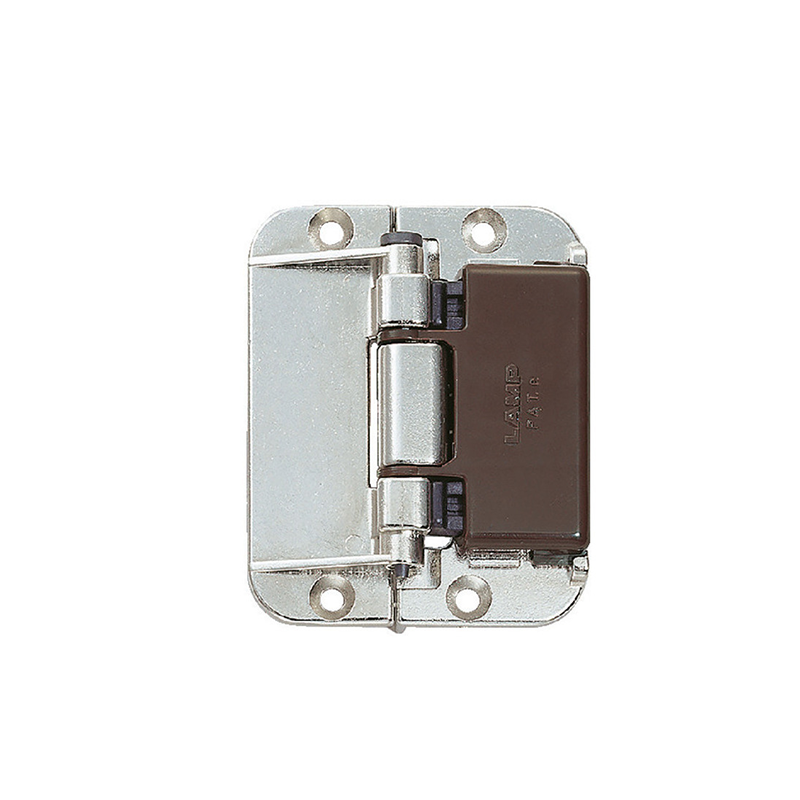

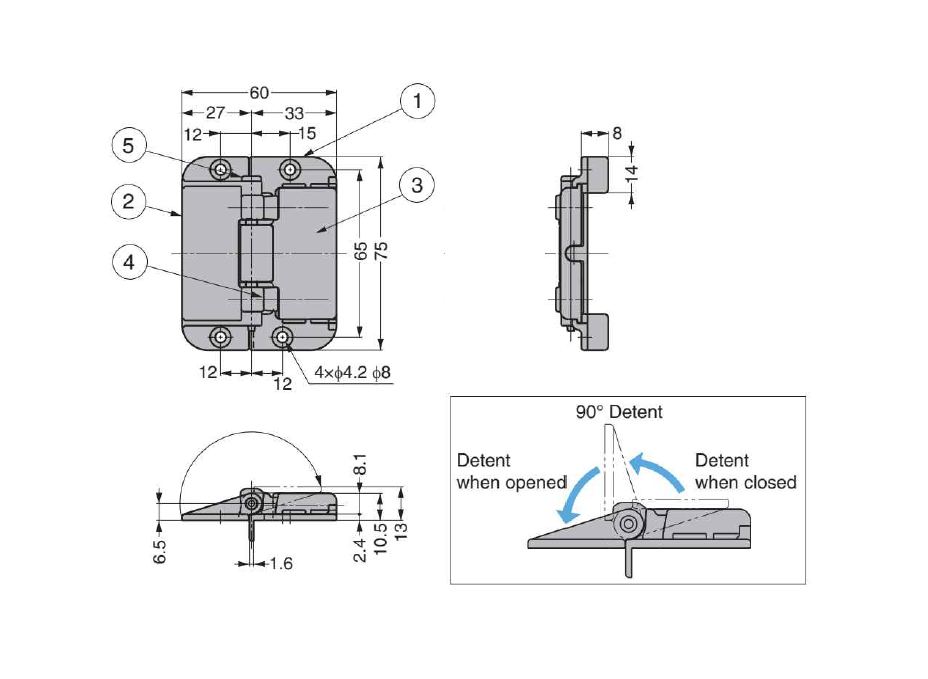

Detent hinge, die-cast zinc, L=75, B=60, H=13
MT111413
Detent hinge manufactured in die-cast zinc and pom plastic with 3 optional position(s) and with a stopangel of 90 degrees. Removeable steel pin. RoHS2 approved. Special products can be delivered on request if the standard range do not fulfill the requirements.
Pin material
Steel
Fjedervirkning
No
Material type
Die-cast zinc
Surface finish
Nickel-plated
Stop positioner
3
Stop angle in °
90
Hole diameter in mm
4.2
Height in mm
13
Length i mm
75
Thickness in mm
2.4
Long description
Detent hinge manufactured in die-cast zinc and pom plastic with 3 optional position(s) and with a stopangel of 90 degrees. Removeable steel pin. RoHS2 approved. Special products can be delivered on request if the standard range do not fulfill the requirements.
