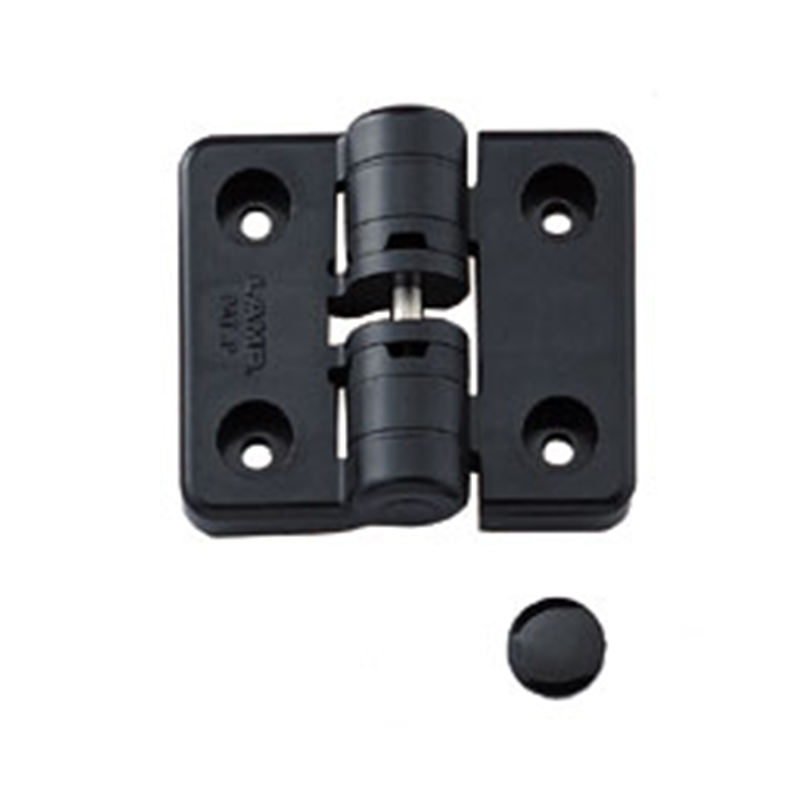

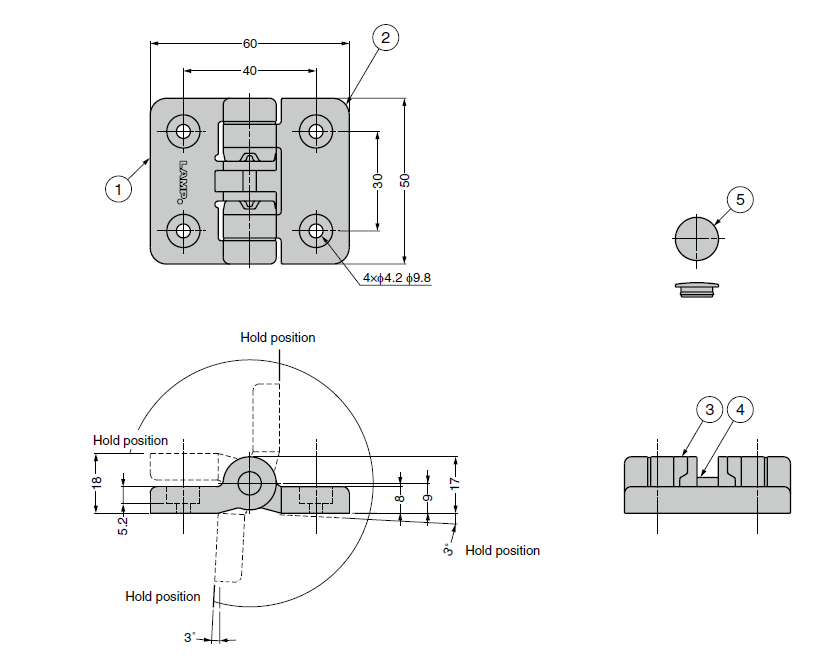

Detent hinge, black pom plastic, L=50, B=60, H=17
MT111390
Detent hinge manufactured in pom plastic with 4 optional position(s) and with a stopangel of 90 degrees. Special products can be delivered on request if the standard range do not fulfill the requirements.
Pin material
Stainless steel
Colour
Black
Spring-loaded
No
Material type
POM plastic
Stop angle
90
Torque in N.m
0.49
Hole diameter in mm
4.2
Height in mm
17
Length in mm
50
Thickness in mm
8
Long description
Detent hinge manufactured in pom plastic with 4 optional position(s) and with a stopangel of 90 degrees. Special products can be delivered on request if the standard range do not fulfill the requirements.
