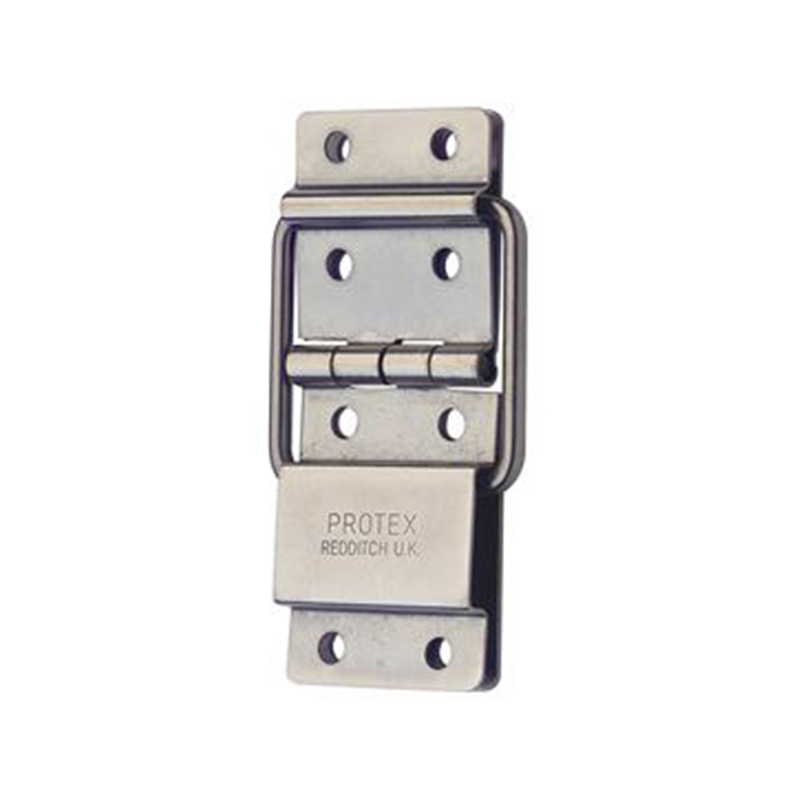

Detent hinge, stainless steel, L=97, B=52, H=7,7
MT108497
Detent hinge manufactured in stainless steel with 1 optional position(s) and with a stopangel of 90 degrees. Special products can be delivered on request if the standard range do not fulfill the requirements.
Spring-loaded
No
Material type
Stainless steel
Stop angle
90
Torque in N.m
0
Hole diameter in mm
5.1
Height in mm
7.7
Length in mm
97
Offset height in mm
0
Thickness in mm
0
Net Weight (Kg)
0.082
HS Code
8302100090
Country of Origin
GB
Long description
Detent hinge manufactured in stainless steel with 1 optional position(s) and with a stopangel of 90 degrees. Special products can be delivered on request if the standard range do not fulfill the requirements.
