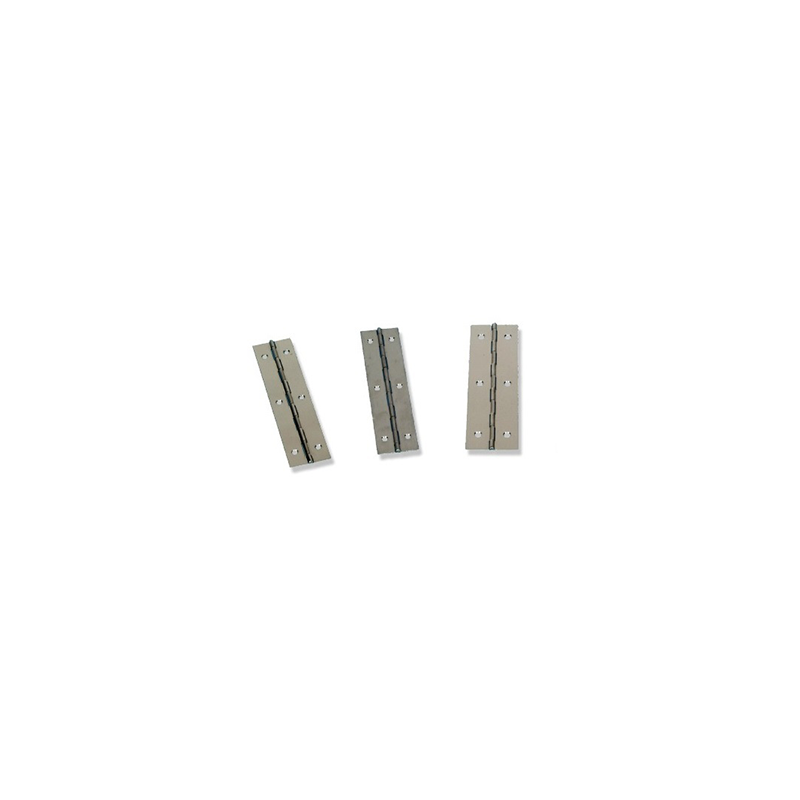

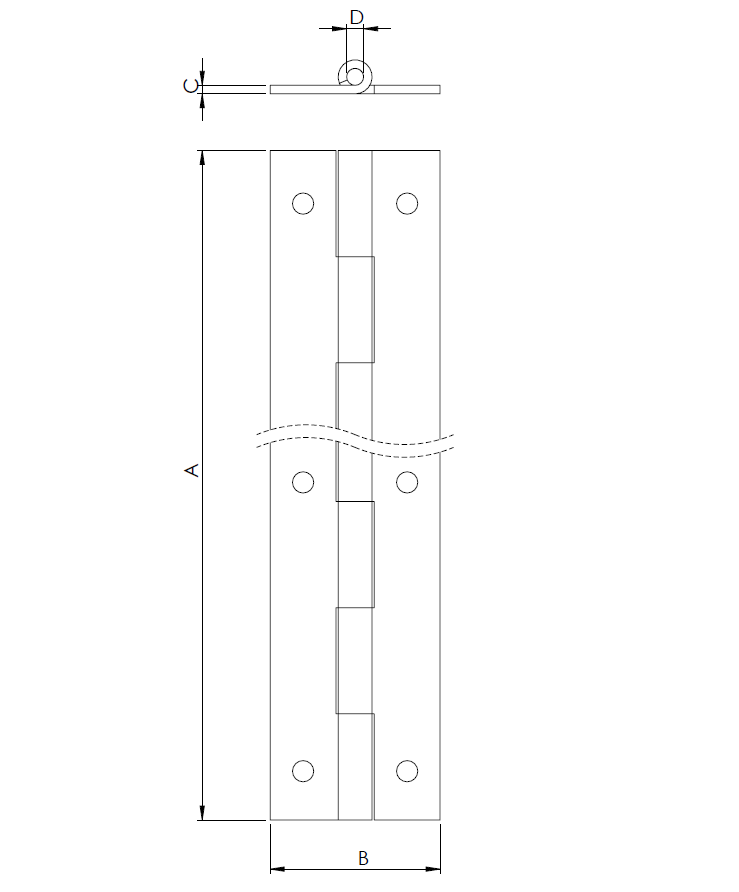

Piano hinge w/holes, stainless steel, L=1168,4, B=50, T=1,25
MT111534
Piano hinge w/holes manufactured in stainless steel. Special products can be delivered on request if the products in the standard range do not fulfill the requirements.
Material type
Stainless steel
Type
With holes
Pin diameter in mm
2.5
Length in mm
1168.4
Thickness in mm
1.25
Net Weight (Kg)
0.668
HS Code
8302100090
Country of Origin
DE
Long description
Piano hinge w/holes manufactured in stainless steel. Special products can be delivered on request if the products in the standard range do not fulfill the requirements.
Product data
