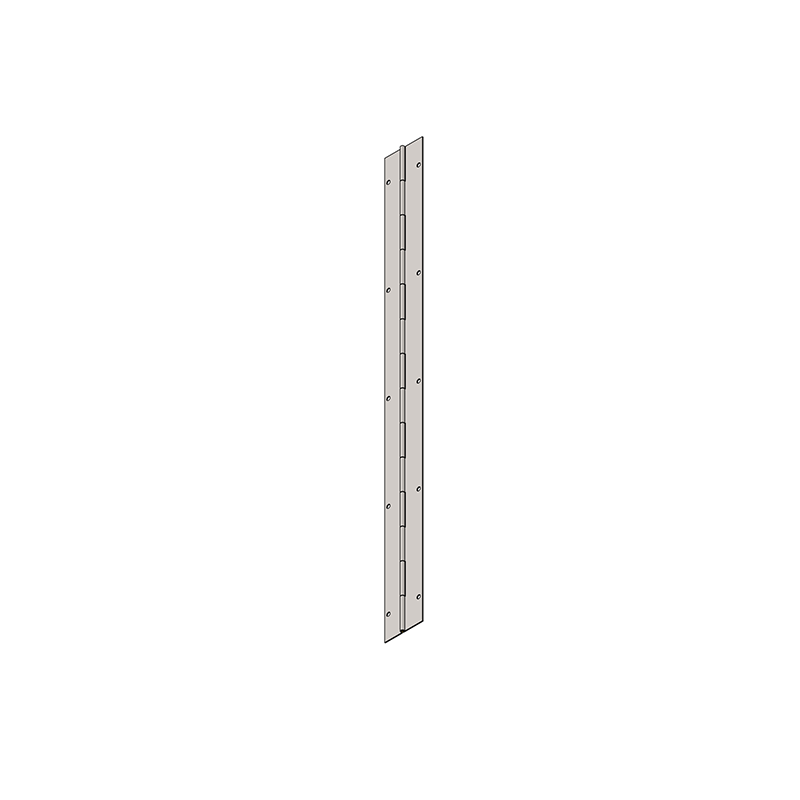

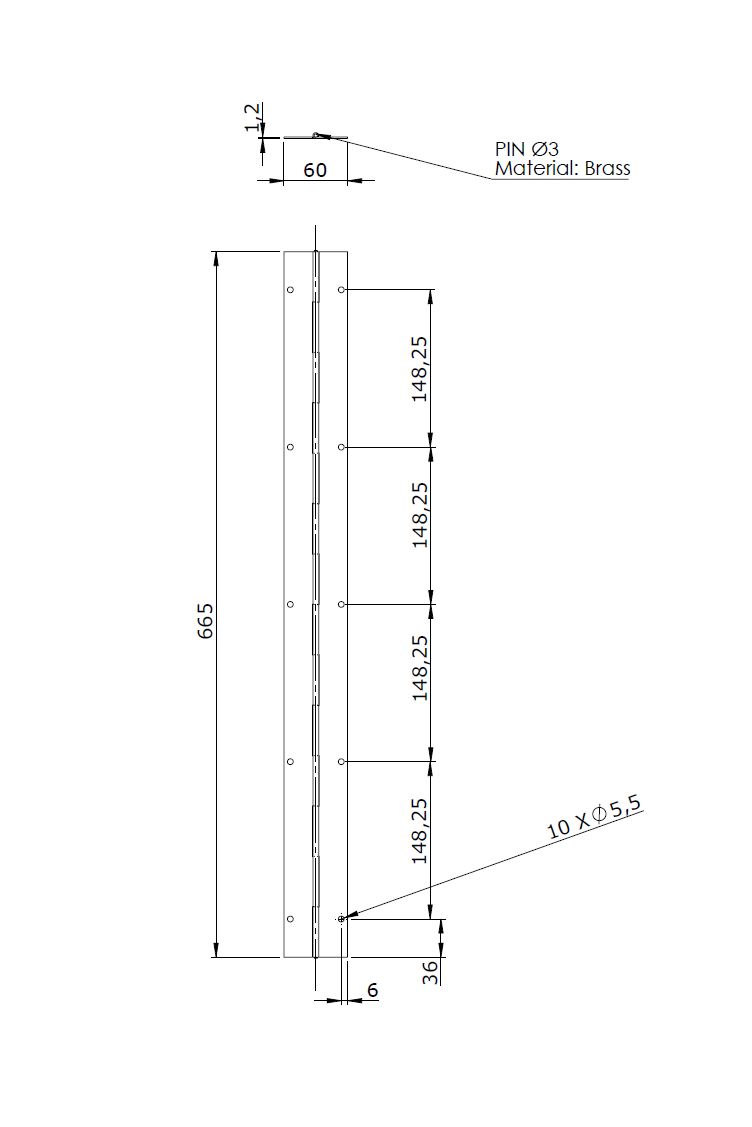

Piano hinge w/holes, steel, L=665, B=60, T=1,2
MT110050
Piano hinge w/holes manufactured in steel. Special products can be delivered on request if the products in the standard range do not fulfill the requirements.
Pin material
Brass
Material type
Steel
Surface finish
Untreated
Type
With holes
Pin diameter in mm
3
Length in mm
665
Thickness in mm
1.2
Nettovægt
0.03
Varekode
8302100090
Lande-/områdekode for oprindelse
ES
Long description
Piano hinge w/holes manufactured in steel. Special products can be delivered on request if the products in the standard range do not fulfill the requirements.
