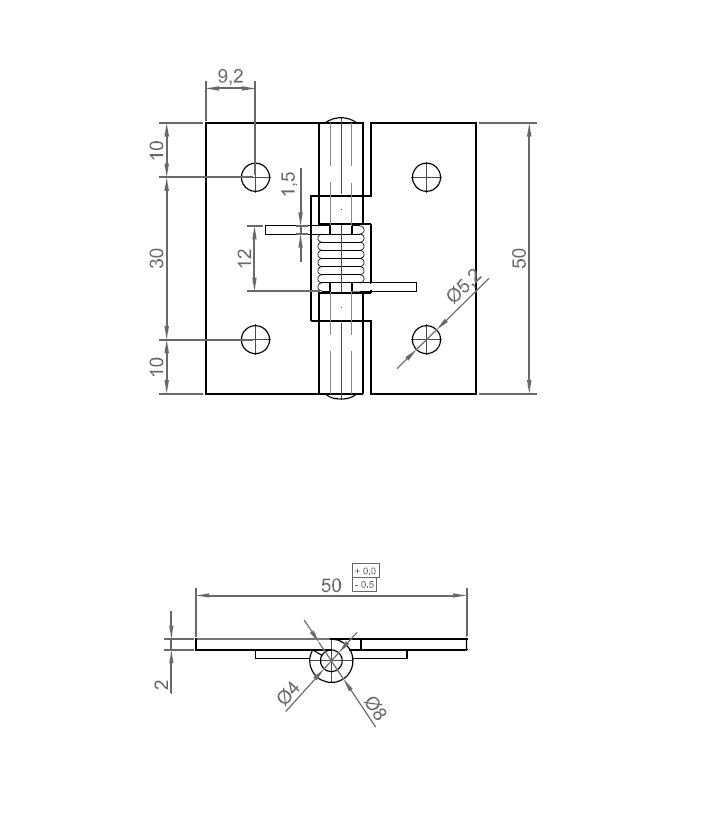

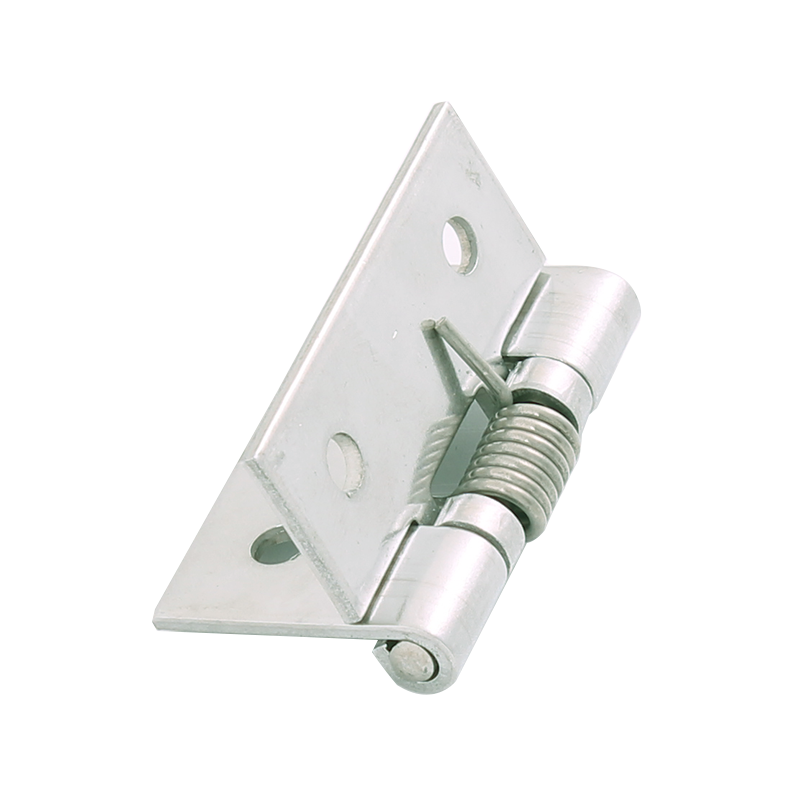

Spring hinge, stainless steel, open, not adjustable, L=50, B=50, H=9
MT104662
Spring hinge of the type 'open', which is manufactured in stainless steel. The hinge is not adjustable.
Spring thickness: Ø1,5mm.
Special and custom products can be delivered on request if the products in the standard range do not meet the requirements.
Spring thickness: Ø1,5mm.
Special and custom products can be delivered on request if the products in the standard range do not meet the requirements.
Adjustable
No
Material type
Stainless steel
Type
Open
Hole diameter in mm
5.2
Height in mm
8
Length i mm
50
Thickness in mm
2
Nettovægt
0.048
Varekode
83021000
Lande-/områdekode for oprindelse
ES
Long description
Spring hinge of the type 'open', which is manufactured in stainless steel. The hinge is not adjustable.
Spring thickness: Ø1,5mm.
Special and custom products can be delivered on request if the products in the standard range do not meet the requirements.
Spring thickness: Ø1,5mm.
Special and custom products can be delivered on request if the products in the standard range do not meet the requirements.
