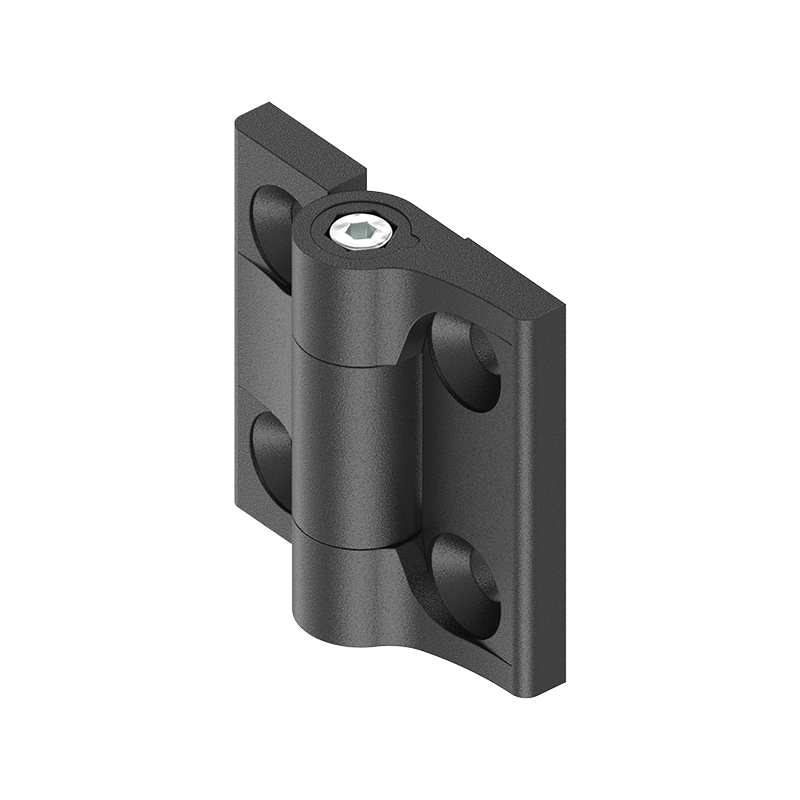

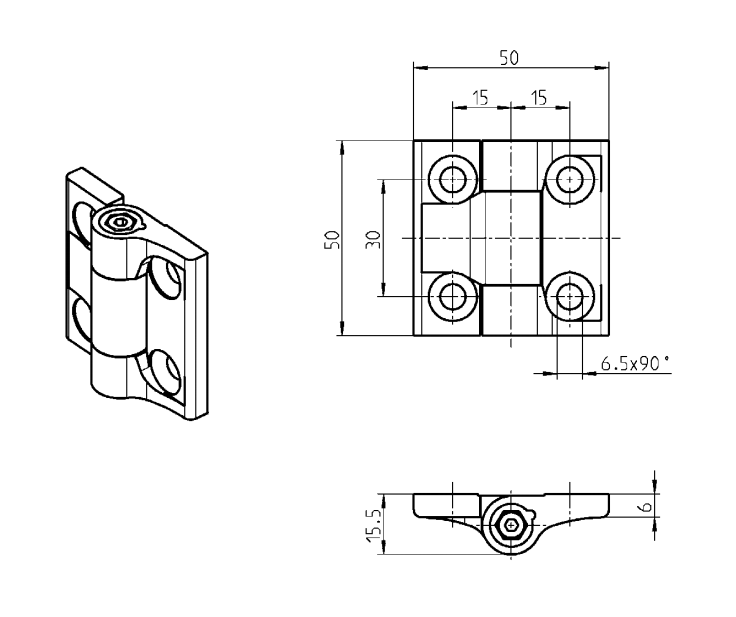

Friction hinge, die-cast zinc, adjustable, L=50, B=50, H=15,5
MT102341
Adjustable friction hinge manufactured in die-cast zinc with an adjustable torque of 0 - 4 Nm. Special products can be delived on request, if the products in the standard range do not meet the requirements.
Adjustable
Yes
Material type
Die-cast zinc
Surface finish
Black powder coated
Torque in N.m
4
Hole diameter in mm
6.5
Height in mm
15.5
Length in mm
50
Thickness in mm
6
Net Weight (Kg)
0.09169
HS Code
8302100090
Country of Origin
BA
Long description
Adjustable friction hinge manufactured in die-cast zinc with an adjustable torque of 0 - 4 Nm. Special products can be delived on request, if the products in the standard range do not meet the requirements.
Product data
