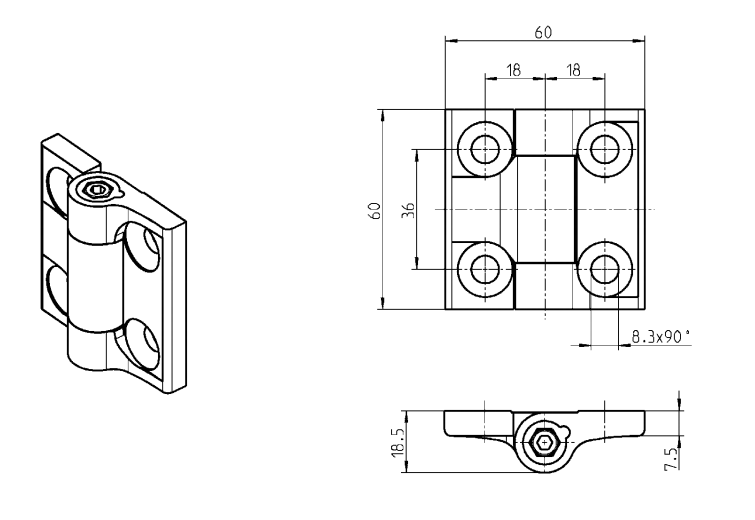

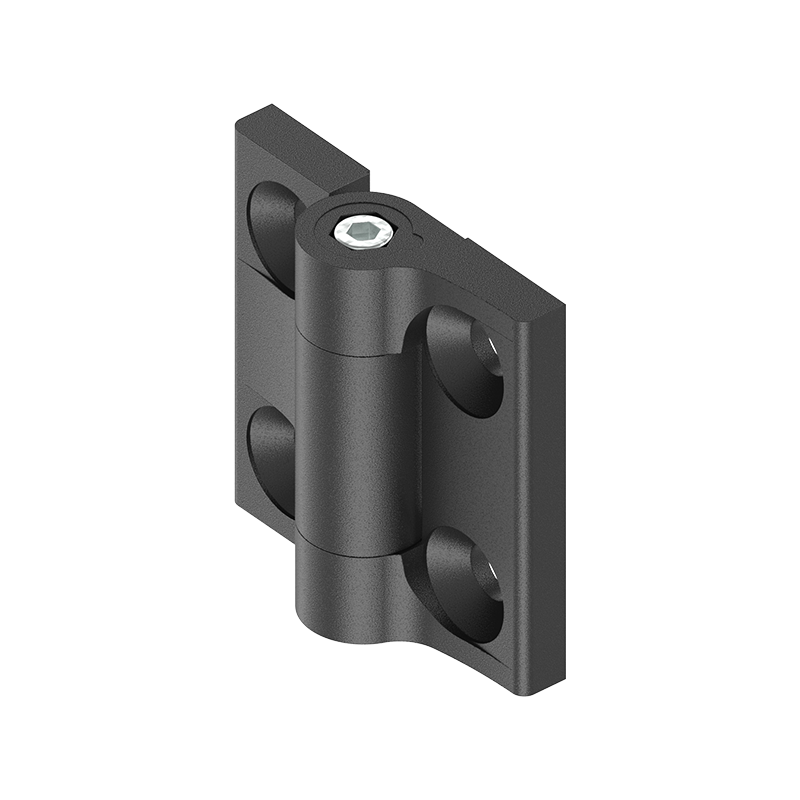

Friction hinge, die-cast zinc, adjustable, L=60, B=60, H=18,5
MT102350
Adjustable friction hinge manufactured in die-cast zinc with an an adjustable torque of 0 - 6,5 Nm. Special products can be delived on request, if the products in the standard range do not meet the requirements.
Adjustable
Yes
Material type
Die-cast zinc
Surface finish
Black powder coated
Drejningsmoment i N.m
6.5
Hole diameter in mm
8.3
Height in mm
18.5
Length i mm
60
Thickness in mm
7.5
Long description
Adjustable friction hinge manufactured in die-cast zinc with an an adjustable torque of 0 - 6,5 Nm. Special products can be delived on request, if the products in the standard range do not meet the requirements.
Product data
