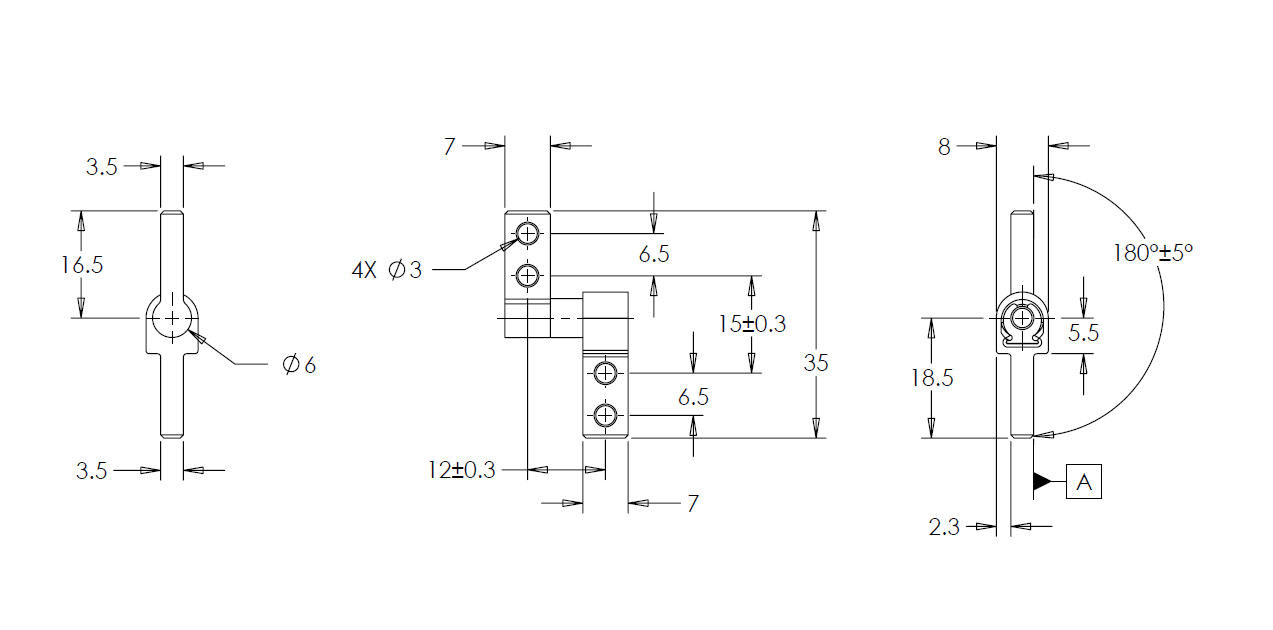

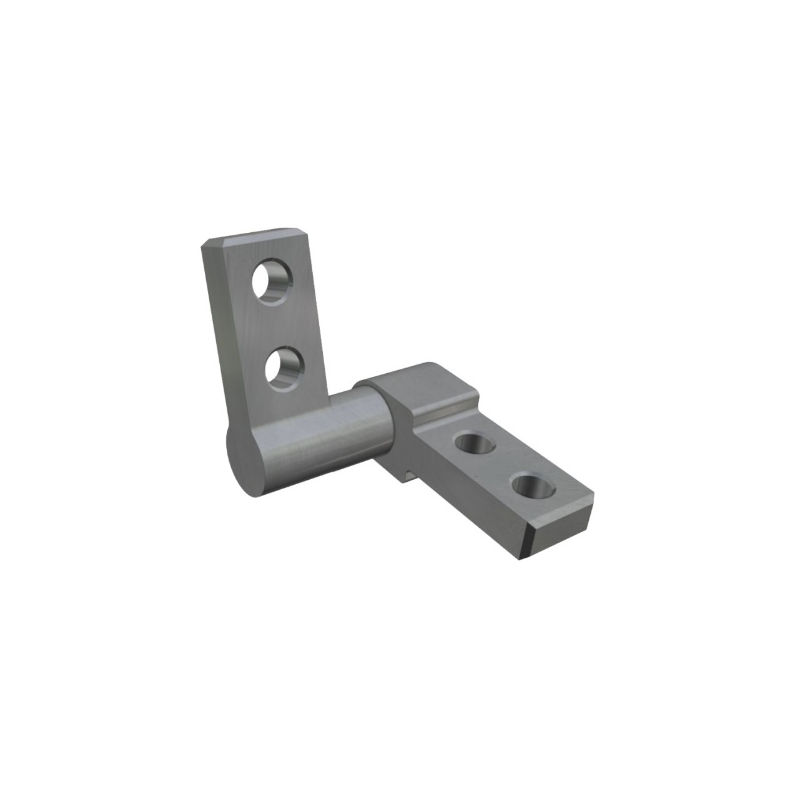

Friction hinge, die-cast zinc, not adjustable, L=19, B=35, H=8
MT111544
Non adjustable friction hinge manufactured in die-cast zinc with a torque of 0,65 Nm. Special products can be delived on request, if the products in the standard range do not meet the requirements.
Adjustable
No
Material type
Die-cast zinc
Torque in N.m
0.65
Hole diameter in mm
3
Height in mm
8
Length in mm
19
Thickness in mm
3.5
Opening angle
360
Long description
Non adjustable friction hinge manufactured in die-cast zinc with a torque of 0,65 Nm. Special products can be delived on request, if the products in the standard range do not meet the requirements.
