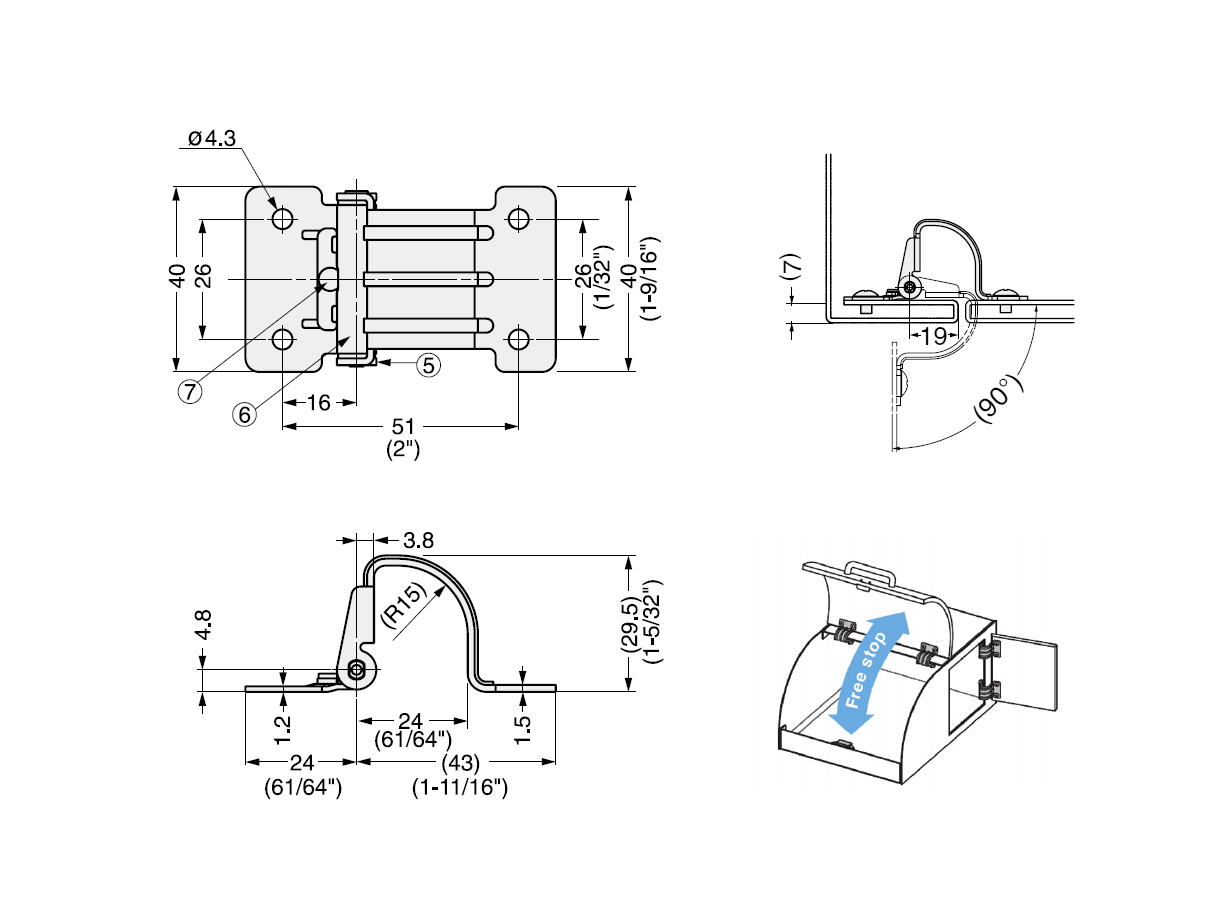

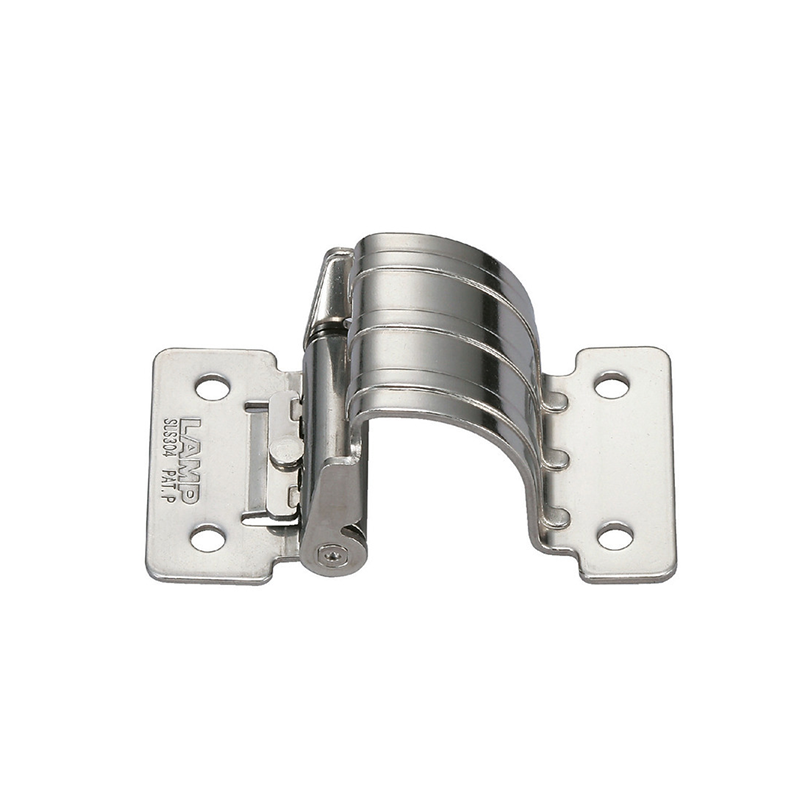

Friction hinge, stainless steel, not adjustable, L=40, B=67, H=29,5
MT110081
Non adjustable friction hinge manufactured in stainless steel with a torque of 0,35 Nm. Special products can be delived on request, if the products in the standard range do not meet the requirements.
Adjustable
No
Material type
Stainless steel
Torque in N.m
0.35
Hole diameter in mm
4.3
Height in mm
29.5
Length in mm
40
Thickness in mm
1.5
Long description
Non adjustable friction hinge manufactured in stainless steel with a torque of 0,35 Nm. Special products can be delived on request, if the products in the standard range do not meet the requirements.
Product data
