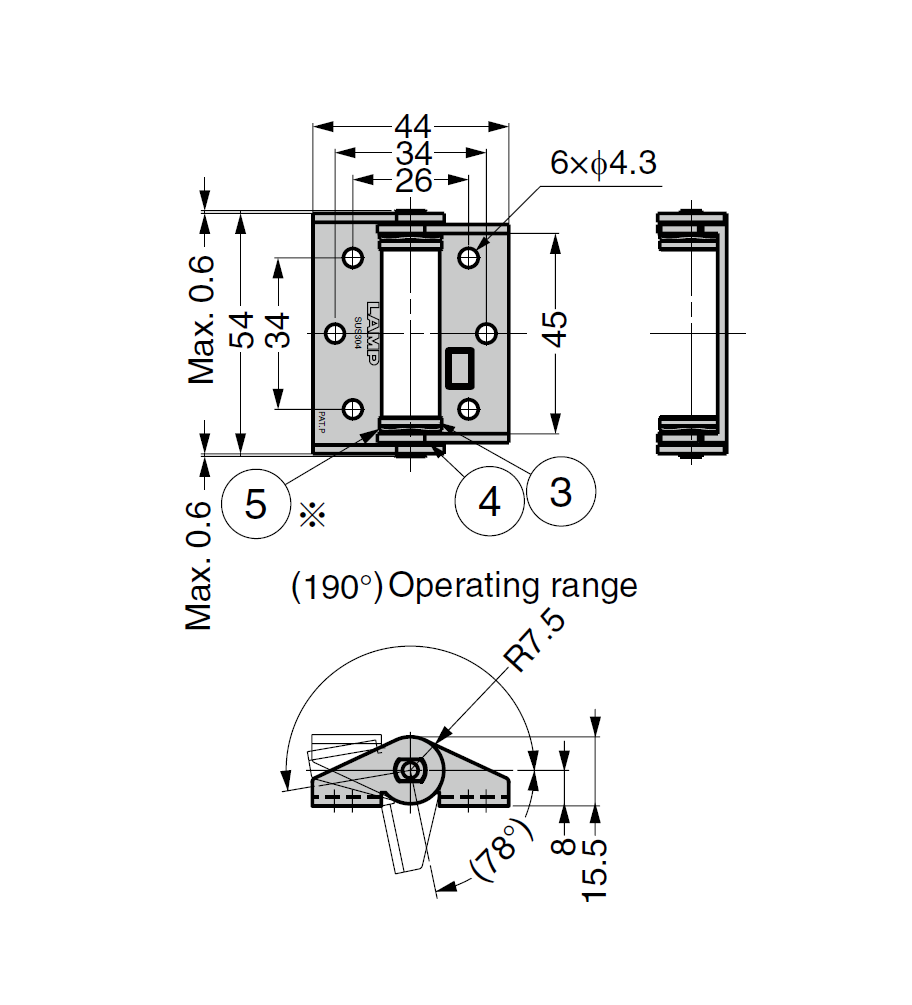

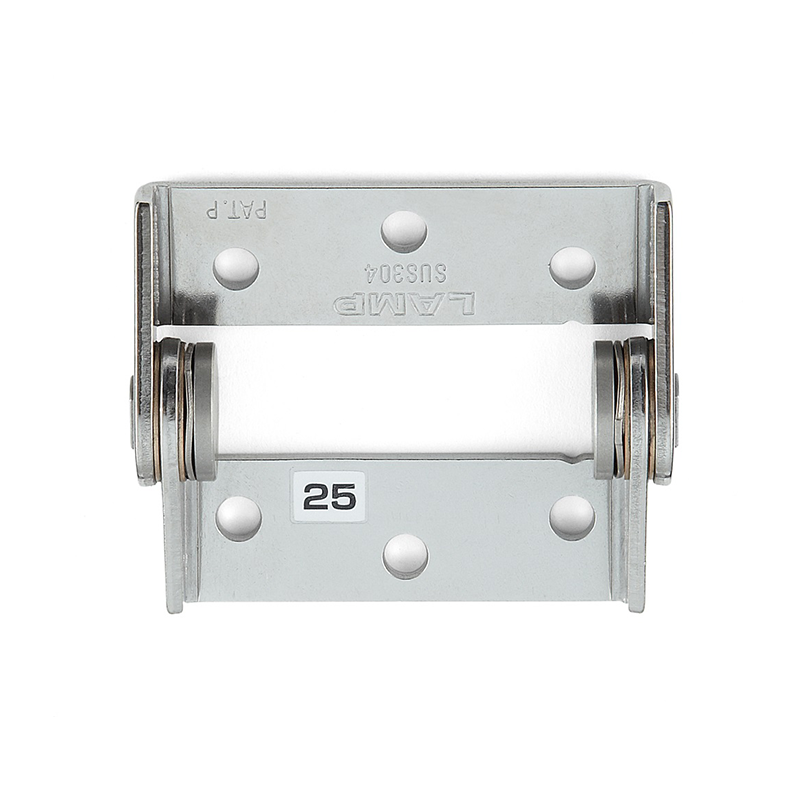

Friction hinge, stainless steel, not adjustable, L=54, B=44, H=15,5
MT110159
Not adjustable friction hinge manufactured in stainless steel with a torque of 2,5 Nm. RoHS 2 approved. Opening angle 190°. Special products can be delived on request, if the products in the standard range do not meet the requirements.
Adjustable
No
Material type
Stainless steel
Drejningsmoment i N.m
2.5
Hole diameter in mm
4.3
Height in mm
15.5
Length i mm
54
Thickness in mm
2
Long description
Not adjustable friction hinge manufactured in stainless steel with a torque of 2,5 Nm. RoHS 2 approved. Opening angle 190°. Special products can be delived on request, if the products in the standard range do not meet the requirements.
