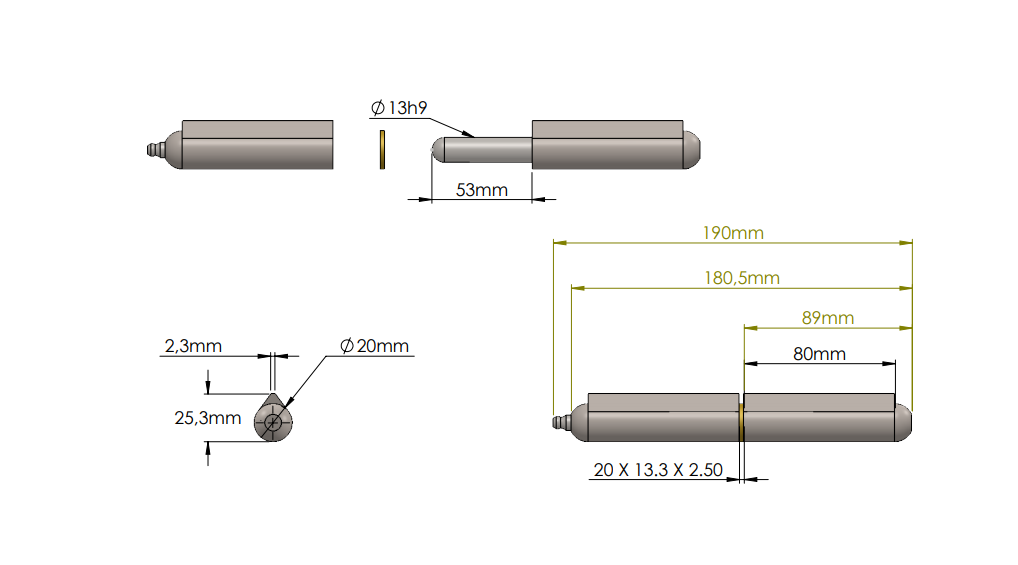

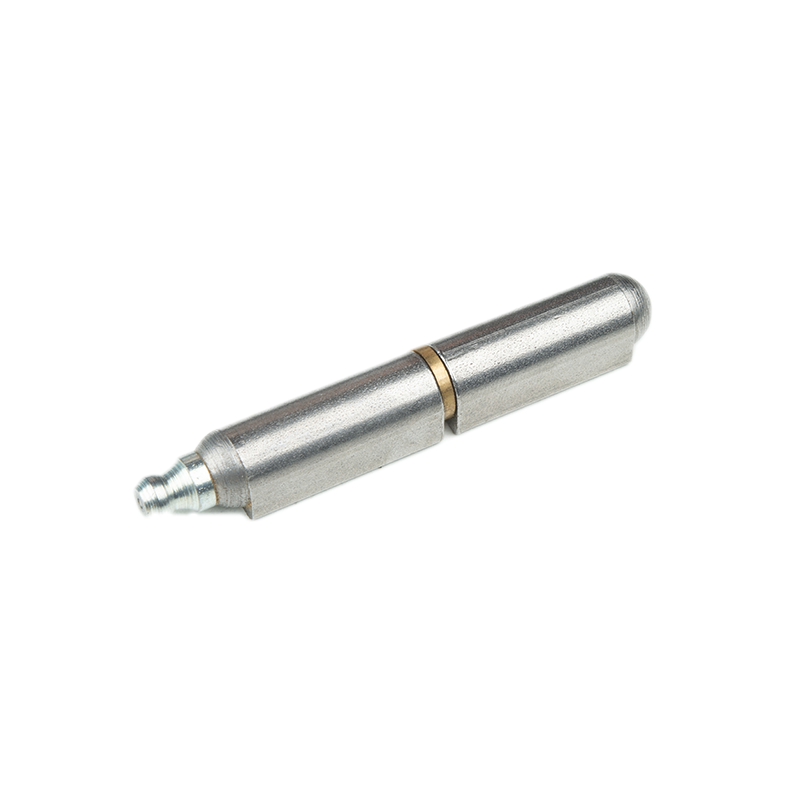

Weld hinge, steel, teardrop-shaped, w/grease nipple, L=180, B=25,3
MT100417
Teardrop-shaped weld hinge with round head manufactured in steel. The hinge is w/grease nipple and with lift off pin. Special products can be delivered on request if the standard range do not meet the requirements.
Pin type
Lift off
Shape
Teardrop-shaped
Head
Round head
Material
C15Pb
Material type
Steel
Surface finish
Untreated
Skivemateriale
Stainless steel
Type
With grease nipple
Diameter in mm
20
Pindiameter in mm
13
Length i mm
180
Long description
Teardrop-shaped weld hinge with round head manufactured in steel. The hinge is w/grease nipple and with lift off pin. Special products can be delivered on request if the standard range do not meet the requirements.
Product data
