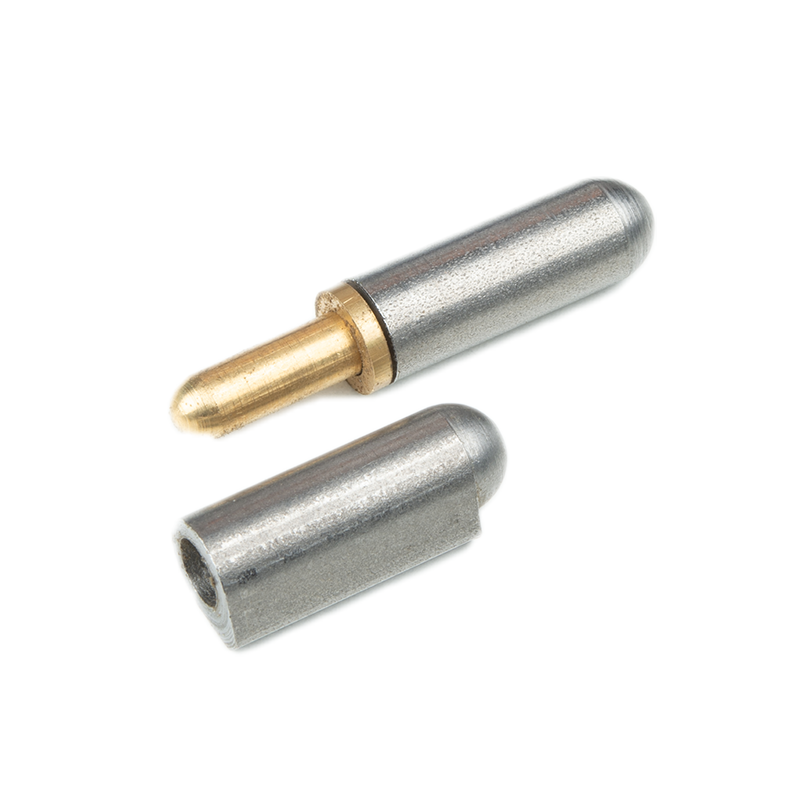

Weld hinge, steel, teardrop-shaped, w/o grease nipple, L=40, B=10
MT100381
Teardrop-shaped weld hinge with round head manufactured in steel. The hinge is w/o grease nipple and with lift off pin. Special products can be delivered on request if the standard range do not meet the requirements.
Pin material
Brass
Pin type
Lift off
Shape
Teardrop-shaped
Head
Round head
Material
C15Pb
Material type
Steel
Surface finish
Untreated
Skivemateriale
Stainless steel
Type
Without grease nipple

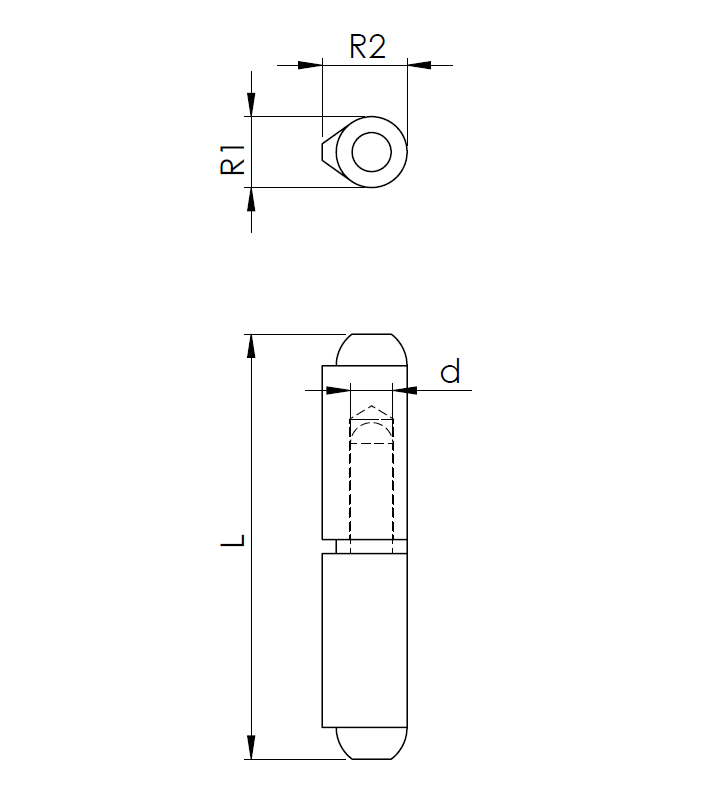

Diameter in mm
8
Pindiameter in mm
5
Length i mm
40
Long description
Teardrop-shaped weld hinge with round head manufactured in steel. The hinge is w/o grease nipple and with lift off pin. Special products can be delivered on request if the standard range do not meet the requirements.
