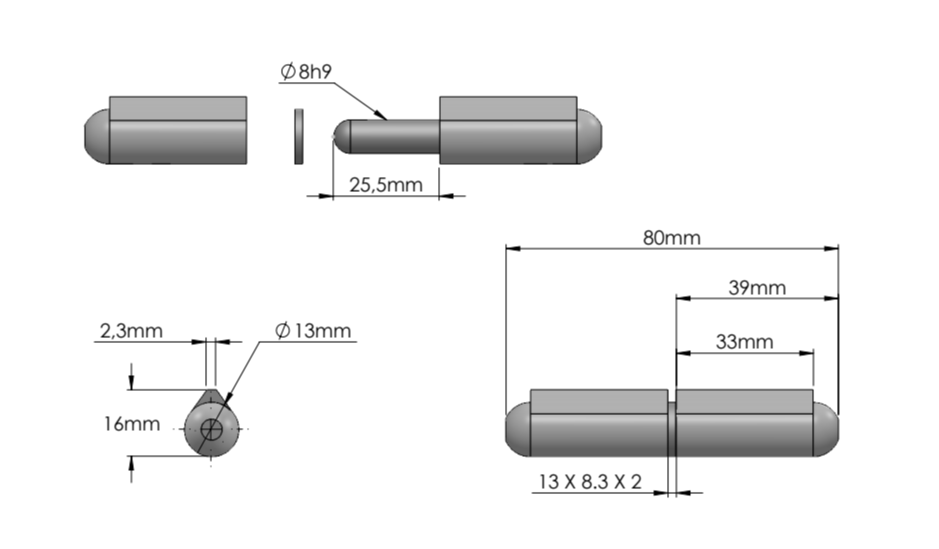

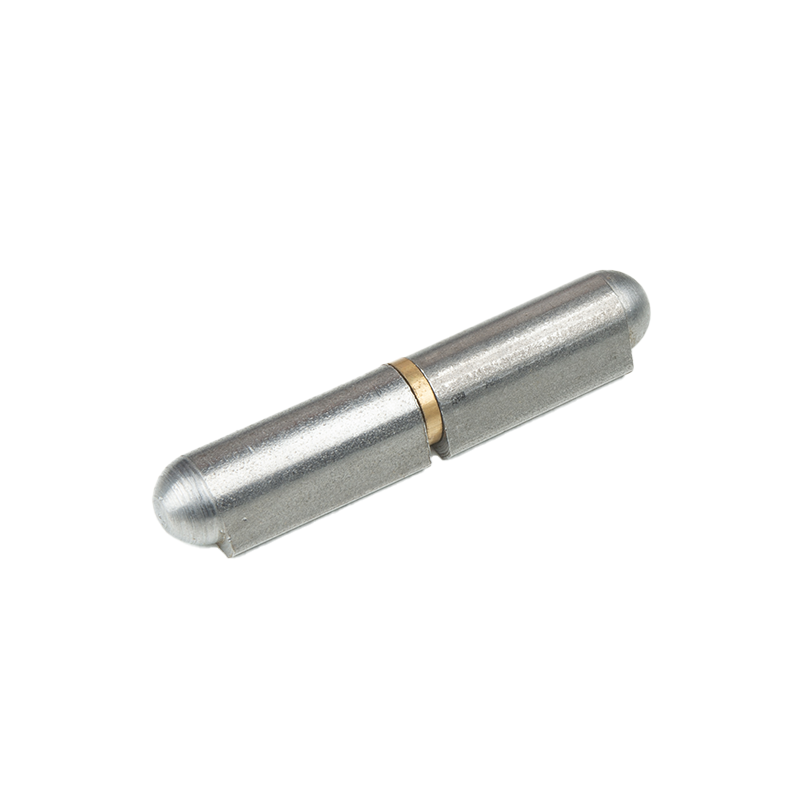

Weld hinge, steel, teardrop-shaped, w/o grease nipple, L=80, B=16
MT100371
Teardrop-shaped weld hinge with round head manufactured in steel. The hinge is w/o grease nipple and with lift off pin. Special products can be delivered on request if the standard range do not meet the requirements.
Pin type
Lift off
Shape
Teardrop-shaped
Head
Round head
Material
C15Pb
Material type
Steel
Surface finish
Untreated
Washer material
Stainless steel
Type
Without grease nipple
Diameter in mm
13
Pin diameter in mm
8
Length in mm
80
Long description
Teardrop-shaped weld hinge with round head manufactured in steel. The hinge is w/o grease nipple and with lift off pin. Special products can be delivered on request if the standard range do not meet the requirements.
