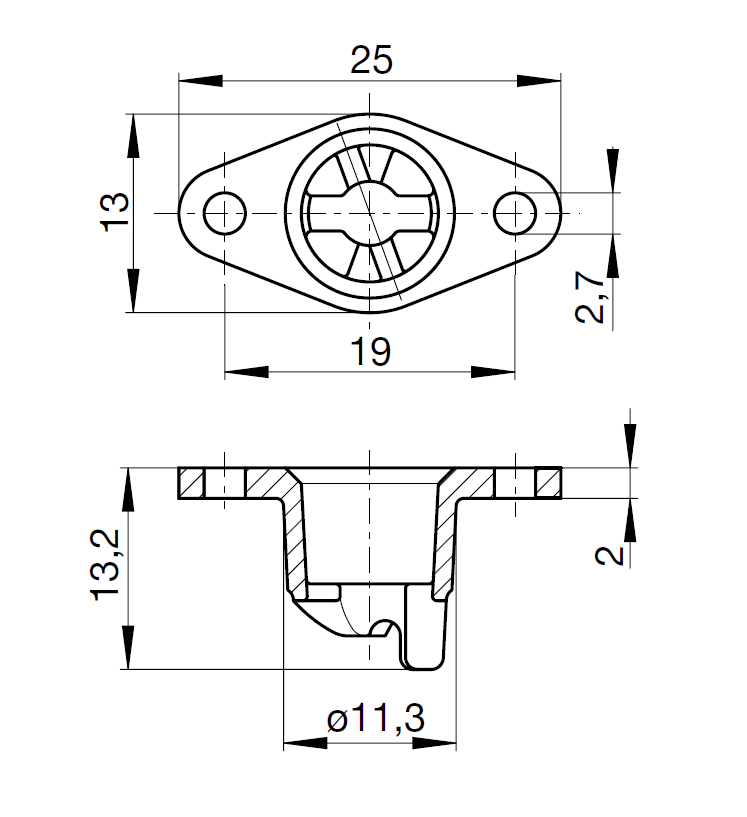

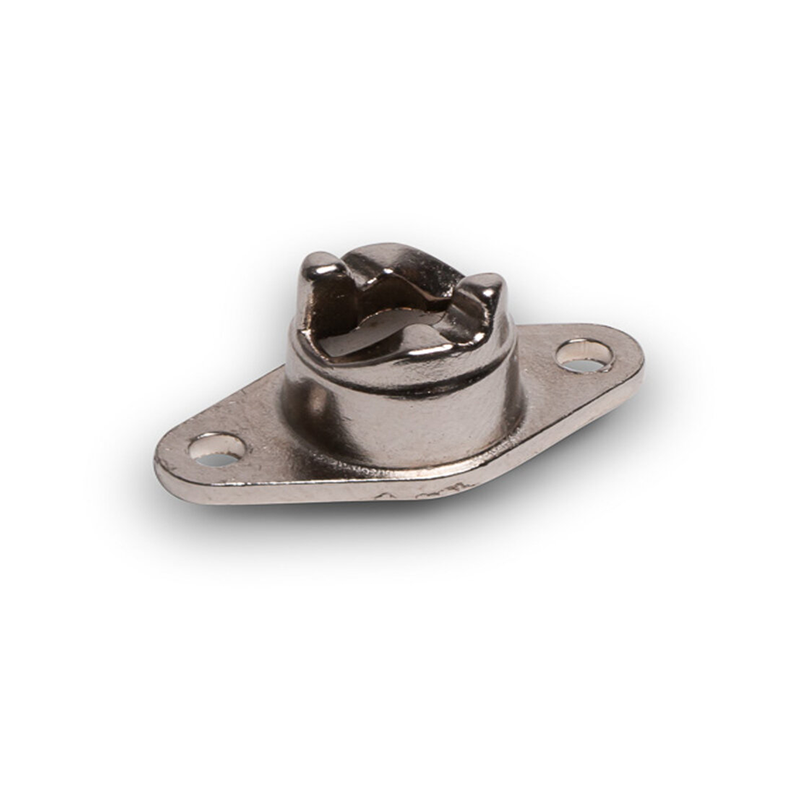

Bottom part, die-cast zinc, nickel-plated surface, thickness=2, height=13,2
MT106099
Bottom part manufactured in die-cast zinc with a nickel-plated surface.The thickness of the product is 2mm and the height is 13,2mm. We offer locking bolts, retaining washers, bottom parts and ciclips in many types and sizes, so please contact us if you cannot find what you are looking for.
Components
Bottom part
Material type
Die-cast zinc
Mounting type
Screw mounting
Surface finish
Nickel-plated
Series
410
Diameter in mm
11.3
Height in mm
13.2
Clamping width, max. in mm
0
Clamping width, min. in mm
0
Plate thickness max.
0
Tensile strenght, axial
0
Thickness in mm
2
Long description
Bottom part manufactured in die-cast zinc with a nickel-plated surface.The thickness of the product is 2mm and the height is 13,2mm. We offer locking bolts, retaining washers, bottom parts and ciclips in many types and sizes, so please contact us if you cannot find what you are looking for.
