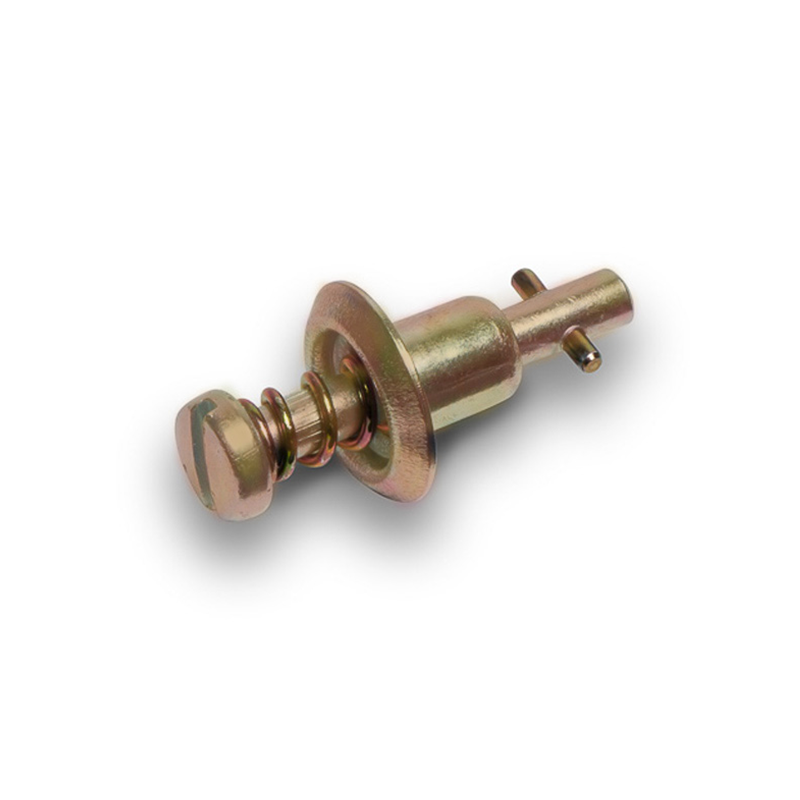

Locking bolt, steel, electro zinc plated and yellow chromated surface, shaft length=20,4mm, clamping width=3,75-4,5mm
MT106070
Locking bolt manufactured in steel with a electro zinc plated and yellow chromated surface. The product has a shaft length of 20,4mm and a clamping width of 3,75-4,5 mm. We offer locking bolts, retaining washers, bottom parts and ciclips in many types and sizes, so please contact us if you cannot find what you are looking for.
Components
Locking bolt
Collar
Normal
Material type
Steel
Surface finish
Electro zinc plated and yellow chromated
Series
410
Type
Slot
Diameter in mm
0
Height in mm
0
Clamping width, max. in mm
4.5
Clamping width, min. in mm
3.75
Closing distance
16.15
Plate thickness max.
0
Shaft length
20.4
Tensile strenght, axial
0
Thickness in mm
0
Long description
Locking bolt manufactured in steel with a electro zinc plated and yellow chromated surface. The product has a shaft length of 20,4mm and a clamping width of 3,75-4,5 mm. We offer locking bolts, retaining washers, bottom parts and ciclips in many types and sizes, so please contact us if you cannot find what you are looking for.
Product data
