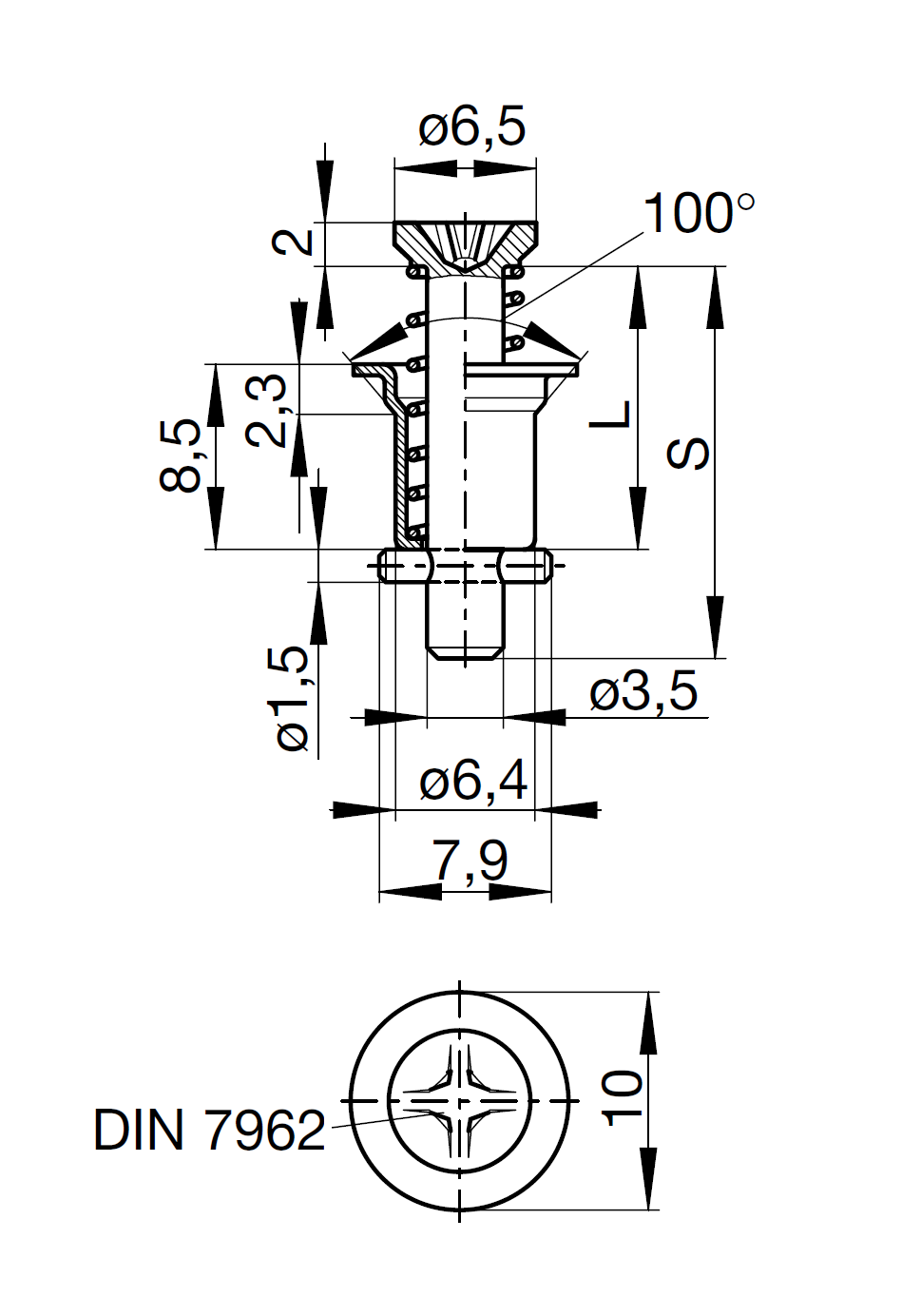

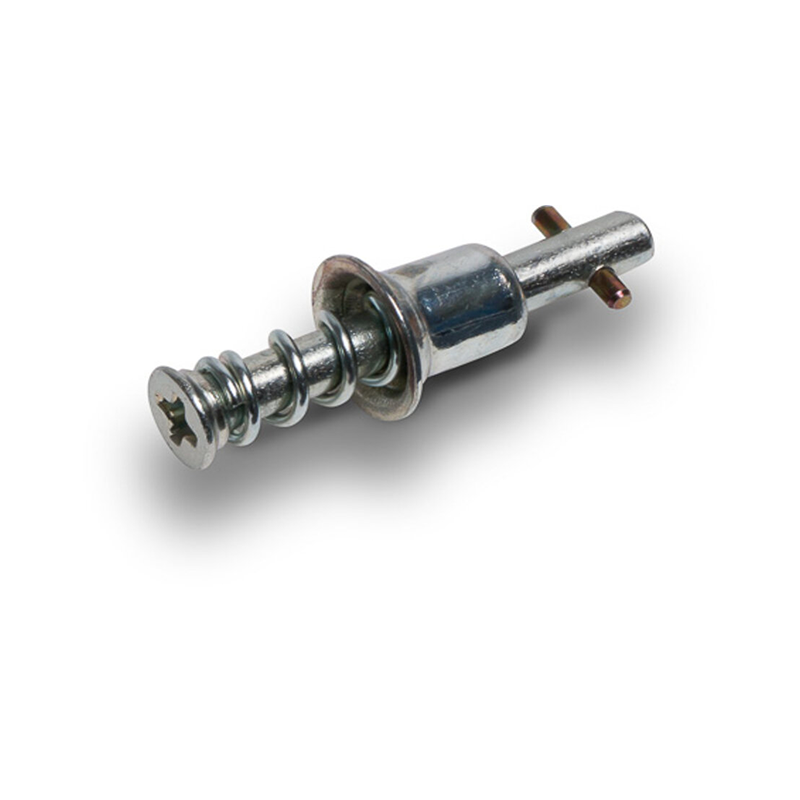

Locking bolt, steel, electro zinc plated surface, shaft length=17,2mm, clamping width=4,5-5,25mm
MT106073
Locking bolt manufactured in steel with a electro zinc plated surface. The product has a shaft length of 17,2mm and a clamping width of 4,5-5,25 mm. We offer locking bolts, retaining washers, bottom parts and ciclips in many types and sizes, so please contact us if you cannot find what you are looking for.
Components
Locking bolt
Collar
Countersunk
Material type
Steel
Surface finish
Electro zinc plated
Series
410
Type
Crosshead
Diameter in mm
0
Height in mm
0
Klembredde, max. i mm
5.25
Klembredde, min. i mm
4.5
Closing distance
13.9
Plate thickness, max.
0
Shaft length
17.2
Tensile strenght, axial
0
Thickness in mm
0
Long description
Locking bolt manufactured in steel with a electro zinc plated surface. The product has a shaft length of 17,2mm and a clamping width of 4,5-5,25 mm. We offer locking bolts, retaining washers, bottom parts and ciclips in many types and sizes, so please contact us if you cannot find what you are looking for.
