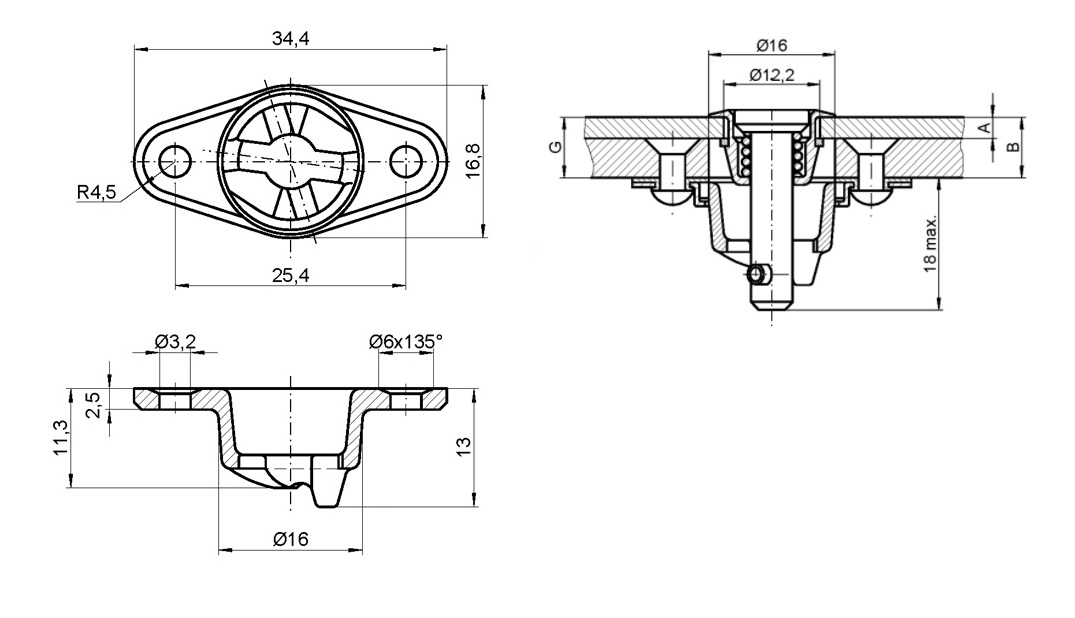

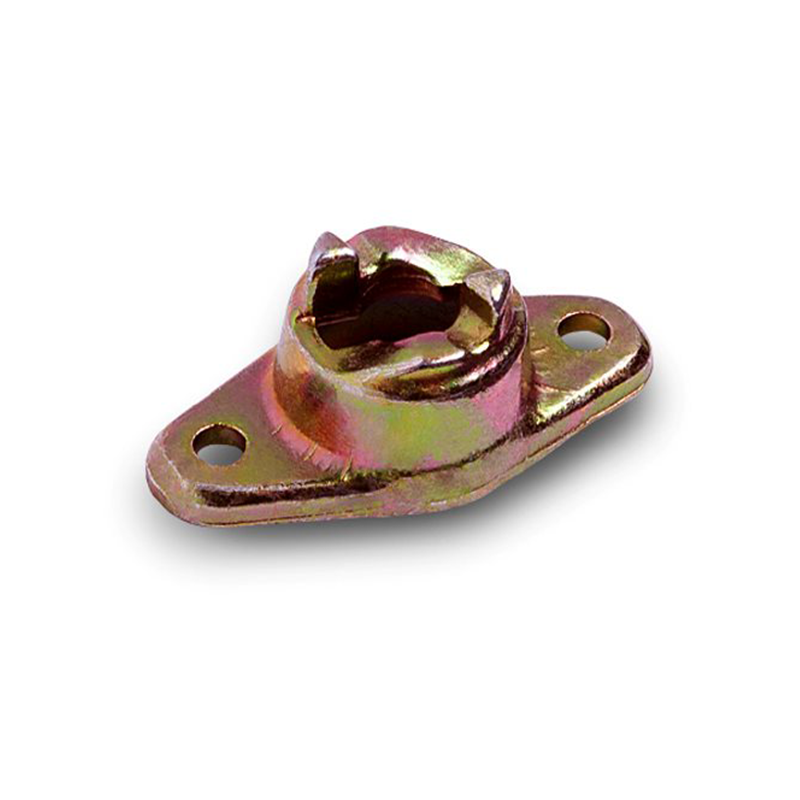

Bottom part, brass, electro zinc plated and yellow chromated surface, thickness=2,5, height=13
MT106565
Bottom part manufactured in brass with a electro zinc plated and yellow chromated surface.The thickness of the product is 2,5mm and the height is 13mm. We offer locking bolts, retaining washers, bottom parts and ciclips in many types and sizes, so please contact us if you cannot find what you are looking for.
Components
Bottom part
Material type
Brass
Mounting type
Screw mounting
Surface finish
Electro zinc plated and yellow chromated
Series
500
Diameter in mm
16
Height in mm
13
Clamping width, max. in mm
0
Clamping width, min. in mm
0
Plate thickness max.
0
Tensile strenght, axial
0
Thickness in mm
2.5
Long description
Bottom part manufactured in brass with a electro zinc plated and yellow chromated surface.The thickness of the product is 2,5mm and the height is 13mm. We offer locking bolts, retaining washers, bottom parts and ciclips in many types and sizes, so please contact us if you cannot find what you are looking for.
