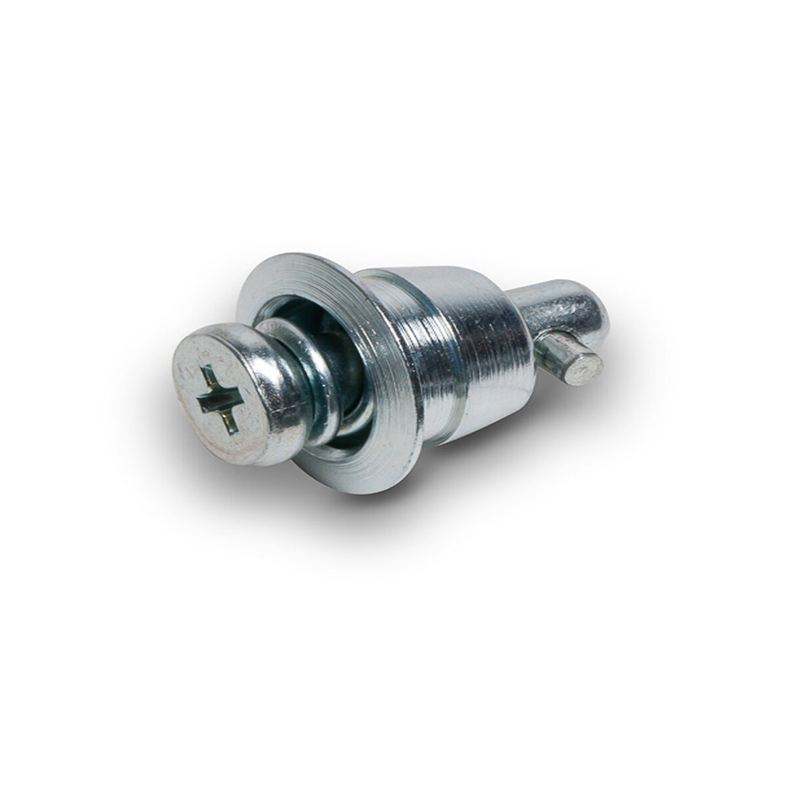

Locking bolt, steel, electro zinc plated surface, shaft length=17,9mm, clamping width=1-2,5mm
MT106522
Locking bolt manufactured in steel with a electro zinc plated surface. The product has a shaft length of 17,9mm and a clamping width of 1-2,5 mm. Notice that clamping width is 1 - 1,75mm, if the locking bolt is paired with 500-VU-BW-NS or 500-VU-SB-NS bottom parts and clamping width is 1,75 - 2,5mm, if paired with 500-VU-SR-NS or 500-VU-BW-PS. We offer locking bolts, retaining washers, bottom parts and ciclips in many types and sizes, so please contact us if you cannot find what you are looking for.
Components
Locking bolt
Collar
Normal
Material type
Steel
Surface finish
Electro zinc plated
Series
500
Type
Crosshead
Diameter in mm
0
Height in mm
0
Clamping width, max. in mm
2.5
Clamping width, min. in mm
1
Closing distance
11.45
Plate thickness max.
2
Shaft length
17.9
Tensile strenght, axial
0
Thickness in mm
0
Long description
Locking bolt manufactured in steel with a electro zinc plated surface. The product has a shaft length of 17,9mm and a clamping width of 1-2,5 mm. Notice that clamping width is 1 - 1,75mm, if the locking bolt is paired with 500-VU-BW-NS or 500-VU-SB-NS bottom parts and clamping width is 1,75 - 2,5mm, if paired with 500-VU-SR-NS or 500-VU-BW-PS. We offer locking bolts, retaining washers, bottom parts and ciclips in many types and sizes, so please contact us if you cannot find what you are looking for.
