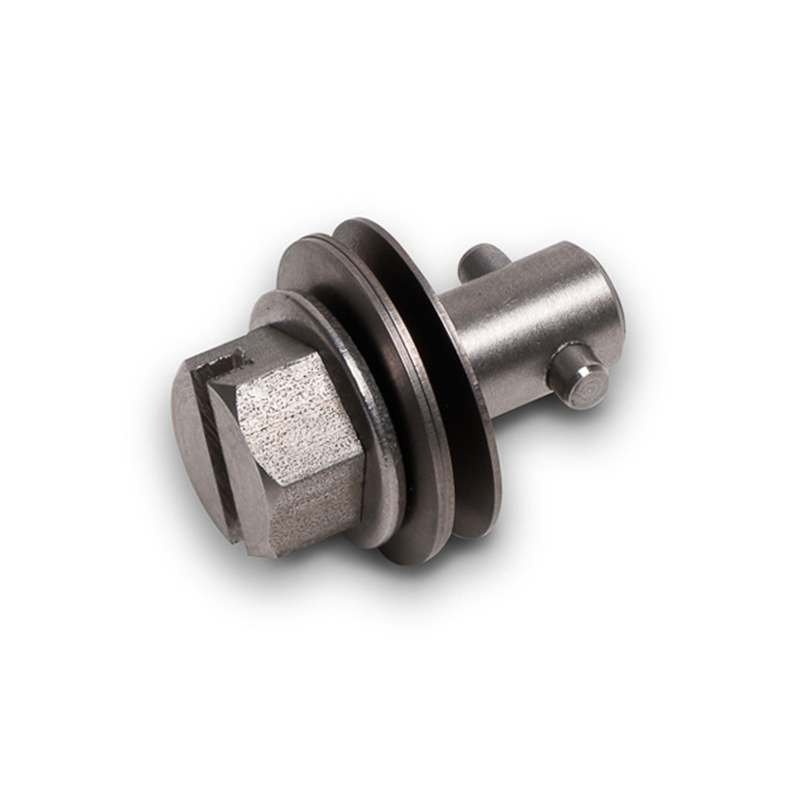

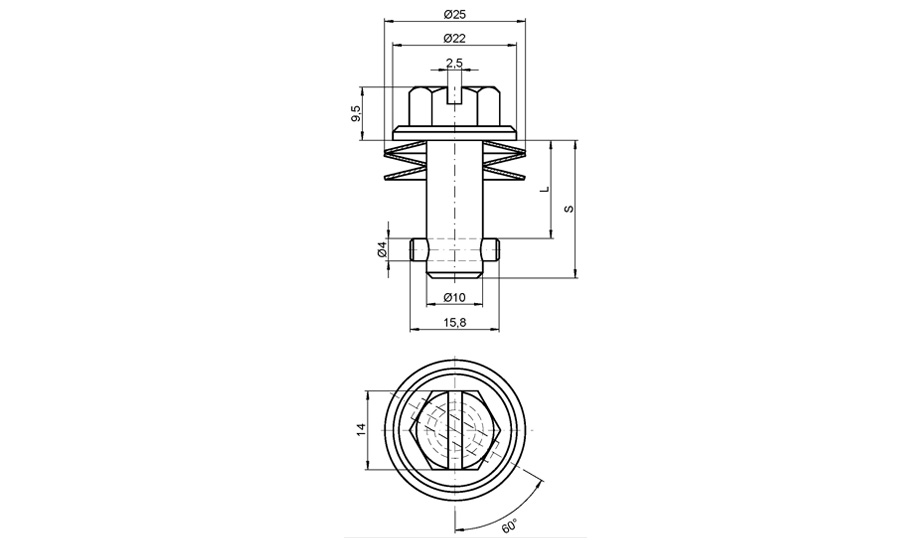

Locking bolt, stainless steel, untreated surface, shaft length=22,5mm, clamping width=0,55-5,55mm
MT108455
Locking bolt manufactured in stainless steel with a untreated surface. The product has a shaft length of 22,5mm and a clamping width of 0,55-5,55 mm. Notice that clamping width is 0,55 - 1,55mm, if the locking bolt is paired with 800-VU-SB-NS bottom part and clamping width is 4,55 - 5,55mm, if paired with 800-VU-NS or 800-VU-PS. We offer locking bolts, retaining washers, bottom parts and ciclips in many types and sizes, so please contact us if you cannot find what you are looking for.
Components
Locking bolt
Collar
Normal
Material type
Stainless steel
Series
800
Type
Hexagon 14 with slot
Diameter in mm
0
Height in mm
0
Klembredde, max. i mm
5.55
Klembredde, min. i mm
0.55
Closing distance
14.95
Plate thickness, max.
0
Shaft length
22.5
Tensile strenght, axial
7000
Thickness in mm
0
Long description
Locking bolt manufactured in stainless steel with a untreated surface. The product has a shaft length of 22,5mm and a clamping width of 0,55-5,55 mm. Notice that clamping width is 0,55 - 1,55mm, if the locking bolt is paired with 800-VU-SB-NS bottom part and clamping width is 4,55 - 5,55mm, if paired with 800-VU-NS or 800-VU-PS. We offer locking bolts, retaining washers, bottom parts and ciclips in many types and sizes, so please contact us if you cannot find what you are looking for.
