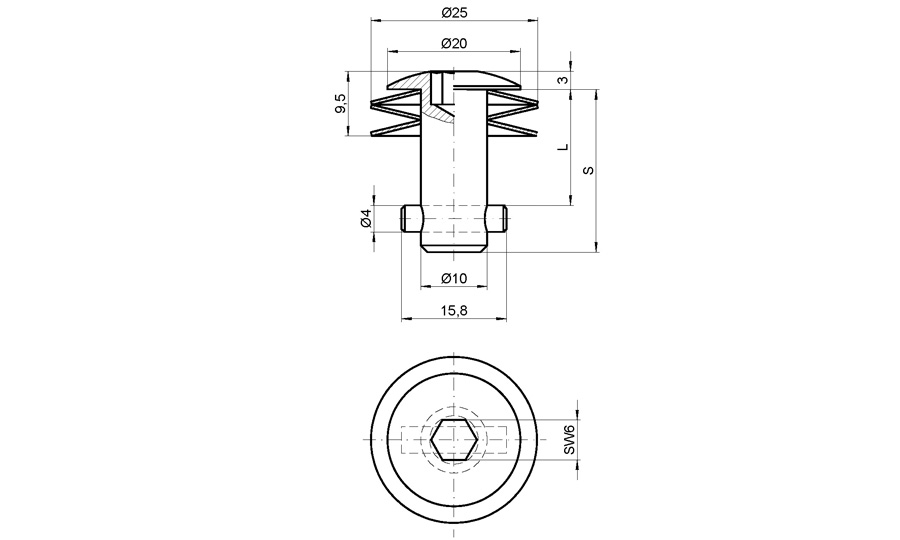

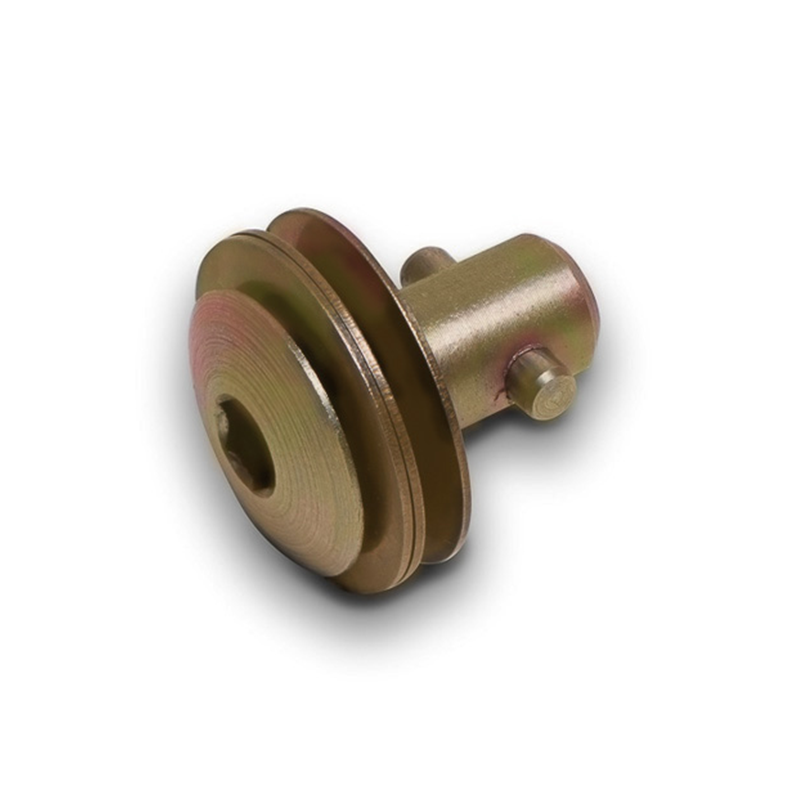

Locking bolt, steel, electro zinc plated and yellow chromated surface, shaft length=29,2mm, clamping width=5,8-10,8mm
MT108302
Locking bolt manufactured in steel with a electro zinc plated and yellow chromated surface. The product has a shaft length of 29,2mm and a clamping width of 5,8-10,8 mm. Notice that clamping width is 5,8 - 6,8mm, if the locking bolt is paired with 800-VU-SB-NS and clamping width is er 9,8 - 10,8mm, if paired with 800-VU-NS or 800-VU-PS. We offer locking bolts, retaining washers, bottom parts and ciclips in many types and sizes, so please contact us if you cannot find what you are looking for.
Components
Locking bolt
Collar
Normal
Material type
Steel
Surface finish
Electro zinc plated and yellow chromated
Series
800
Type
Hexagon female SW6
Diameter in mm
0
Height in mm
0
Clamping width, max. in mm
10.8
Clamping width, min. in mm
5.8
Closing distance
20.2
Plate thickness max.
0
Shaft length
29.2
Tensile strenght, axial
10000
Thickness in mm
0
Long description
Locking bolt manufactured in steel with a electro zinc plated and yellow chromated surface. The product has a shaft length of 29,2mm and a clamping width of 5,8-10,8 mm. Notice that clamping width is 5,8 - 6,8mm, if the locking bolt is paired with 800-VU-SB-NS and clamping width is er 9,8 - 10,8mm, if paired with 800-VU-NS or 800-VU-PS. We offer locking bolts, retaining washers, bottom parts and ciclips in many types and sizes, so please contact us if you cannot find what you are looking for.
