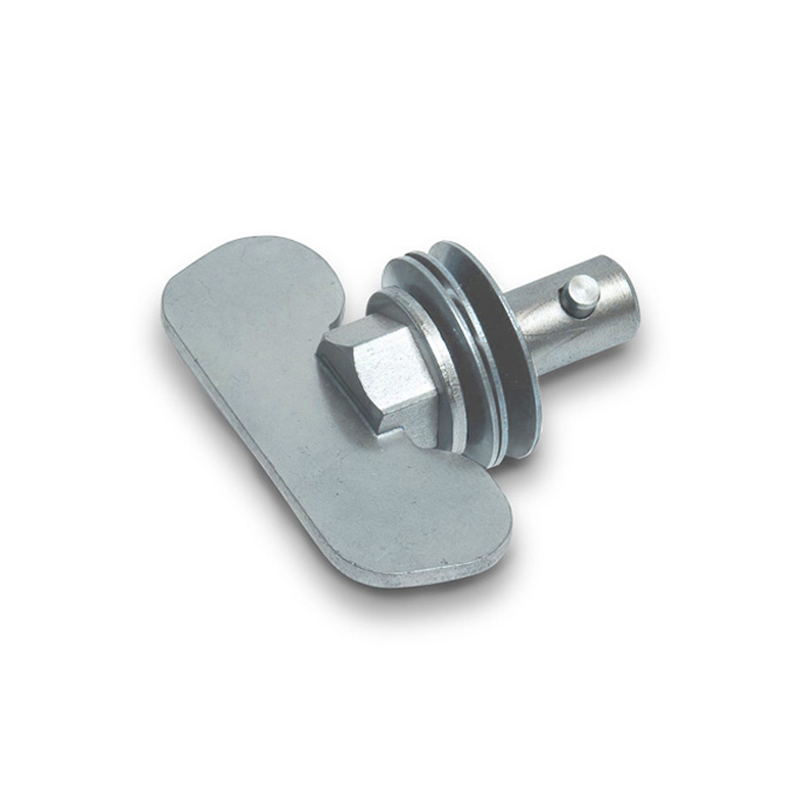

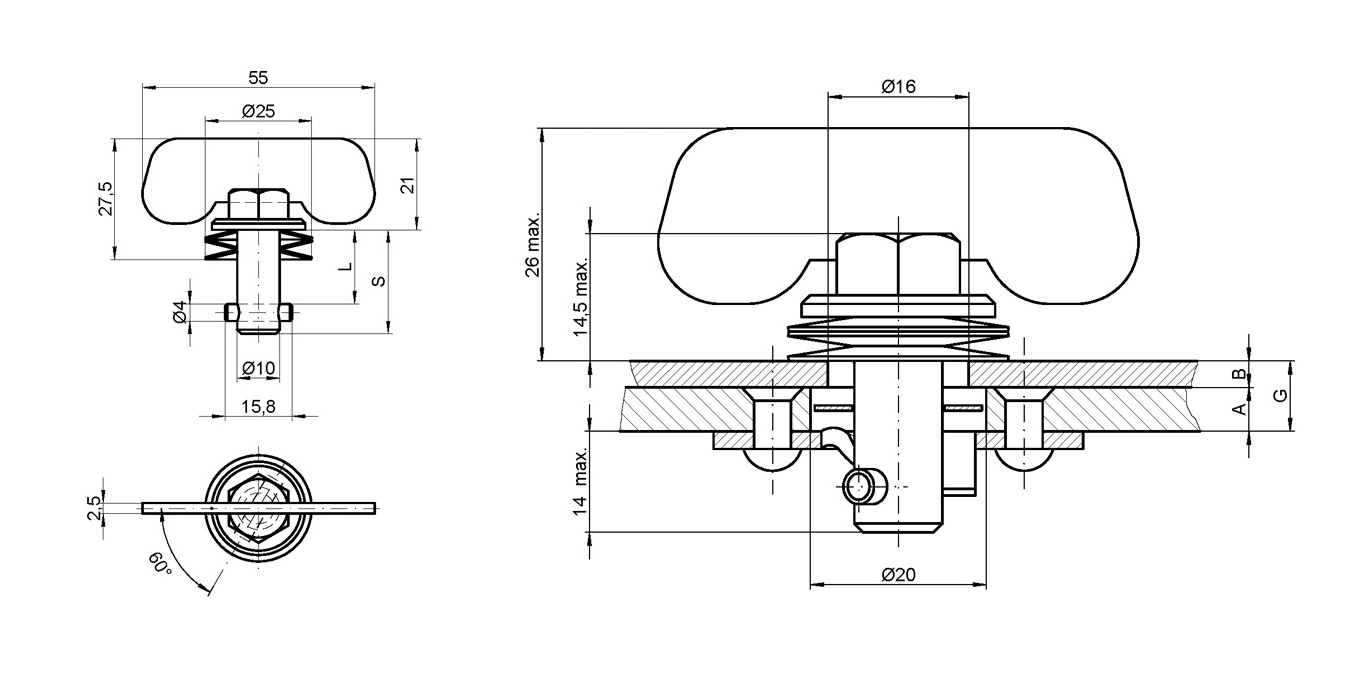

Locking bolt, steel, electro zinc plated surface, shaft length=24,7mm, clamping width=1,3-6,3mm
MT108467
Locking bolt manufactured in steel with a electro zinc plated surface. The product has a shaft length of 24,7mm and a clamping width of 1,3-6,3 mm. Notice that clamping width is 1,3 - 2,3mm, if the locking bolt is paired with 800-VU-SB-NS bottom part and clamping width is 5,3 - 6,3mm, if paired with 800-VU-NS or 800-VU-PS. We offer locking bolts, retaining washers, bottom parts and ciclips in many types and sizes, so please contact us if you cannot find what you are looking for.
Components
Locking bolt
Collar
Normal
Material type
Steel
Surface finish
Electro zinc plated
Series
800
Type
Wing handle
Diameter in mm
0
Height in mm
0
Clamping width, max. in mm
6.3
Clamping width, min. in mm
1.3
Closing distance
15.7
Plate thickness max.
0
Shaft length
24.7
Tensile strenght, axial
10000
Thickness in mm
0
Long description
Locking bolt manufactured in steel with a electro zinc plated surface. The product has a shaft length of 24,7mm and a clamping width of 1,3-6,3 mm. Notice that clamping width is 1,3 - 2,3mm, if the locking bolt is paired with 800-VU-SB-NS bottom part and clamping width is 5,3 - 6,3mm, if paired with 800-VU-NS or 800-VU-PS. We offer locking bolts, retaining washers, bottom parts and ciclips in many types and sizes, so please contact us if you cannot find what you are looking for.
