Anti-rotation device, die-cast zinc, offset=-2
MT100634

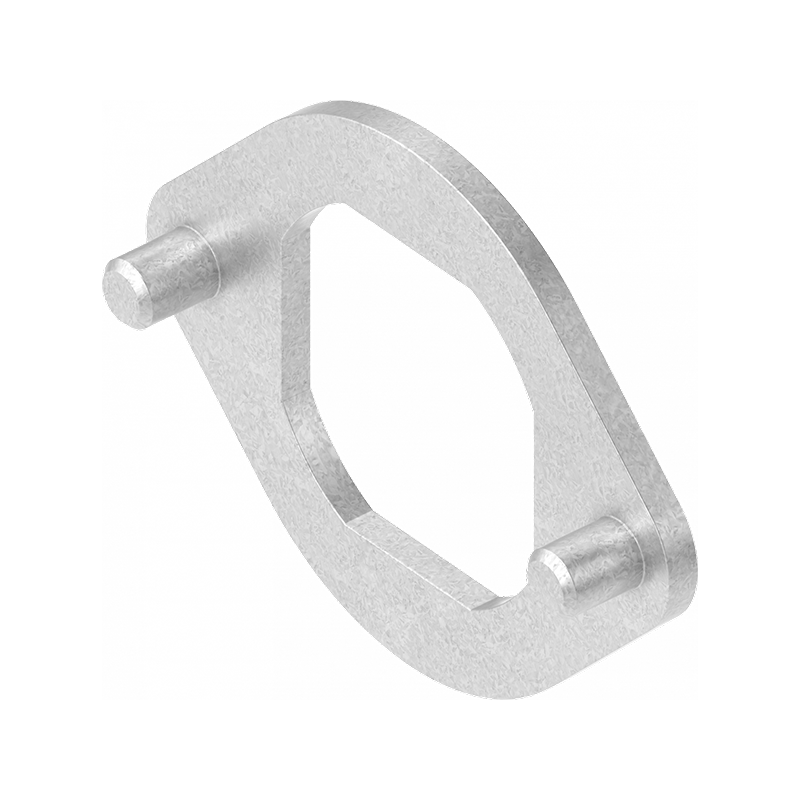

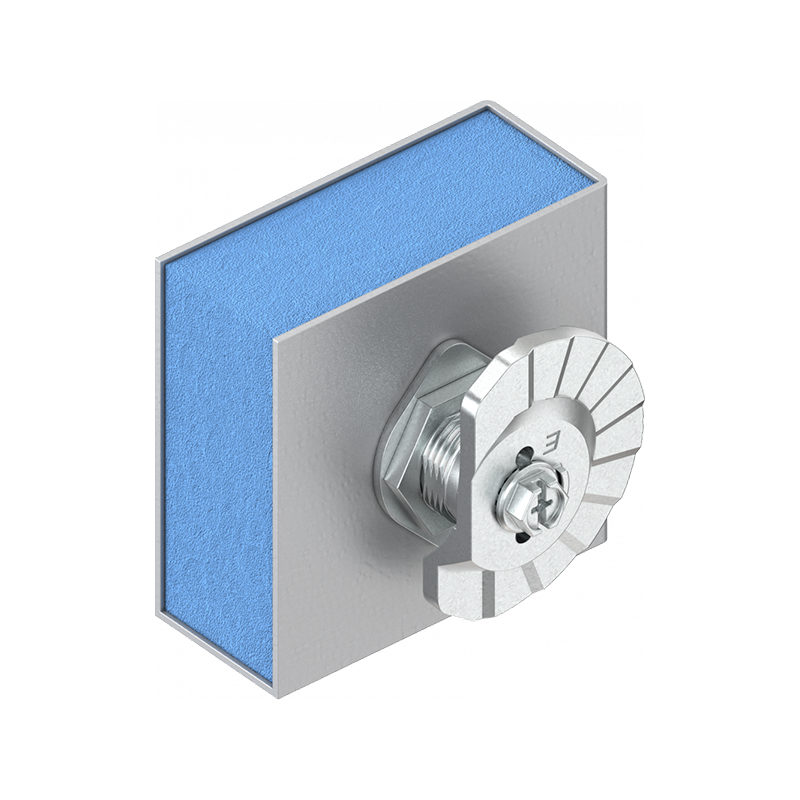

Anti-rotation device manufactured in die-cast zinc. Off-set height is -2mm. If mounted in front of the door, reduces the H-measure by 2mm. If mounted under the door, won't change the the H-measure but reduces the plate thickness (Ts) by 2mm. For use with 1000 series housings. We offer many different components and accessories in our large range of products. If you cannot find the right product, then please contact us so we can help you.
Components
Anti-rotation device
Material type
Die-cast zinc
Surface finish
Electro zinc plated

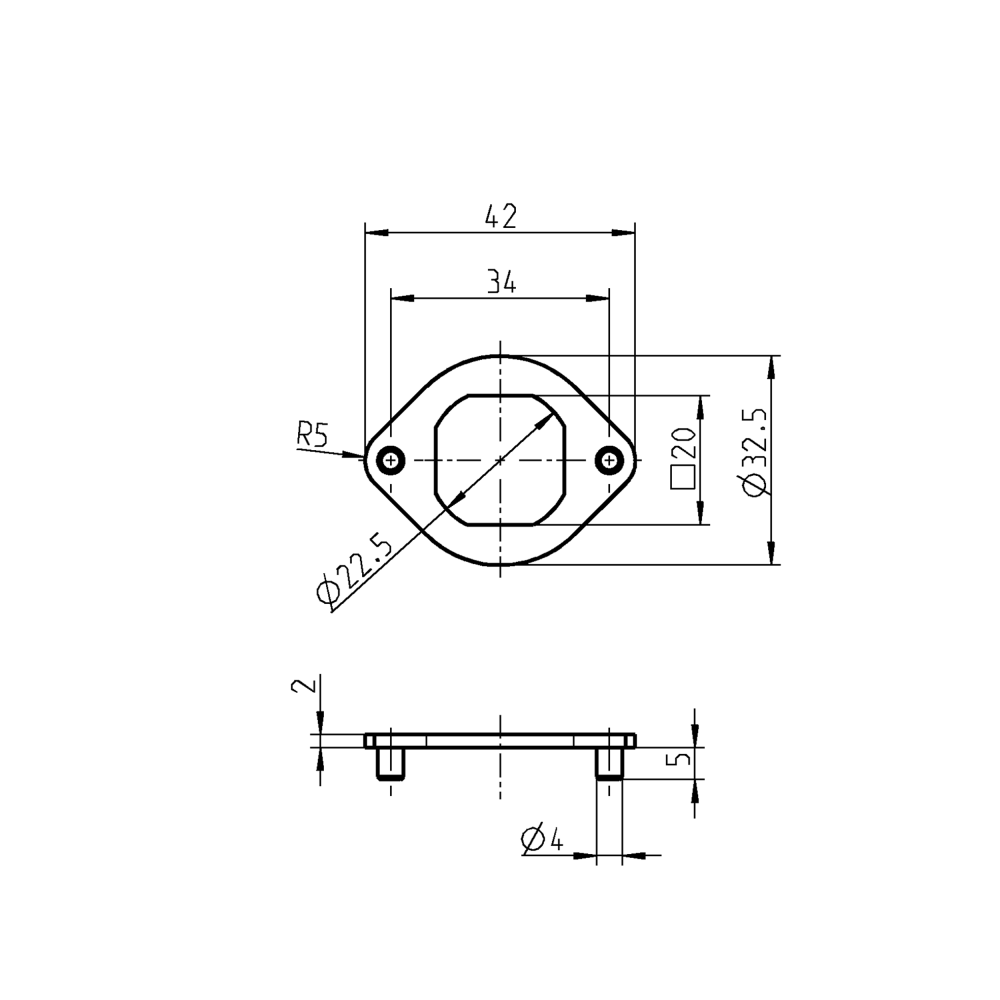

Offset height in mm
-2
Thickness in mm
2
Long description
Anti-rotation device manufactured in die-cast zinc. Off-set height is -2mm. If mounted in front of the door, reduces the H-measure by 2mm. If mounted under the door, won't change the the H-measure but reduces the plate thickness (Ts) by 2mm. For use with 1000 series housings. We offer many different components and accessories in our large range of products. If you cannot find the right product, then please contact us so we can help you.
Product data
