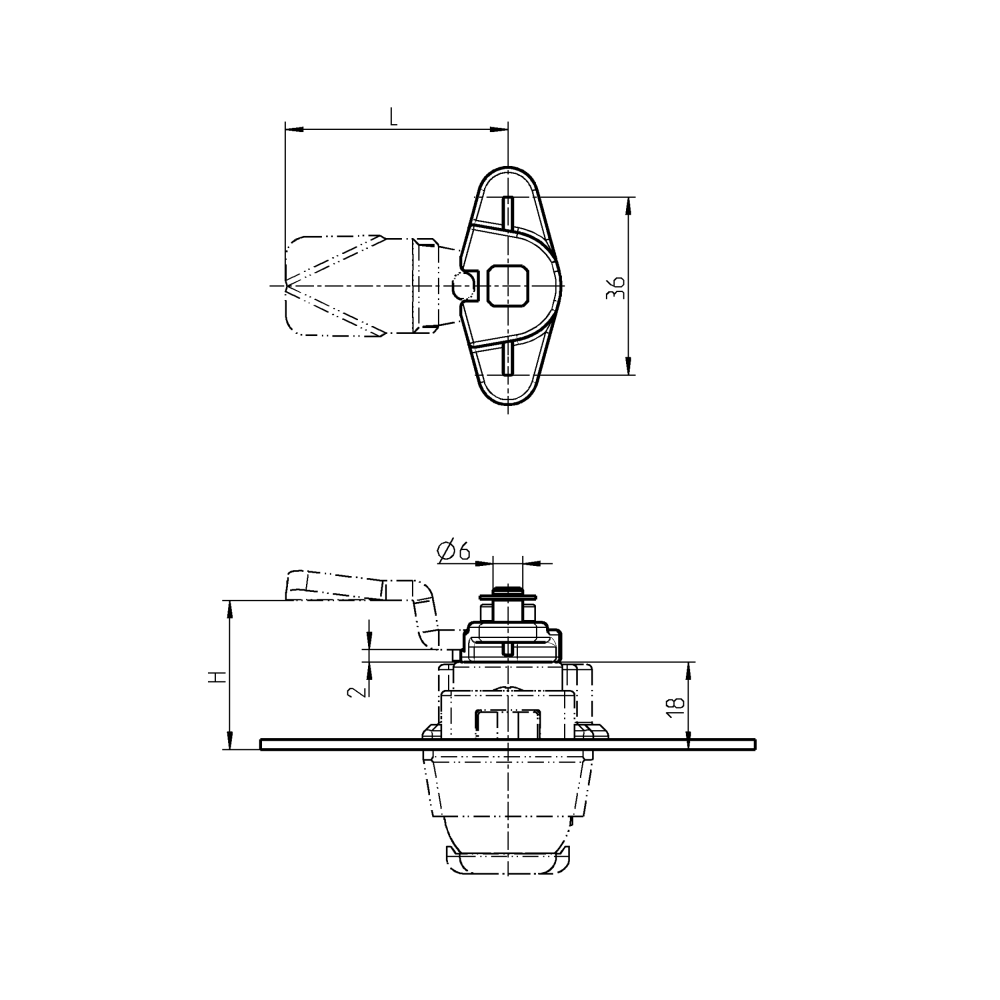

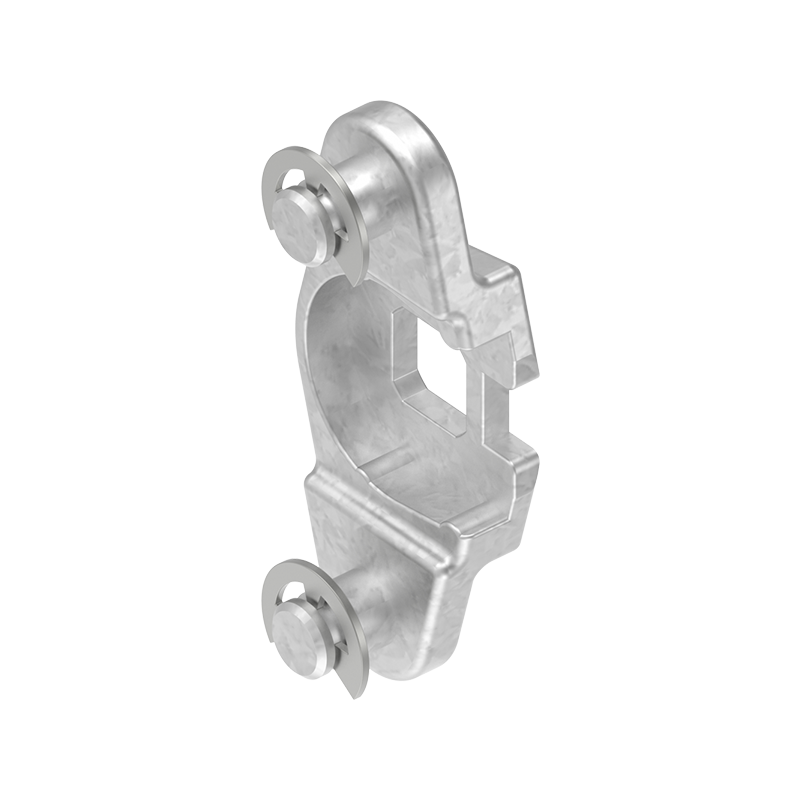

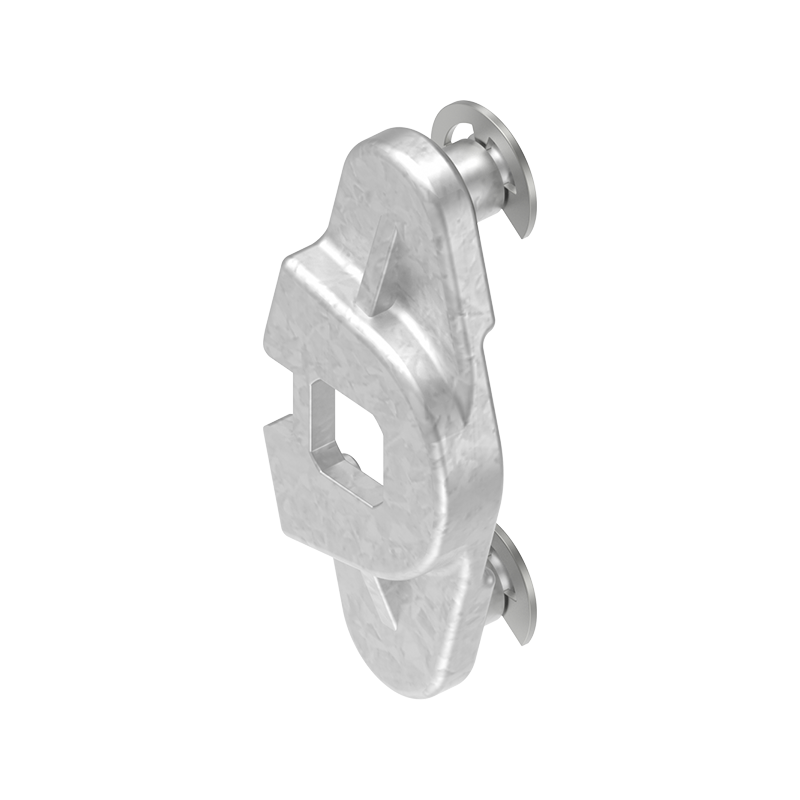

Rod control adapter for cam, die-cast zinc, offset=2, vandring=18

MT102940

Rod control adapter for cam manufactured in die-cast zinc. Off-set height is 2mm. The stroke is maximum 18mm. For use with 1000 series cams. Increases the H-measure by 2mm. 2 circlips are included. We offer many different components and accessories in our large range of products. If you cannot find the right product, then please contact us so we can help you.

Axis diameter in mm
6
Components
Rod control adapter for cam
Material type
Die-cast zinc
Mounting type
Below cam
Surface finish
Electro zinc plated
Stroke
18
Diameter in mm
0
Height in mm
0
Length in mm
0
Offset height in mm
2
Plate thickness min.
0
Plate thickness max.
0
Thickness in mm
0
Long description

Rod control adapter for cam manufactured in die-cast zinc. Off-set height is 2mm. The stroke is maximum 18mm. For use with 1000 series cams. Increases the H-measure by 2mm. 2 circlips are included. We offer many different components and accessories in our large range of products. If you cannot find the right product, then please contact us so we can help you.
